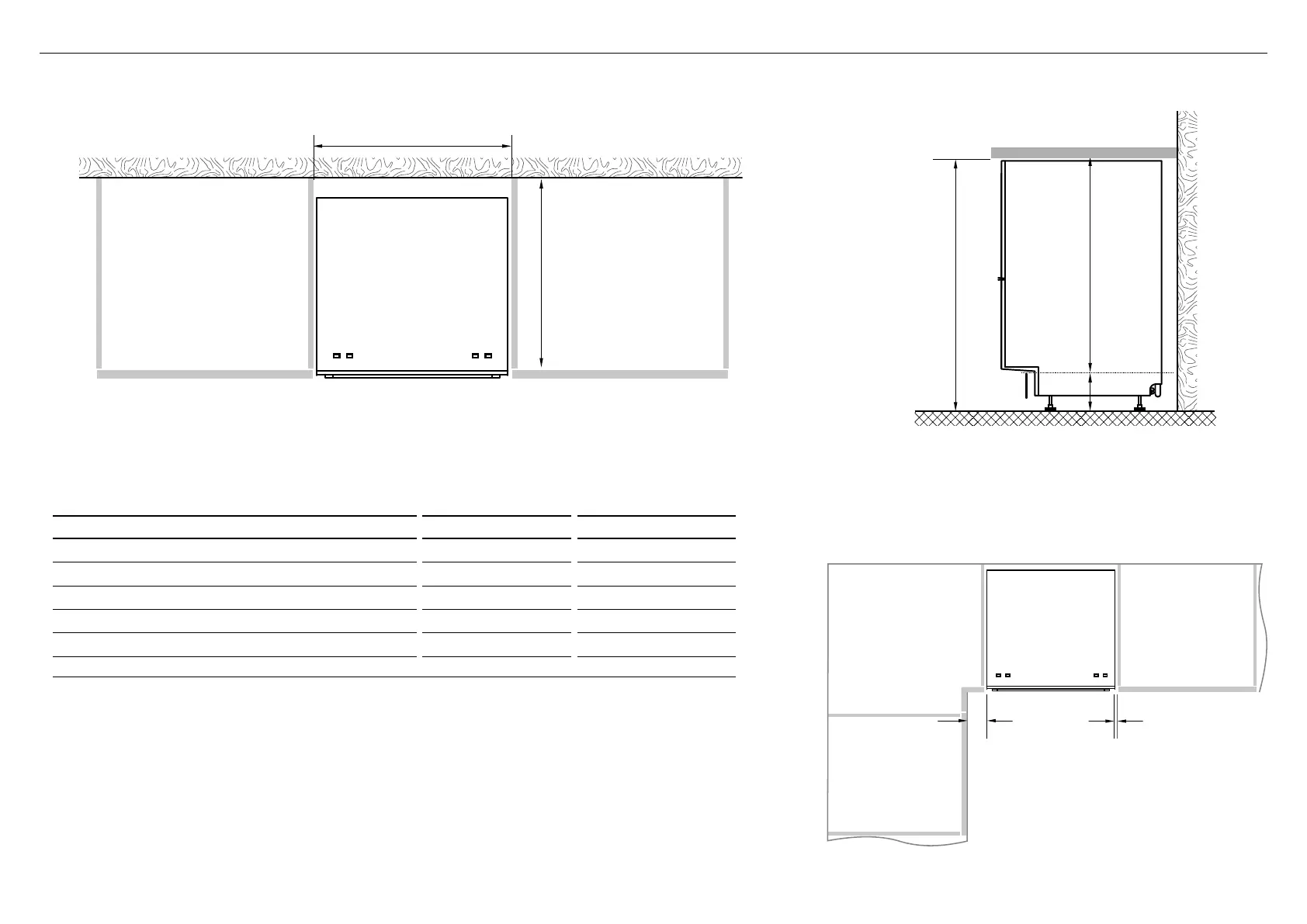

5 CABINETRY DIMENSIONS
Minimum clearances from adjacent cabinetry
STANDARD
HEIGHT
MODELS
TALL
HEIGHT
MODELS
DD24DI
DD24DTI
DD24DHTI
CABINETRY DIMENSIONS INCHES (MM) INCHES (MM)
O
Inside height of cavity* min. 32 5/16” (820) min. 34” (864)
P
Inside width of cavity 23 5/8” (600) 23 5/8” (600)
Q
Inside depth of cavity min. 22 1/16” (560) min. 22 1/16” (560)
R
Recommended height of adjacent cabinet space 30” (762) 30” (762)
S
Height of toekick space*
2 3/8–4 3/4” (60-120) 3 15/16”–6 5/16” (100-160)
* depending on adjustment of leveling feet
min. 1/2” (13 mm)
clearance from a
corner cupboard
min. 1/16” (2 mm)
clearance
to adjacent
cupboard door
Bracket slots
PROFILE
PLAN
P
Q
O
R
S
