13

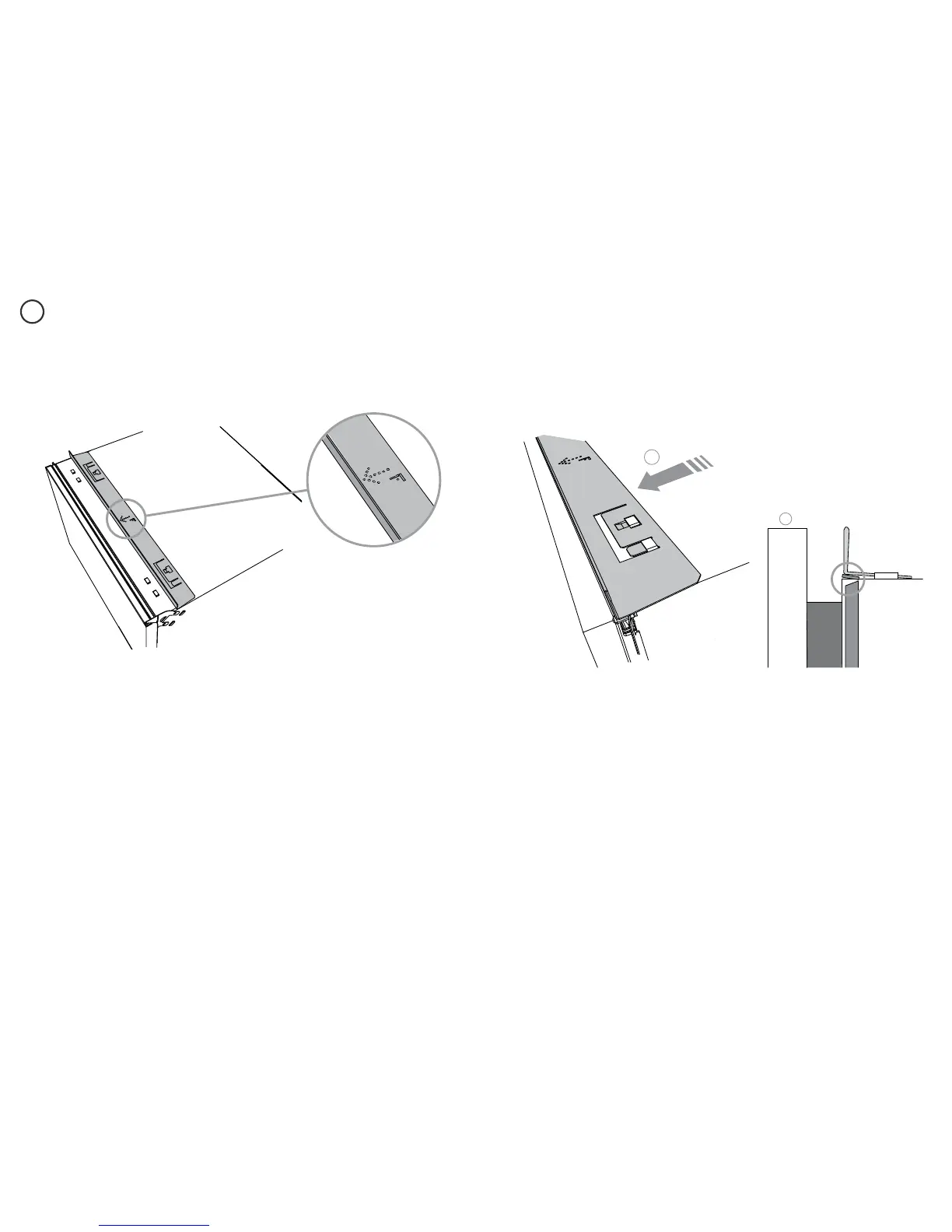

TALL HEIGHT DESIGNER & INTEGRATED MODELS FOR 480 mm CAVITY ONLY - ATTACH CAVITY BRACKET
9
The enclosed cavity bracket is tted before installation in order to conceal the gap at the top of the cavity left after installation.
Ensure the cavity panel
bracket is positioned so
that the “F” arrow is
pointing towards the front
of the chassis.
Firmly push the bracket so that
the prongs engage with the top
tabs and it clicks into place.
Ensure the top trim seal
is facing forward after
attaching the bracket.
Important!
Ensure the prongs have not been
driven down into the chassis as
this will damage the lid below.
12
