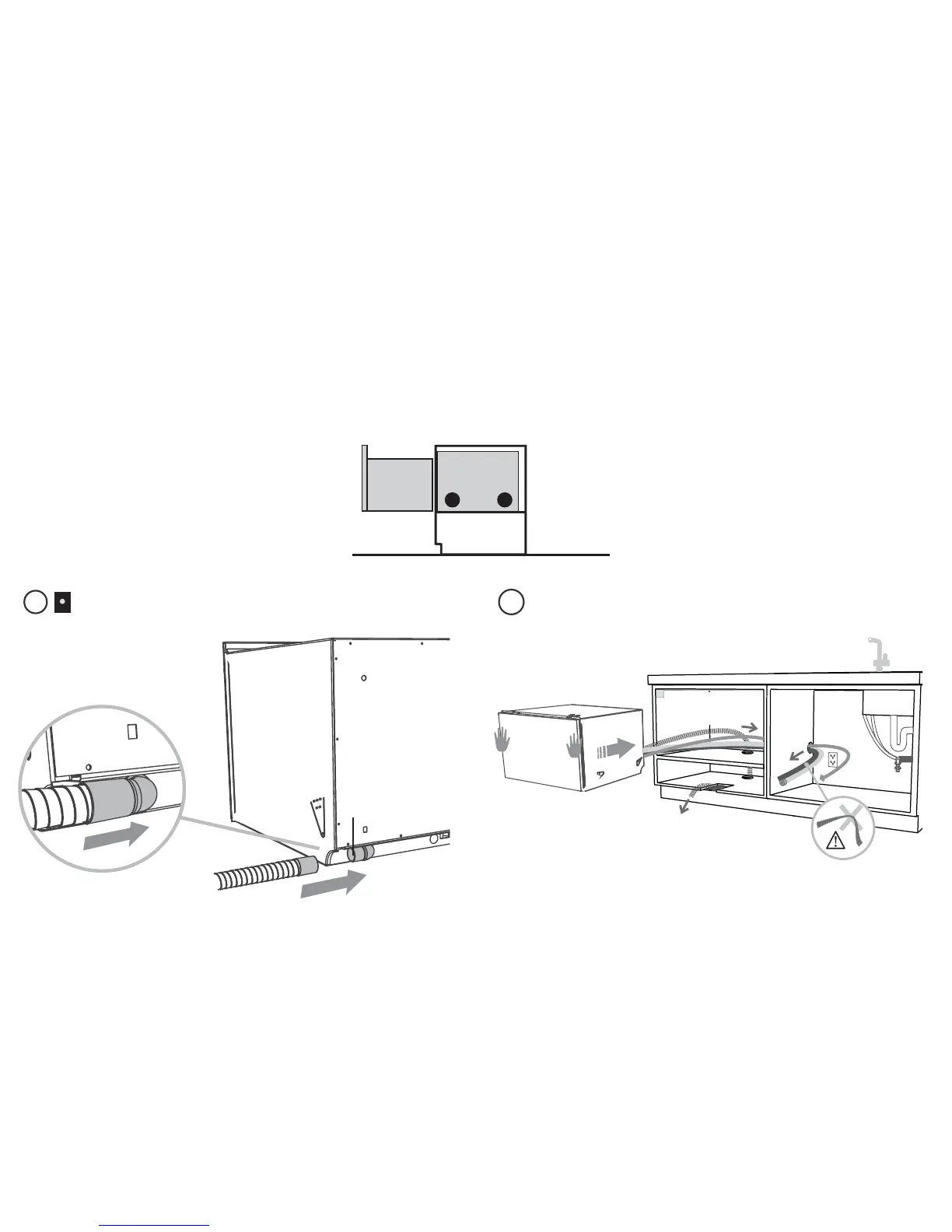

PULL THROUGH HOSES & MOVE INTO THE CAVITY
Fitted Elbow
Check that the fitted elbow is
rotated left or right (depending
on the direction of the routing),
then ensure the venting hose is
securely attached to it.
vent either
through
same cabinet
or adjacent
cabinet as per
step 7b or 7c
ALTERNATIVE METHOD (b) - SECURE BY DRAWER REMOVAL
INTEGRATED MODELS WITH REMOTE ONLY -
ATTACH VENTING HOSE
As you push product in, pull through hoses and
cord, ensuring they don’t get kinked or twisted.
Important!
If product cannot be pushed in far enough, pull
out again and rearrange hoses and cord. Do not
use excessive force, as doing so may squash the
hoses and lead to incorrect operation.
Vent Hose
(Integrated models
with remote (NZAU)
only)
To Next Page
