599447A
47

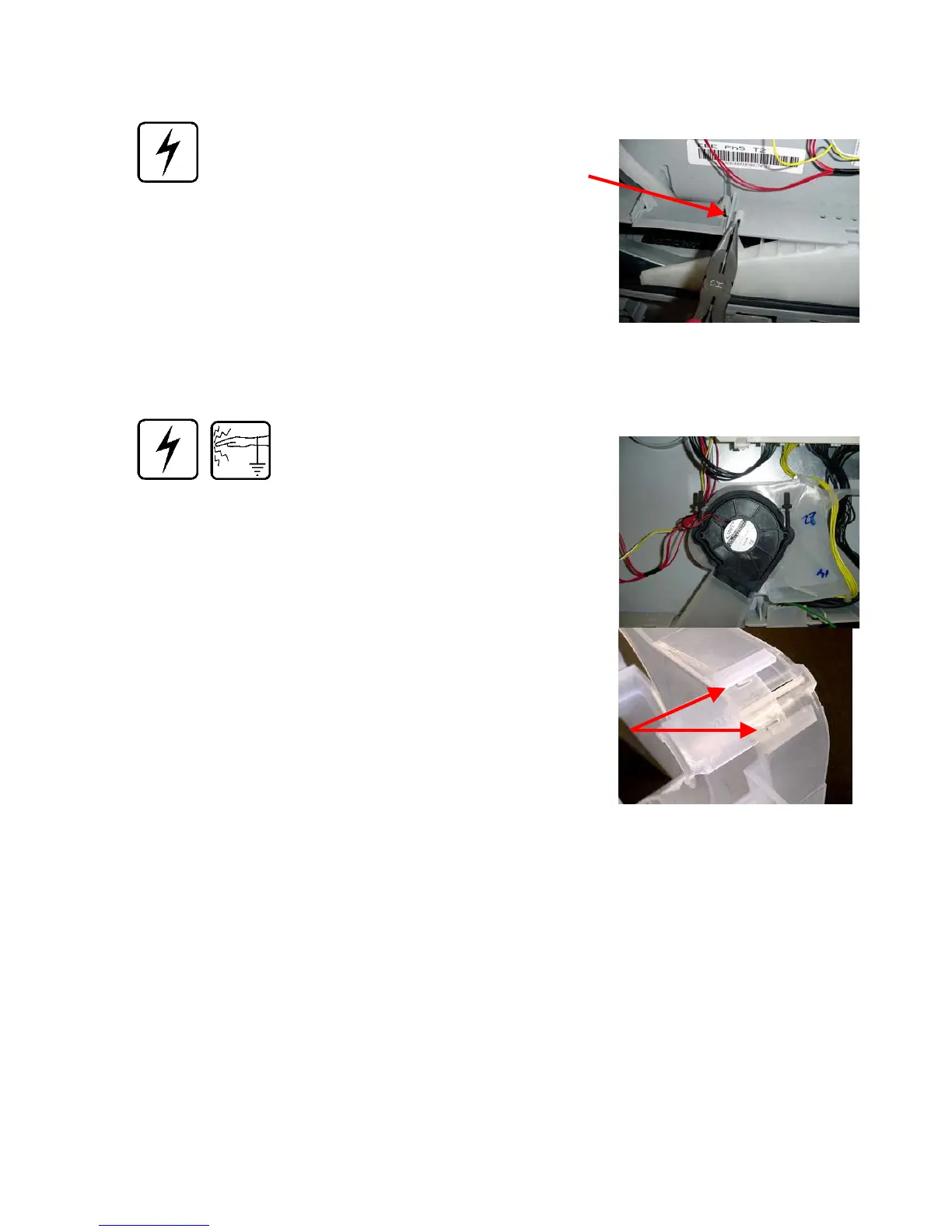

8.6 Drying Duct –top tub only
8.6.1 Open the drawer and remove the drawer front (refer Section
8.1).
8.6.2 Use pliers to gently release the plastic clips while pulling the duct
down.
8.7 Drying Fan and Flap Valve
8.7.1 Remove the drawer front (refer Section
8.1).
8.7.2 With a small bladed screwdriver, carefully release the small plastic
clips holding the rinse aid indication LED in place in the dispenser
and remove the LED.
8.7.3 Release the rubber tabs securing the fan.
8.7.4 Disconnect the wire harness from the electronic controller.
8.7.5 The drying fan will now come free.
8.7.6 Refit in reverse manner.
8.7.7 The fan housing flapper can be replaced by removing the cover and
lifting the flapper out of the housing.
8.7.8 To remove the cover, use a small screwdriver to depress the 2 clips
at the rear, and slide it forward.
