Fisher & Paykel DW60UC2X Instruction Manual

8
1
2
1
2
3
1
2
1
2
3

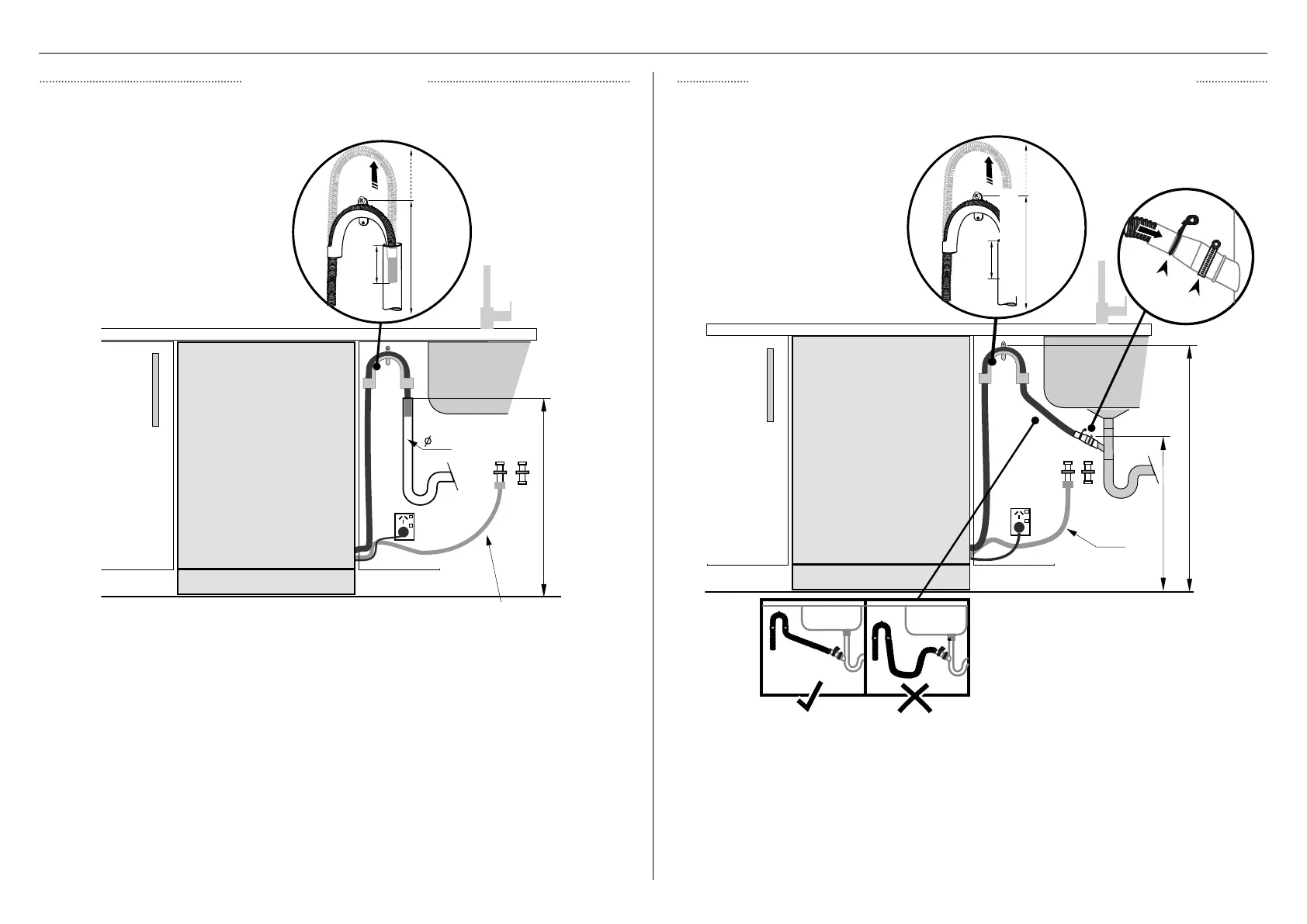

!1 PLUMBING AND DRAINAGE OPTIONS
If space is limited
for fixing, push
hose through drain
hose support
to required height
.
If space is limited for fixing,
push hose through drain hose
support to required height.
min. radius
200 mm
min. 750 mm
min. 500 mm
min. radius
200 mm
Installer to provide
drain hose joiner to suit
min. 15mm waste tee.
Ensure drain hose is routed
straight to joiner. Remove excess
drain hose material if necessary.
Do not shorten the inlet hose.
IMPORTANT!
Do not connect the drain hoses
to a Waste Disposal Unit, as this
type of connection may lead to a
blockage in the drain hoses.
750-882.5 mm
750-882.5 mm
750 - 882.5 mm
38mm
min.
120mm
Ø 38 MM STANDPIPE DRAIN HOSE JOINER ONTO SINK TRAP/WASTE TEE

Fisher & Paykel DW60UC2X Specifications

General

Brand	Fisher & Paykel
Model	DW60UC2X
Category	Dishwasher
Language	English
