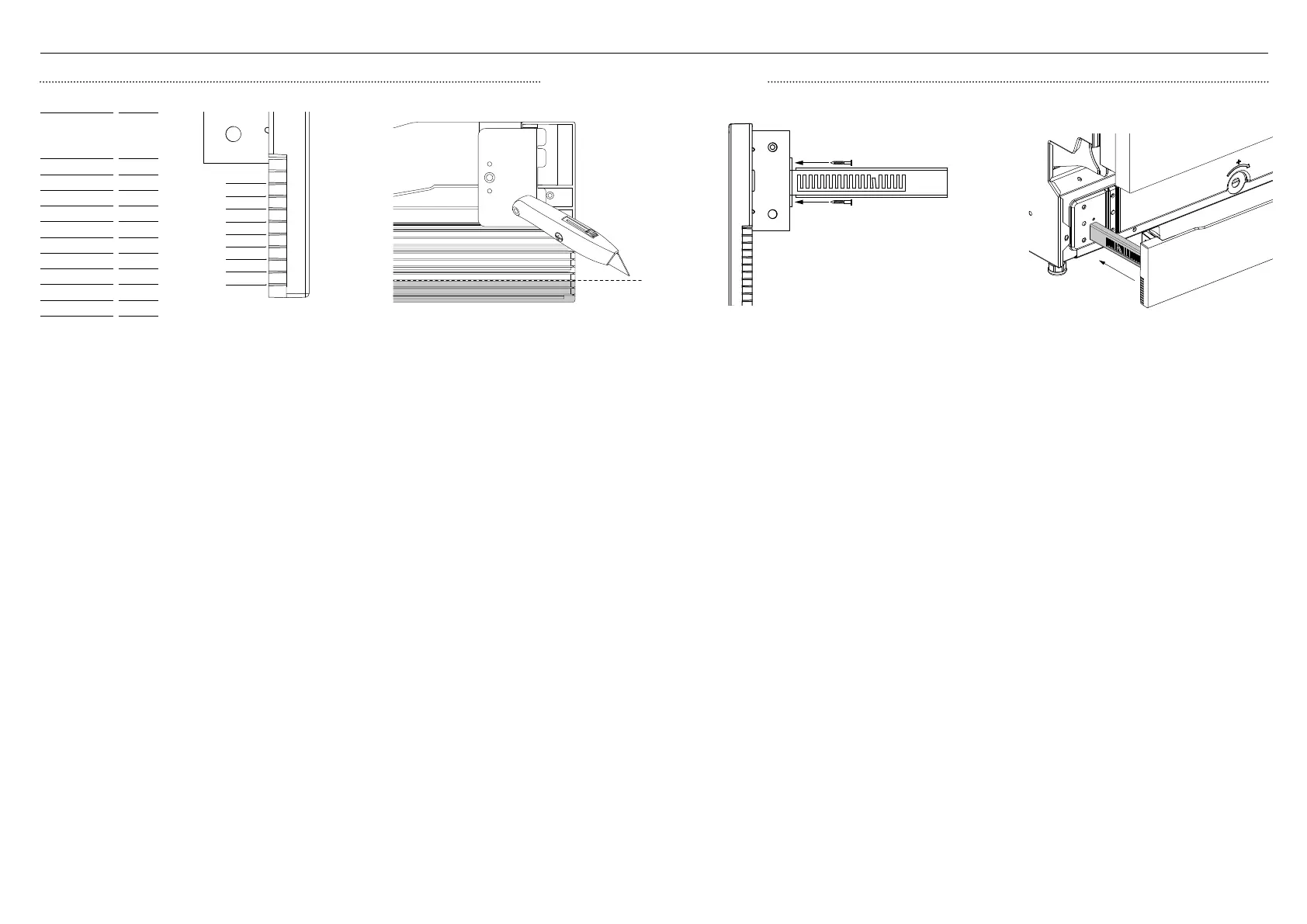

TOE KICK INSTALLATION OPTIONS
PRE-FINISHED TOE KICK
Measure the distance between the floor and
the base of the door to establish the toe kick
height. Refer to the above guide and mark
out the cut location.
Remove the brackets from the
product and secure to the toe kick
using Ø4 x 13mm screws. Slide
the toe kick into the spaces on
either side of the chassis and mark
the desired depth on the bracket.
Remove toe kick and, using a
screwdriver, bend the marked tabs
out on both brackets.
Carefully lay the toe kick face down
on a cutting surface and use a sharp
knife to score along the panel. Turn
over and score the other side before
gently snapping off the excess. A
file can be used to smooth off any
rough edges.
Slide toe kick firmly back into the
product to attach. The bent tabs will
prevent the toe kick receding into the
product further than desired.
Distance between
bottom of door
and floor (mm)
Cut
location
103 - 98
9
108 - 103
8
113 - 108
7
118 - 113
6
123 - 118
5
128 - 123
4
133 - 128
3
138 - 133
2
143 - 138
1
143+ N/A
9
8
6
4
7
5
3
2
1
Toe kick PROFILE VIEW
