Fisher & Paykel DW60UC2X Installation Guide

12
1
2
1
2
3
1
2
1
2
3

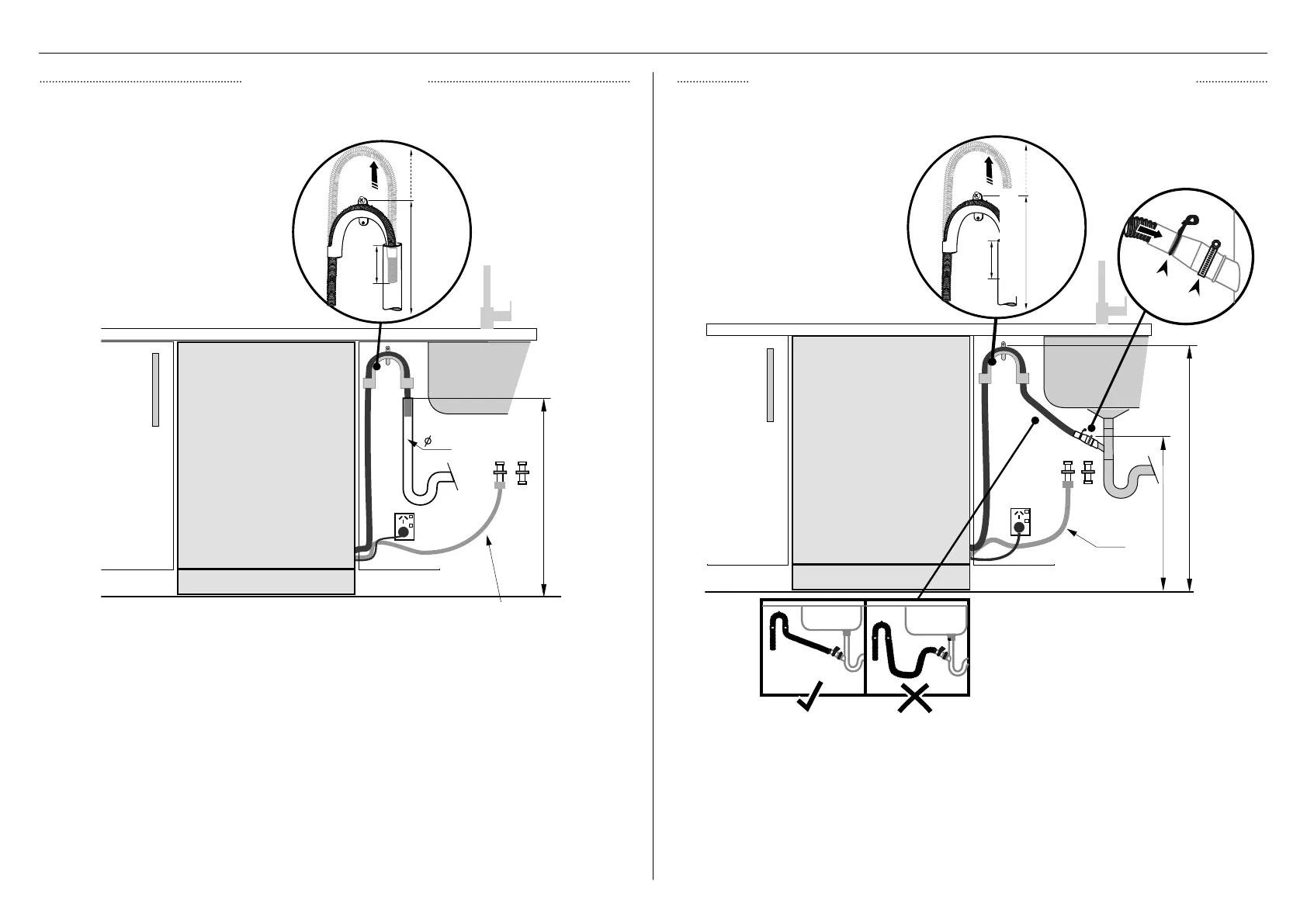

PLUMBING AND DRAINAGE OPTIONS
If space is limited for fixing,
push hose through drain hose
support to required height.
If space is limited for fixing,
push hose through drain hose
support to required height.
min. radius
200 mm
min. 750 mm
min. 500 mm
min. radius
200 mm
Installer to provide
drain hose joiner to suit
min. 15mm waste tee.
Ensure drain hose is routed
straight to joiner. Remove excess
drain hose material if necessary.
Do not shorten the inlet hose.
IMPORTANT!
Do not connect the drain hoses
to a Waste Disposal Unit, as this
type of connection may lead to a
blockage in the drain hoses.
Ensure any knock-outs or plugs in
drain connection have been drilled
out.
IMPORTANT!
Ensure that drain hose is installed as close to the
underside of the benchtop as possible. This will ensure
no waste re-enters the drain hose in the event of poor
flow or a blockage in the plumbing.
Ensure the drain hose does not extend into water retained
in the trap. An air gap is required to prevent waste water
from siphoning back into the tub.
750-882.5 mm
750-882.5 mm
750 - 882.5 mm
38mm
min.
120mm
Ø 38 MM STANDPIPE DRAIN HOSE JOINER ONTO SINK TRAP/WASTE TEE
