Fisher & Paykel DW60UC2X Installation Guide

5

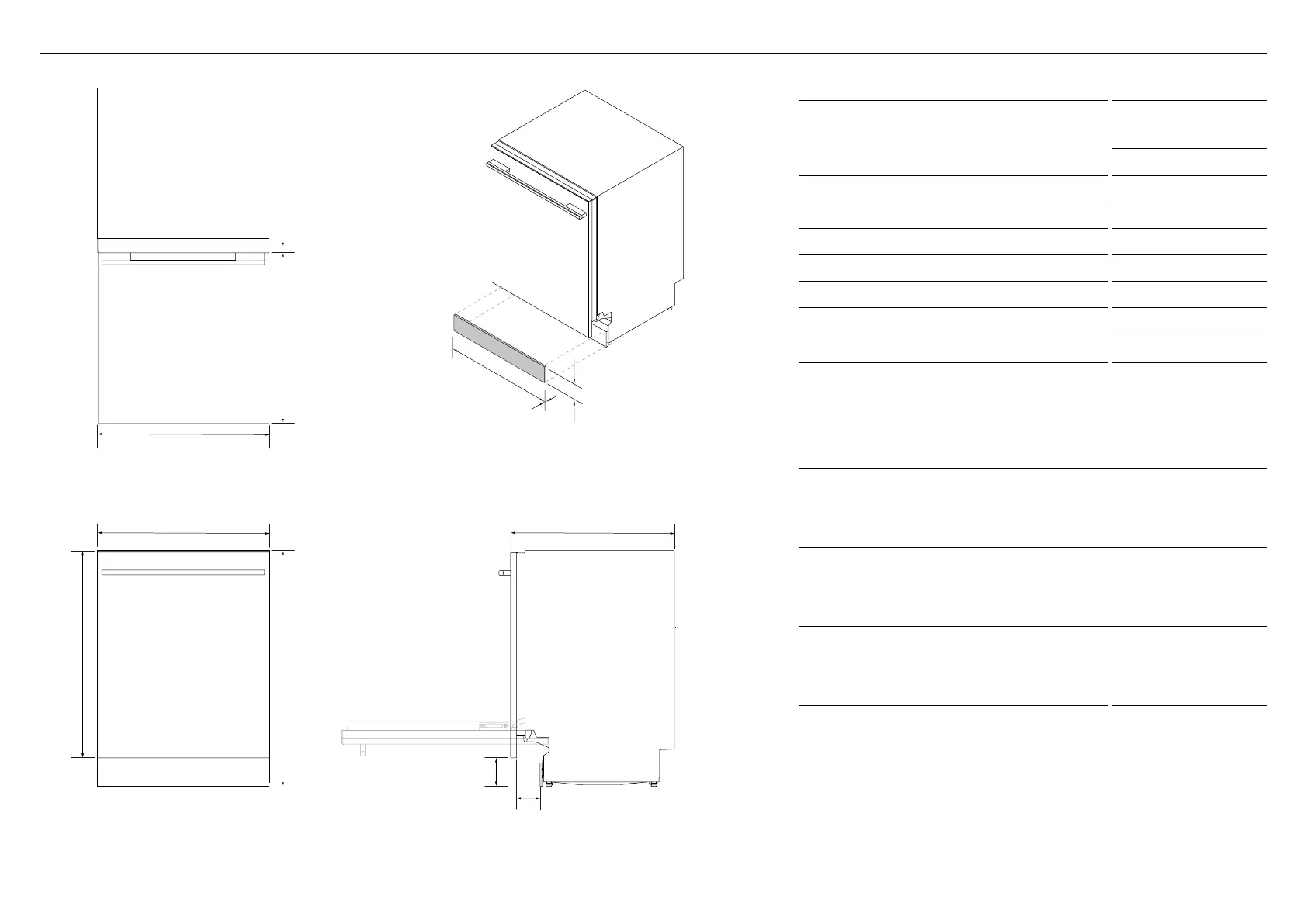

PRODUCT DIMENSIONS – DW60UD
PRODUCT DIMENSIONS
DW60UD MODELS
MM
A Overall height of product* 820 - 880
B Overall width of product** 598
C Overall depth of product 570
D Height of door 714
E Width of door 595
F Depth of outer door*** 18
G Height from floor to bottom of door 100 - 160
H Depth of open door 583
I Width of toe kick panel
z
Custom panel 596 - 605
z
Pre-finished panel 595
J Height of toe kick panel****
z
Custom panel 80 - 165
z
Pre-finished toe kick 82 - 127
K Depth of toe kick panel
z
Custom panel***** min. 16
z
Pre-finished toe kick 16
L Depth of toe kick******
z
Custom panel 0 - 73
z
Pre-finished toe kick 0 - 50
*depending on adjustment of levelling feet
**excluding side seals
***excluding handle
****depending on cabinetry dimensions
*****when using supplied 12mm screws
*****excluding door front and toe kick panels
PLAN
FRONT
ISOMETRIC
PROFILE
g
l
CB
e
A
d
h
i
f
k
j
