Fisher & Paykel DW60UC6B Installation Guide

4

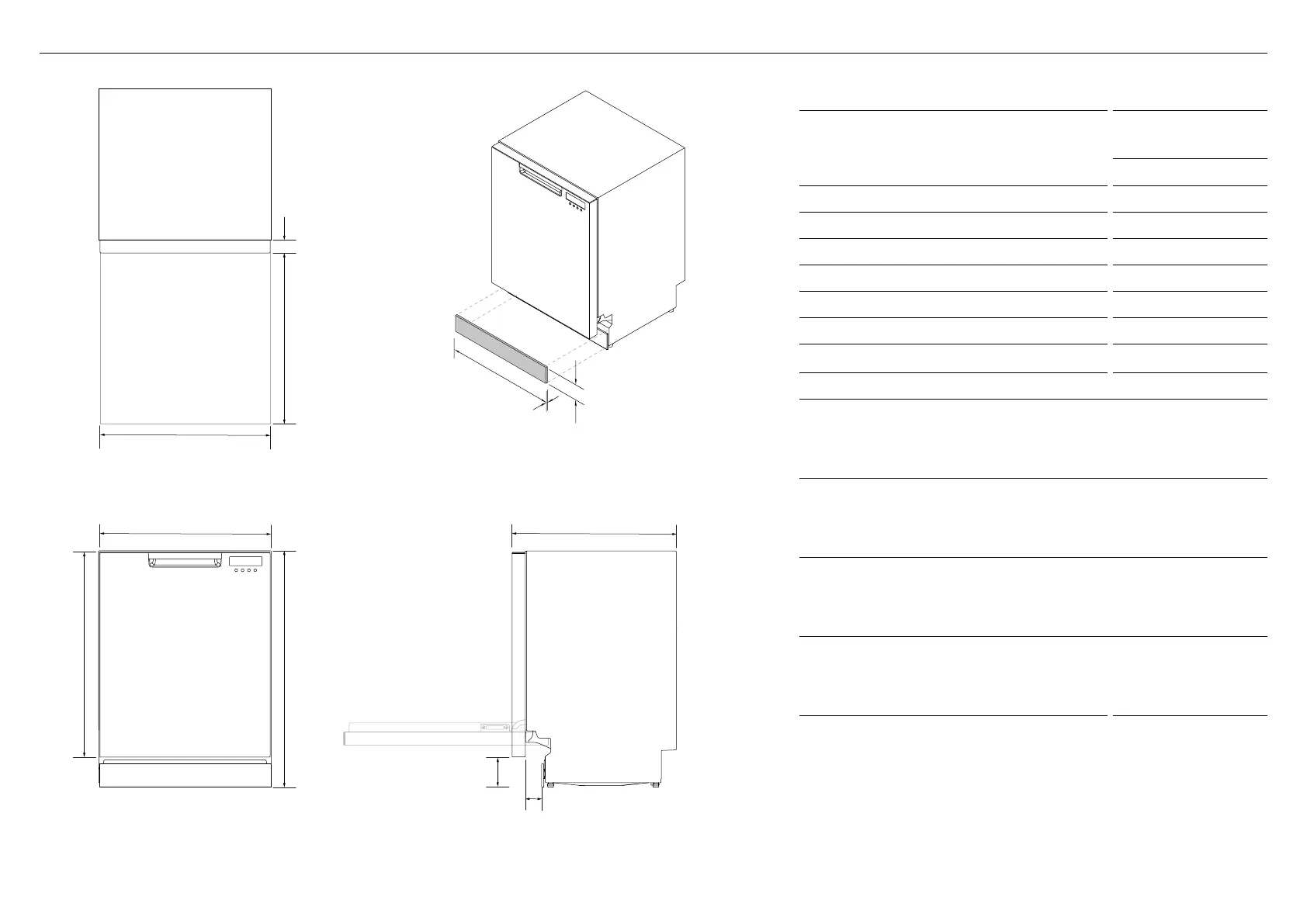

PRODUCT DIMENSIONS – DW60UC
PRODUCT DIMENSIONS
DW60UC MODELS
MM
A Overall height of product* 820 - 880
B Overall width of product** 598
C Overall depth of product 570
D Height of door 711
E Width of door 590
F Depth of door 46
G Height from floor to bottom of door 100 - 160
H Depth of open door 586
I Width of toe kick panel
z
Custom panel 596 - 605
z
Pre-finished panel 595
J Height of toe kick panel***
z
Custom panel 80 - 165
z
Pre-finished toe kick 82 - 127
K Depth of toe kick panel
z
Custom panel**** min. 16
z
Pre-finished toe kick 16
L Depth of toe kick*****
z
Custom panel 0 - 44
z
Pre-finished toe kick 0 - 20
*depending on adjustment of levelling feet
**excluding side seals
***depending on cabinetry dimensions
****when using supplied 12mm screws
****excluding door front and toe kick panels
PLAN
FRONT
ISOMETRIC
PROFILE
g
l
Cb
E
A
d
h
i
f
k
j
