Fisher & Paykel ED56 Series User Manual

10
Note: if you change mounting from upright to inverted or vice versa the dryer must be cleaned
internally by a serviceman.
For the average
person the
recommended
height for the
bracket is 2070 mm
from the floor
Floor
Bracket holes
Ceiling
Ensure bracket is securely
fastened at both ends
(eg into the stud). Fit
timber slats if necessary
519 mm
114.5 mm
95 mm
Dryer Bracket
127 mm
D = 100 mm
125 mm
Fit inverted control
panel over the existing
panel if necessary
Fit spacers
as shown
70 mm

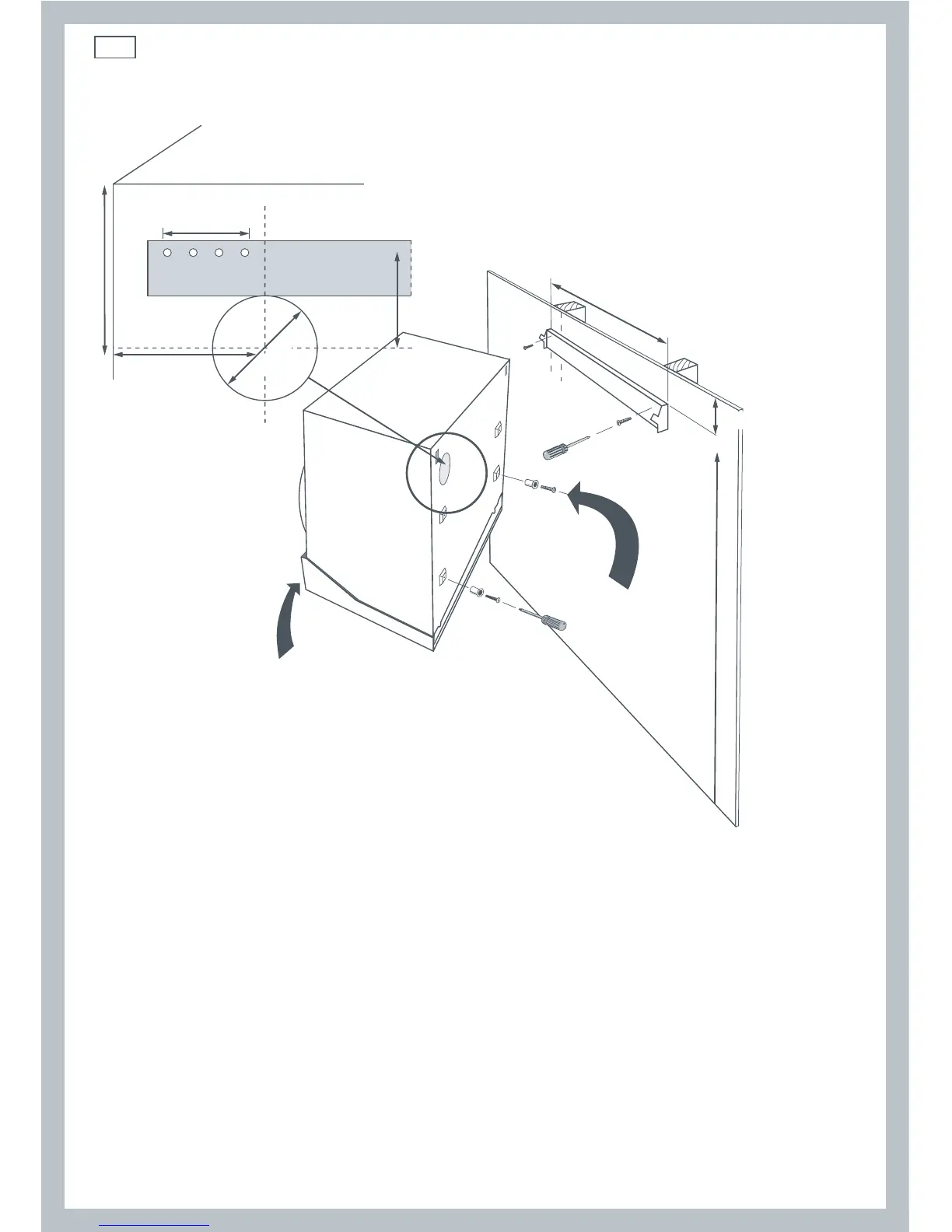

Dryer wall mounting instructions
Fig. 12 Wall mounting instructions

Fisher & Paykel ED56 Series Specifications

General

Drying Technology	Vented
Controls	Electronic
Number of Cycles	4
Number of Programs	4
Reverse Tumbling	Yes
Energy Rating	2 Star
