Flush venting
The dryer is vented through a hole in the wall, using a
galvanised metal pipe or flexible hose. This is suitable for floor
and wall mounted dryers installed against an outside wall.
Flexible Hose 400 mm Part No. 460754
Movable venting
The dryer is vented using a flexible hose through a hole in the
wall. This allows the dryer to be moved from the wall slightly.
Suitable for floor mounted dryers only.
Flexible Hose 2 m Part No. 503858
Window venting
A flexible hose is used to vent the dryer through a window.
Maximum hose length is 2 metres.
Flexible Hose 2 m Part No. 503858
Venting duct
The dryer is vented using an extendible duct that allows
venting to a window or through an existing wall vent. The
duct can be used with a flexible hose. Specially suitable for
inverted dryers.
Venting Duct Kit Part No. 460886
Flexible Hose 2 m Part No. 503858
Internal venting
Included with the dryer is a vent deflector. This screws on
to the back of the dryer over the exhaust outlet. If external
venting is not possible the deflector must be fitted. The
outlet of the vent deflector must be clear of any obstructions
to ensure normal and safe operation.

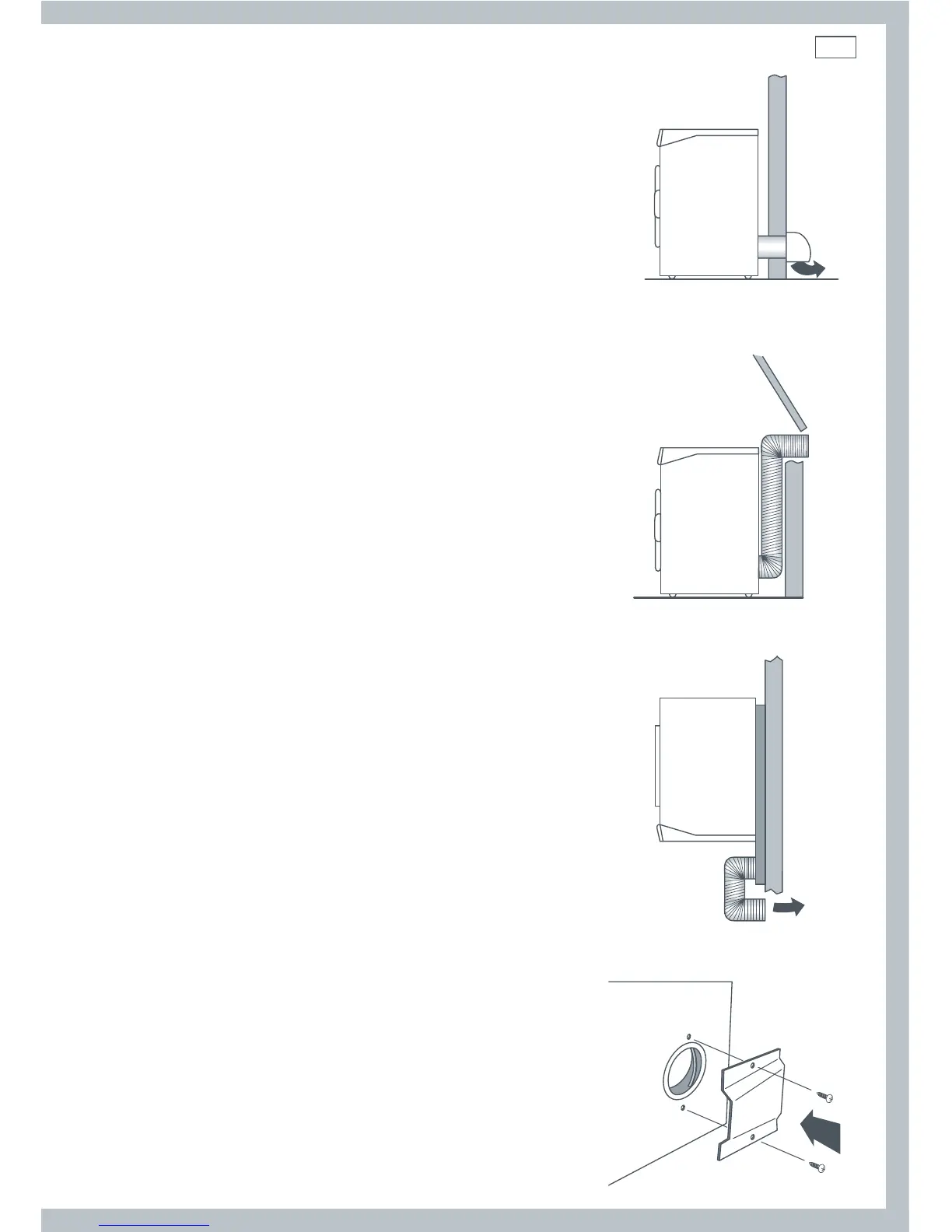

Fig. 9 Internal venting
Installation – Electronic and Manual 4.5 kg dryers
Fig. 6 Flush venting
Fig. 7 Movable venting
Fig. 8 Venting duct
