Fisher & Paykel WH8060F User Manual

INSTALLATION GUIDE
9

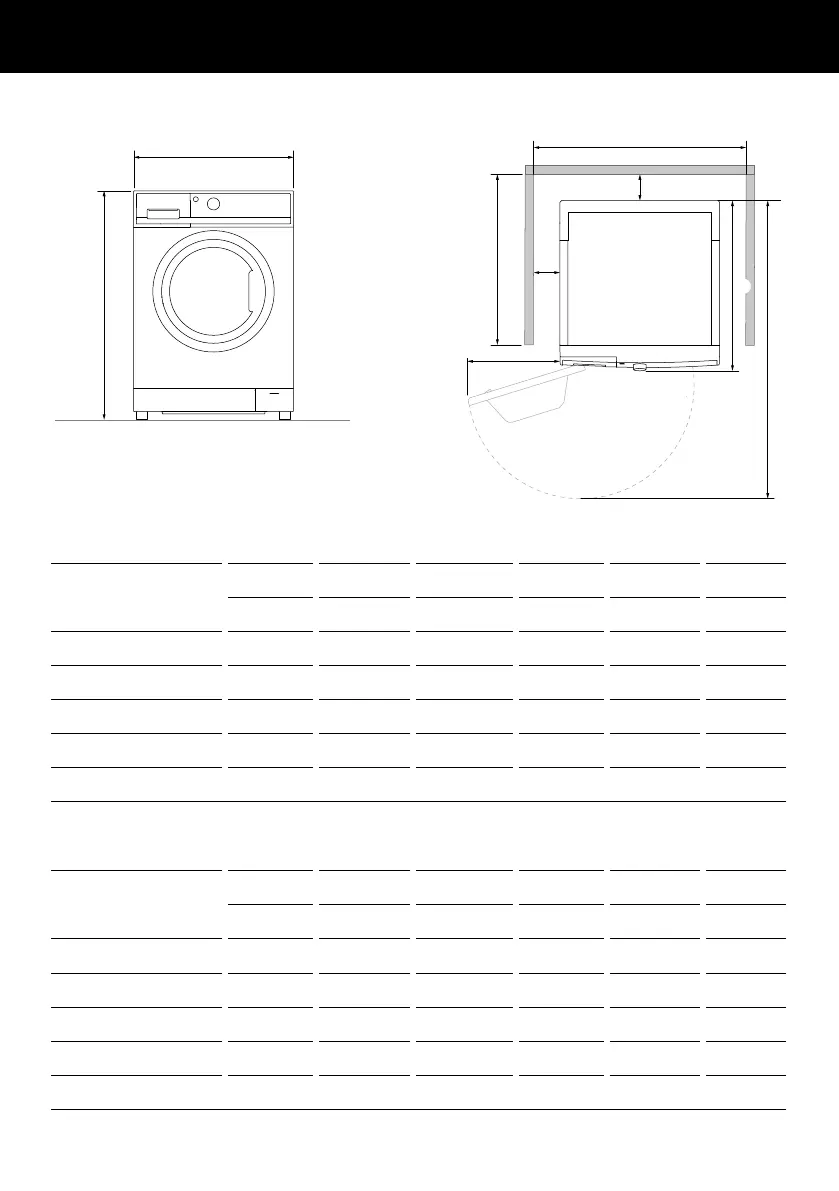

Product dimensions
FRONT
PLAN
E
G
H
I
F
D
MIN. CLEARANCES
WH1060P/J WH9060P/J WH8560F/P/J WH8060F/P WH7560P/J WH8060J
MM MM MM MM MM MM
E Cavity width 640 640 640 640 640 640
F Cavity depth 650 650 650 650 610 610
G Rear 20 20 20 20 20 20
H Sides*** 20 20 20 20 20 20
I Door to sides 320 320 320 320 330 330
*** Door clearance should also be considered depending on type of installation
A
B
C
PRODUCT DIMENSIONS
WH1060P/J WH9060P/J WH8560F/P/J WH8060F/P WH7560P/J WH8060J
MM MM MM MM MM MM
A Overall height* 850 850 850 850 850 850
B Overall width 600 600 600 600 600 600
C Overall depth** 655 655 655 655 590 590
D Depth of open door 1075 1075 1075 1075 1010 1010
Standpipe height min 600 600 600 600 600 600
* Exact height is dependent on foot adjustment
** Including dial and door (when closed)
