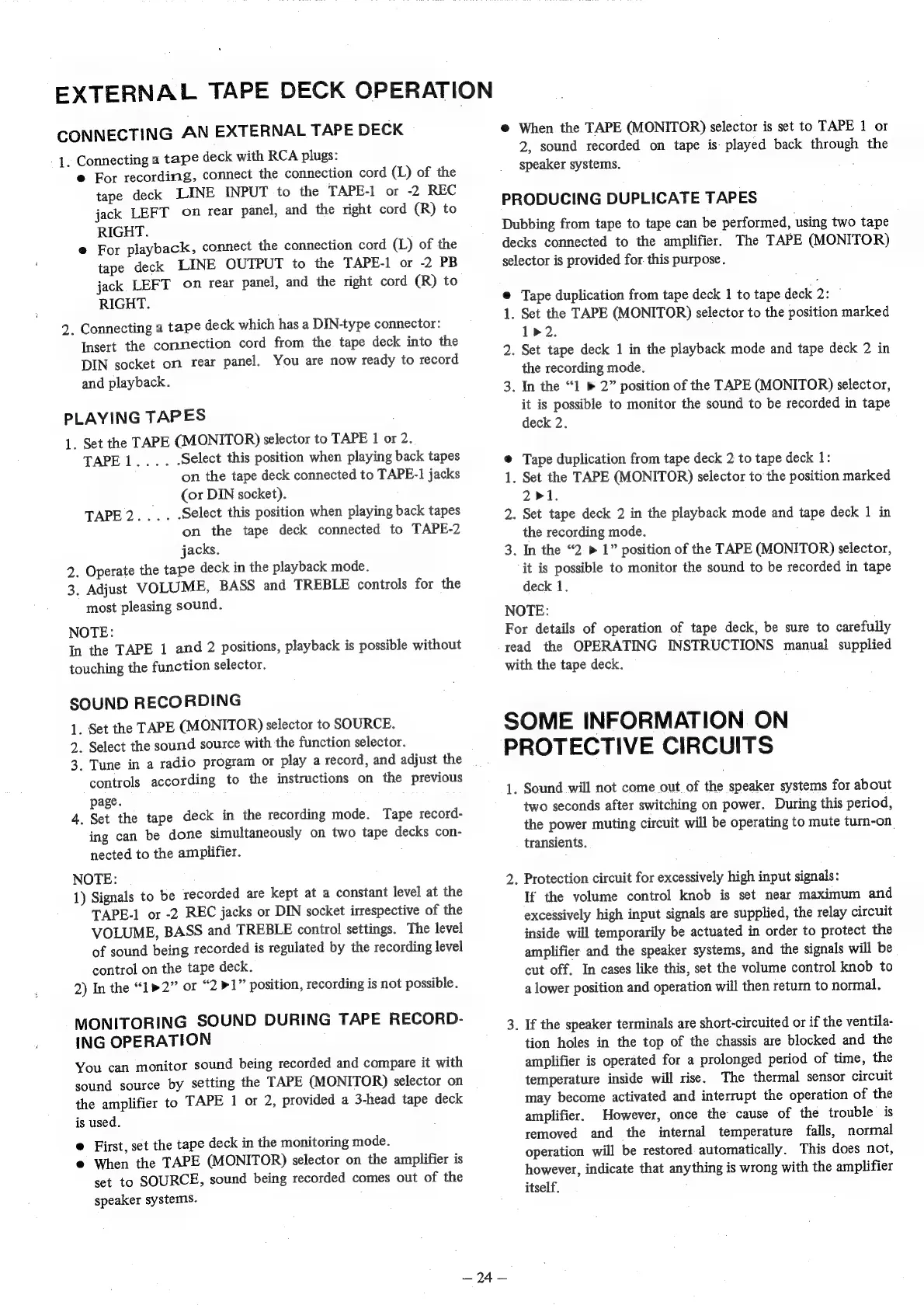

EXTERNAL
TAPE
DECK
OPERATION
CONNECTING
AN
EXTERNAL
TAPE
DECK
-
1.
Connecting
a
tape
deck
with
RCA
plugs:
e
For
recording,
connect
the
connection
cord
(L)
of
the
tape
deck
LINE
INPUT
to
the
TAPE-1
or
-2
REC
jack
LEFT
on
rear
panel,
and
the
right
cord
(R)
to
RIGHT.
@
For
playback,
connect
the
connection
cord
(L)
of
the
tape
deck
LINE
OUTPUT
to
the
TAPE-1
or
-2
PB
jack
LEFT
on
rear
panel,
and
the
right
cord
(R)
to
RIGHT.
2.
Connecting
a
tape
deck
which
has
a
DIN-type
connector:
Insert
the
connection
cord
from
the
tape
deck
into
the
DIN
socket
om
rear
panel.
You
are
now
ready
to
record
and
playback.
PLAYING
TAPES
1.
Set the
TAPE
(MONITOR)
selector
to
TAPE
1
or
2.
TAPE
1...
.
.Select
this
position
when
playing
back
tapes
on
the
tape
deck
connected
to
TAPE-1
jacks
(or
DIN
socket).
TAPE
2...
.
-Select
this
position
when
playing
back
tapes
on
the
tape
deck
connected
to
TAPE-2
jacks.
2.
Operate
the
tape
deck
in
the
playback
mode.
3.
Adjust
VOLUME,
BASS
and
TREBLE
controls
for
the
most
pleasing
sound.
NOTE:
In
the
TAPE
1
and
2
positions,
playback
is
possible
without
touching
the
function
selector.
SOUND
RECORDING
1.
Set
the
TAPE
(MONITOR)
selector
to
SOURCE.
2.
Select
the
sound
source
with
the
function
selector.
3.
Tune
in
a
radio
program
or
play
a
record,
and
adjust
the
controls
according
to
the
instructions
on
the
previous
page.
4.
Set
the
tape
deck
in
the
recording
mode.
Tape
record-
ing
can
be
done
simultaneously
on
two
tape
decks
con-
nected
to
the
amplifier.
NOTE:
1)
Signals
to
be
recorded
are
kept
at
a
constant
level
at
the
TAPE-1
or
-2
REC
jacks
or
DIN
socket
irrespective
of
the
VOLUME,
BASS
and
TREBLE
control
settings.
The
level
of
sound
being
recorded
is
regulated
by
the
recording
level
control
on
the
tape
deck.
2)
In
the
“1»2”
or
“2
»1”
position,
recording
is
not
possible.
MONITORING
SOUND
DURING
TAPE
RECORD-
ING
OPERATION
You
can
monitor
sound
being
recorded
and
compare
it
with
sound
source
by
setting
the
TAPE
(MONITOR)
selector
on
the
amplifier
to
TAPE
1
or
2,
provided
a
3-head
tape
deck
is used.
e
First,
set
the
tape
deck
in
the
monitoring
mode.
@
When
the
TAPE
(MONITOR)
selector
on
the
amplifier
is
set
to
SOURCE,
sound
being
recorded
comes
out
of
the
speaker
systems.
—24—
@ When the TAPE (MONITOR) selector is set to TAPE 1 or
2, sound recorded on tape is played back through the
speaker
systems.
me
PRODUCING DUPLICATE TAPES
Dubbing from tape to tape can be performed, using two tape
decks connected to the amplifier. The TAPE (MONITOR)
selector is provided for this purpose.
@ Tape duplication from tape deck 1 to tape deck 2:
1. Set the TAPE (MONITOR) selector to the position marked
1 > 2.
2. Set tape deck 1 in the playback mode and tape deck 2 in
the recording mode.
3. In the “1 » 2” position of the TAPE (MONITOR) selector,
it is possible to monitor the sound to be recorded in tape
deck 2.
@ Tape duplication from tape deck 2 to tape deck 1:
1. Set the TAPE (MONITOR) selector to the position marked
2>1.
2. Set tape deck 2 in the playback mode and tape deck 1 in
the recording mode.
3. In the “2 > 1” position of the TAPE (MONITOR) selector,
it is possible to monitor the sound to be recorded in tape
deck 1.
NOTE:
For details of operation of tape deck, be sure to carefully
read the OPERATING INSTRUCTIONS manual supplied
with the tape deck.
SOME INFORMATION ON
PROTECTIVE CIRCUITS
1.
Sound
will
not
come
out
of
the
speaker
systems
for
about
two
seconds
after
switching
on
power.
During
this
period,
the
power
muting
circuit
will
be
operating
to
mute
turn-on
transients.
2.
Protection
circuit
for
excessively
high
input
signals:
If
the
volume
control
knob
is
set
near
maximum
and
excessively
high
input
signals
are
supplied,
the
relay
circuit
inside
will
temporarily
be
actuated
in
order
to
protect
the
amplifier
and
the
speaker
systems,
and
the
signals
will
be
cut
off.
In
cases
like
this,
set
the
volume
control
knob
to
a
lower
position
and
operation
will
then
return
to
normal.
3.
If
the
speaker
terminals
are
short-circuited
or
if
the
ventila-
tion
holes
in
the
top
of
the
chassis
are
blocked
and
the
amplifier
is
operated
for
a
prolonged
period
of
time,
the
temperature
inside
will
rise.
The
thermal
sensor
circuit
may
become
activated
and
interrupt
the
operation
of
the
amplifier.
However,
once
the
cause
of
the
trouble
_
is
removed
and
the
internal
temperature
falls,
normal
operation
will
be
restored
automatically.
This
does
not,
however,
indicate
that
anything
is
wrong
with
the
amplifier
itself,
