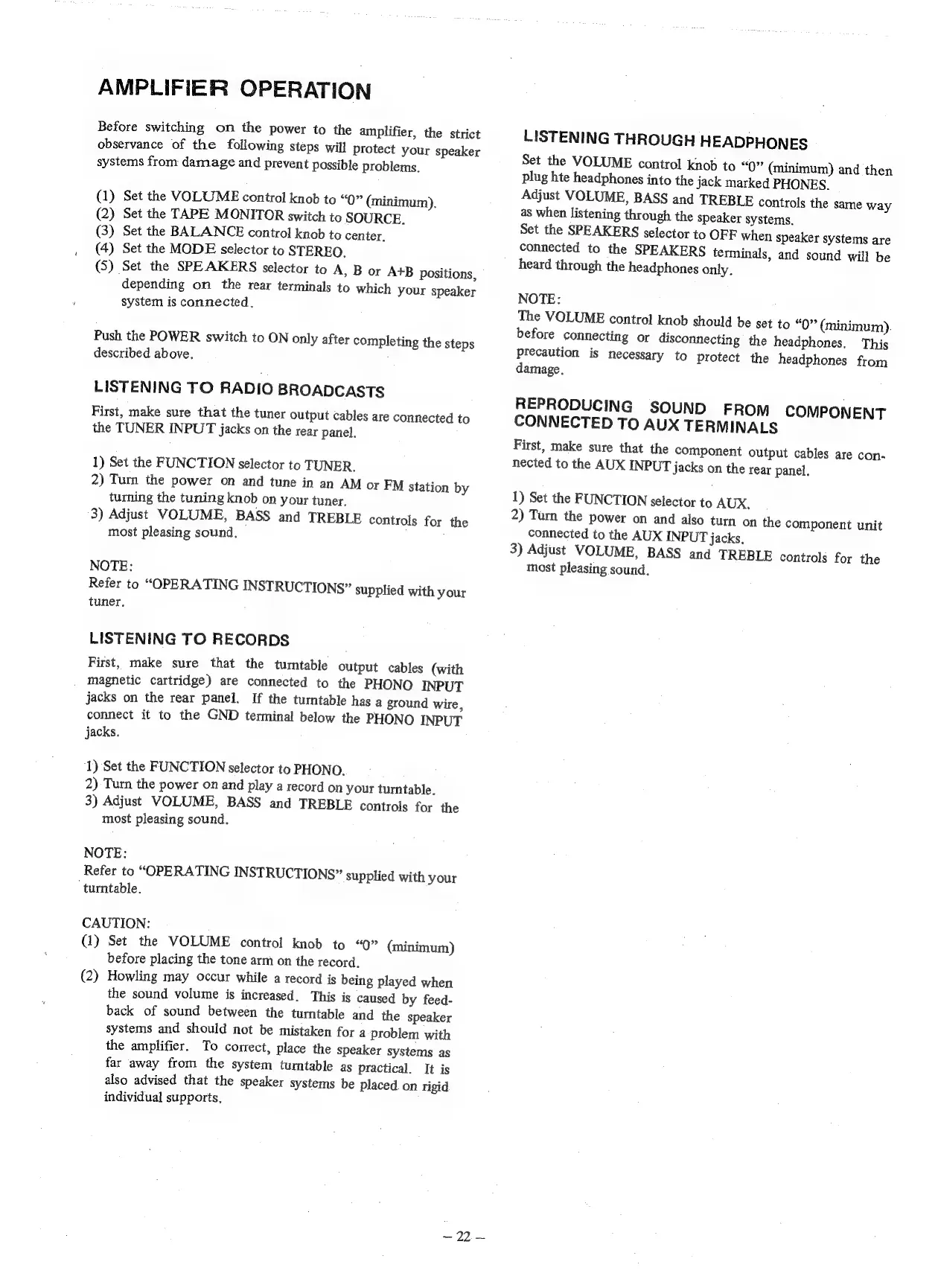

AMPLIFIER
OPERATION
Before
switching
on
the
power
to
the
amplifier,
the
strict
observance
of
the
following
steps
will
protect
your
speaker
systems
from
damage
and
prevent
possible
problems.
(1)
Set the
VOLUME
control
knob
to
“9”
(minimum).
(2)
Set
the
TAPE
MONITOR
switch
to
SOURCE.
(3)
Set
the
BALANCE
control
knob
to
center.
(4)
Set
the
MODE
selector
to
STEREO.
(5)
Set
the
SPEAKERS
selector
to
A,
B
or
A+B
Positions,
depending
on
the
rear
terminals
to
which
your
speaker
system
is
connected,
Push
the
POWER
switch
to
ON
only
after
completing
the
steps
described
above.
LISTENING
TO
RADIO
BROADCASTS
First,
make
sure
that
the
tuner
output
cables
are
connected
to
the
TUNER
INPUT
jacks
on
the
rear
panel.
1)
Set
the
FUNCTION
selector
to
TUNER.
2)
Turn
the
power
on
and
tune
in
an
AM
or
FM
station
by
turning
the
tuning
knob
on
your
tuner.
3)
Adjust
VOLUME,
BASS
and
TREBLE
controls
for
the
most
pleasing
sound.
NOTE:
Refer
to
“OPERATING
INSTRUCTIONS”
supplied
with
your
tuner.
LISTENING TO RECORDS
First,
make
sure
that
the
turntable
output
cables
(with
_
Magnetic
cartridge)
are
connected
to
the
PHONO
INPUT
jacks
on
the
rear
panel.
If
the
turntable
has
a
ground
wire,
connect
it
to
the
GND
terminal
below
the
PHONO
INPUT
jacks.
1)
Set
the
FUNCTION
selector
to
PHONO.
2)
Turn
the
power
on
and
play
a
record
on
your
turntable.
3)
Adjust
VOLUME,
BASS
and
TREBLE
controls
for
the
most
pleasing
sound.
NOTE:
Refer
to
“OPERATING
INSTRUCTIONS”
supplied
with
your
‘turntable.
CAUTION:
(1)
Set
the
VOLUME
control
knob
to
“Q”
(minimum)
before
placing
the
tone
arm
on
the
record.
(2)
Howling
may
occur
while
a
record
is
being
played
when
the
sound
volume
is
increased.
This
is
caused
by
feed-
back
of
sound
between
the
turntable
and
the
speaker
systems
and
should
not
be
mistaken
for
a
problem
with
the
amplifier.
To
correct,
place
the
speaker
systems
as
far
away
from
the
system
turntable
as
practical.
It
is
also
advised
that
the
speaker
systems
be
placed
on
rigid
individual
supports,
aoe
LISTENING
THROUGH
HEADPHONES
Set
the
VOLUME
control
knob
to
“0”
(minimum)
and
then
plug
hte
headphones
into
the
jack
marked
PHONES.
Adjust
VOLUME,
BASS
and
TREBLE
controls
the
same
way
as
when
listening
through
the
speaker
systems,
Set
the
SPEAKERS
selector
to
OFF
when
speaker
systems
are
connected
to
the
SPEAKERS
terminals,
and
sound
will
be
heard
through
the
headphones
only.
NOTE:
The
VOLUME
control
knob
should
be
set
to
“O”
(minimum).
before
connecting
or
disconnecting
the
headphones.
This
precaution
is
necessary
to
protect
the
headphones
from
damage.
REPRODUCING
SOUND
FROM
COMPONENT
CONNECTED
TO
AUX
TERMINALS
First,
make
sure
that
the
component
output
cables
are
con-
nected
to
the
AUX
INPUT
jacks
on
the
rear
panel.
1)
Set
the
FUNCTION
selector
to
AUX,
2)
Turn
the
power
on
and
also
turn
on
the
component
unit
connected
to
the
AUX
INPUT
jacks,
3)
Adjust
VOLUME,
BASS
and
TREBLE
controls
for
the
most
pleasing
sound.
