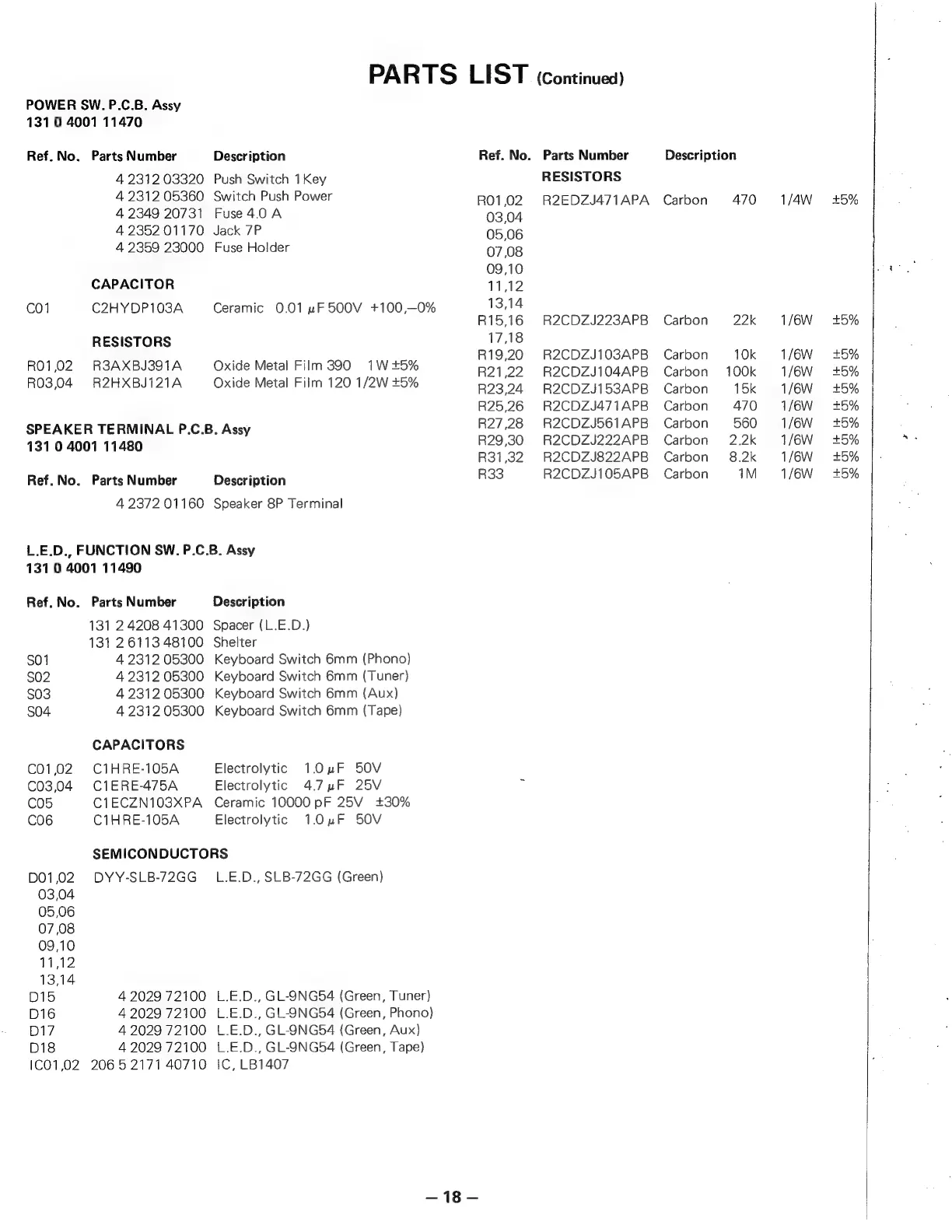

PARTS LIST (continued)
POWER SW. P.C.B. Assy
131 0 4001 11470
Ref. No. Parts Number Description
4 2312 03320 Push Switch 1 Key
4 2312 05360 Switch Push Power
4 2349 20731 Fuse 4.0 A
4 2352 01170 Jack 7P
4 2359 23000 Fuse Holder
CAPACITOR
Col C2HYDP103A Ceramic 0.01 nF 500V +100,—0%
RESISTORS
RO1,02 R3AXBJ391A Oxide Metal Film 390 1W+5%
RO3,04 R2HXBJ121A Oxide Metal Film 120 1/2W +5%
SPEAKER TERMINAL P.C.B. Assy
131 0 4001 11480
Ref. No. Parts Number Description
4 2372 01160 Speaker 8P Terminal
L.E.D., FUNCTION SW. P.C.B. Assy
131 0 4001 11490
Ref. No. Parts Number Description
131 2 4208 41300 Spacer (L.E.D.)
131 2611348100 Shelter
So1 4 2312 05300 Keyboard Switch 6mm (Phono)
S02 4 2312 05300 Keyboard Switch 6mm (Tuner)
$03 4 231205300 Keyboard Switch 6mm (Aux)
S04 4 231205300 Keyboard Switch 6mm (Tape)
CAPACITORS
CO1,02. CIHRE-105A Electrolytic 1.0yF 50V
C03,04 CIERE-475A Electrolytic 4.7 %F 25V
CO5 C1ECZN103XPA Ceramic 10000 pF 25V +30%
C06 CIHRE-105A Electrolytic 1.0yF SOV
SEMICONDUCTORS
DO1,02 DYY-SLB-72GG L.E.D., SLB-72GG (Green)
03,04
05,06
07,08
09,10
11,12
13,14
D15 4 2029 72100 L.E.D., GL-9NG54 (Green, Tuner)
D16 42029 72100 L.E.D., GL-NG54 (Green, Phono)
D17 4 2029 72100 L.E.D., GL-NG54 (Green, Aux)
D18 4 2029 72100 L.E.D., GL-9NG54 (Green, Tape)
1CO1,02 20652171 40710 IC, LB1407
—18—
Ref. No.
RO1,02
03,04
05,06
07,08
09,10
11,12
13,14
R15,16
17,18
R19,20
R21 ,22
R23,24
R25 ,26
R27 ,28
R29 30
R31 ,32
R33
Parts Number
RESISTORS
R2EDZJ471APA
R2CDZJ223APB
R2CDZJ103APB
R2CDZJ104APB
R2CDZJ153APB
R2CDZJ471 APB
R2CDZJ561APB
R2CDZJ222APB
R2CDZJ822APB
R2CDZJ105APB
Description
Carbon 470
Carbon 22k
Carbon 10k
Carbon 100k
Carbon 15k
Carbon 470
Carbon 560
Carbon 2.2k
Carbon 8.2k
Carbon 1M
1/4W
1/6W
1/6W
1/6W
1/6W
1/6W
1/6W
1/6W
1/6W
1/6W
t5%
£6%
£5%
+5%
+5%
+5%
+5%
+5%
+5%
+5%
