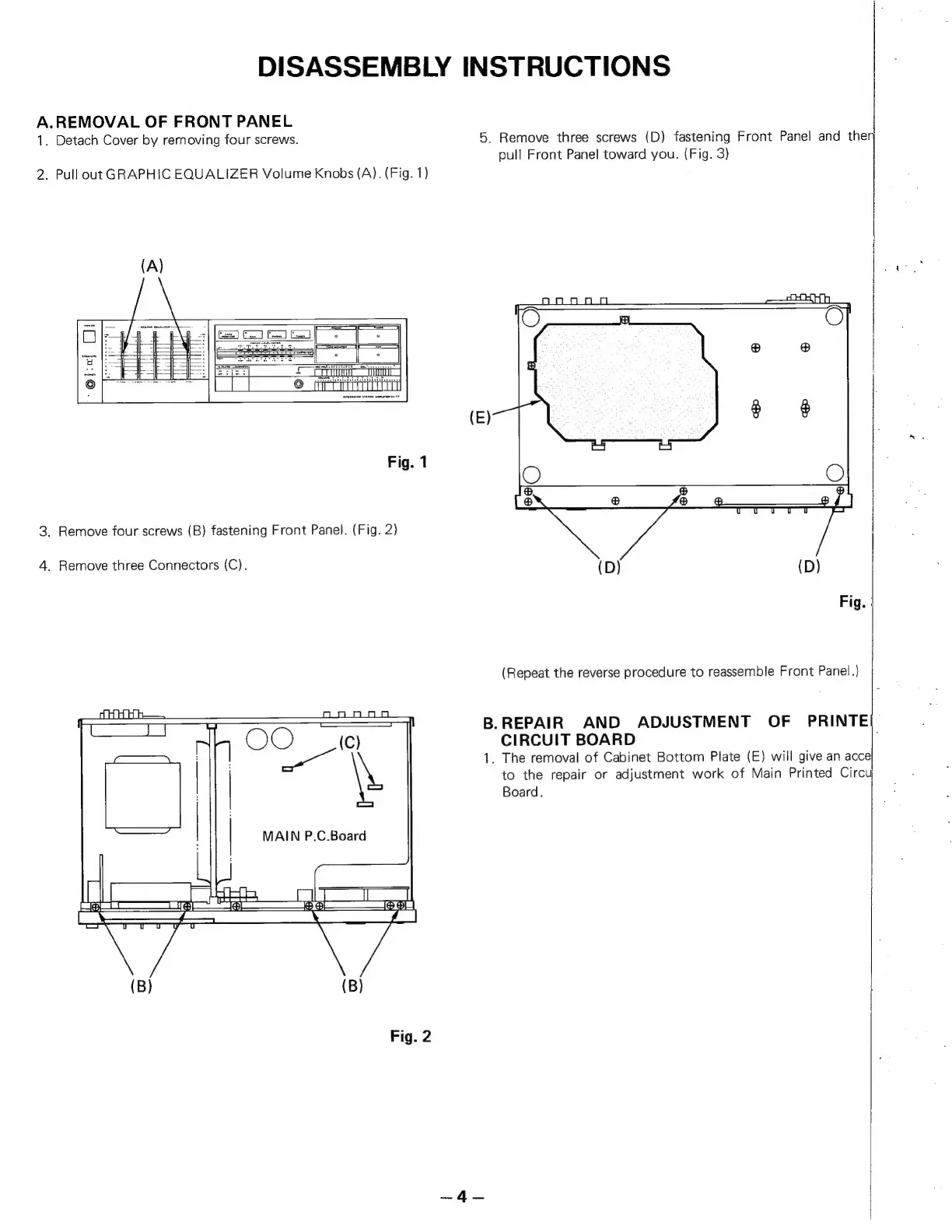

DISASSEMBLY INSTRUCTIONS
A.REMOVAL OF FRONT PANEL
1. Detach Cover by removing four screws.
5. Remove three screws (D) fastening Front Panel and the
pull Front Panel toward you. (Fig. 3) |
2. Pull out GRAPHIC EQUALIZER Volume Knobs (A). (Fig. 1)
Ola! me
(E)
Fig. 1
3. Remove four screws (B) fastening Front Panel. (Fig. 2)
4. Remove three Connectors (C).
Fig. |
(Repeat the reverse procedure to reassemble Front Panel.)
cH Hh,
—
B.REPAIR
AND
ADJUSTMENT
OF
PRINTE|
OO
210)
CIRCUIT
BOARD
7
!
eee
1.
The
removal
of
Cabinet
Bottom
Plate
(E)
will
give
an
accel
|
to
the
repair
or
adjustment
work
of
Main
Printed
Circu
| MAIN P.C.Board
Board.
Fig. 2
