Fisher DAC-204 - Cabinet Exploded View; Cabinet Parts List; Safety Interlock

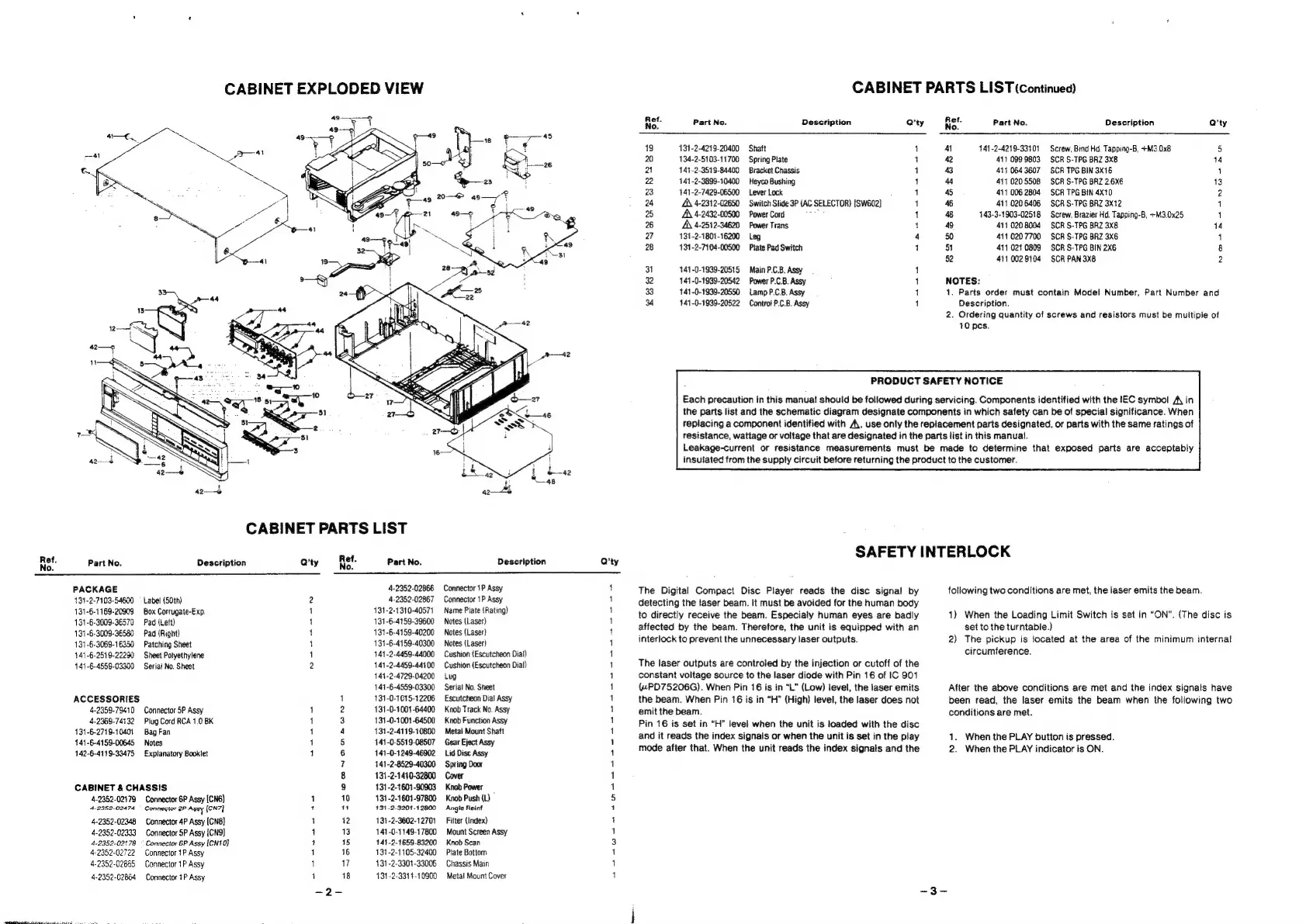

CABINET EXPLODED VIEW
CABINET PARTS LIST
Ret Part No. Description Q'ty Ret. Part No.
PACKAGE 4-2352-02866
131-2-7103-54600 — Label (50th)
131-6-1169-2089 Box Corrugate-Exp.
131-6-3009-36570 Pad (Left)
131 -6-3009-36580 Pad (Right)
131-6-3069-16350 Patching Sheet
141-6-2519-22230 Sheet Polyethylene
141-6-4559-03300 Seriai No. Sheet
ACCESSORIES
4-2359-79410 Connector 5P Assy
4-2369-74132 Plug Cord RCA 1.0 BK
131-6-2719-10401 Bag Fan
141-6-4159-00645 Notes
142-6-4119-33475 Explanatory Booklet
CABINET & CHASSIS
4-2352-02179 Connector 6P Assy [CN6}
4-2952-02474 — Connegtor @P Agay (CN7]
4-2352-02348 Connector 4P Assy [CN8)
4-2352-02333 Connector 5P Assy ICN9]
4-2352-02178 — Connector 6P Assy [CN10]
4-2352-02722 Connector 1P Assy
4-2352-02865 Connector 1P Assy
4-2352-02854 Connector iP Assy
lath man ae ay et Nock: Sek ts Se
OOIAMAHARWN
4-2352-02867
131-2-1310-40571
131 -6-4159-39600
131-6-4159-40200
131-6-4159-40300
141-2-4459-44000
141-2-4459-441 00
141-2-4729-04200
141-6-4559-03300
131-0-1015-12206
131-0-1001-64400
131-0-1001-64500
131-2-4119-10800
141-0-5519-08507
141-0-1249-46902
141-2-8529-40300
131-2-1440-32800
131-2-1601 -90903
131 -2-1601-97800
131-2-3201 -12800
131-2-3602-12701
141-0-1149-17800
141-2.1659-83200
134 -2-1105-32400
431-2-3301-33006
431-2-3314-10900
Description
Connector 1P Assy
Connector 1P Assy
Name Plate (Rating)
Notes (Laser)
Notes (Laser)
Notes (Laser)
Cushion (Escutcheon Dial)
Cushion (Escutcheon Dial)
Lug
Serial No. Sheet
Escutcheon Dial Assy
Knob Track No. Assy
Knob Function Assy
Metal Mount Shaft
Gear Eject Assy
Lid Disc Assy
Spring Door
Cover
Knob Power
Knob Push {L)
Angie Reinf
Filter (Index)
Mount Screen Assy
Knob Scan
Plate Bottom
Chassis Main
Metal Mount Cover
Q'ty
oe ewe eee
CABINET PARTS LIST continued)
Ret Part No.
No. Description arty
19 131-2-4219-20400 Shaft 1
20 134-2-5103-11700 Spring Plate 1
2 141-2-3518-84400 Bracket Chassis 1
22 141-2-3899-10400 Heyco Bushing 1
23 141-2-7429-06500 Lever Lock 1
24 AX 4-2312-02650 Switch Slide 3P (AC SELECTOR) [Sw602] 1
25 AM 4-2432-00500 Power Cord } 1
26 A\ 4-2512-34620 Power Trans 1
27 131-2-1801-16200 Leg 4
28 131-2-7104-00500 Plate Pad Switch 1
141-0-1939-20515 Main P.C.B. Assy
141-0-1939-20542 Power P.C.B. Assy
141-0-1939-20550 Lamp P.C.B. Assy
141-0-1939-20522 Control P.C.B. Assy
RBRS
ner Part No. Description Q’ty
4i 141-2-4219-33101 Screw, Bind Hd. Tapping-B, +M3.0x8 §
42 411 099.9803 SCR S-TP6 BRZ 3x8 14
4 411064 3607 SCR TPG BIN 3X16 1
44 4110205508 SCR S-TPG BRZ 2.6X6 13
45 411 006 2804 SCR TPG BIN 4X10 2
46 411 0206406 SCR S-TPG BRZ 3xt2 1
48 143-3-1903-02518 Screw, Brazier Hd. Tapping-B, +M3.0x25 1
49 411 020 8004 SCR S-TPG BRZ 3x8 14
50 4110207700 SCR S-TPG BRZ 3x6 1
51 411.021.0808 SCR S-TPG BIN 2X6 8
52 4110029104 SCR PAN 3X8 2
NOTES:
1. Parts order must contain Model Number, Part Number and
Description.
2. Ordering quantity of screws and resistors must be multiple of
10 pcs.
PRODUCT SAFETY NOTICE
Each precaution in this manua! should be followed during servicing. Components identified with the EC symbol A\ in
the parts list and the schematic diagram designate components in which safety can be of special significance. When
replacing a component identified with A\, use only the replacement parts designated, or parts with the same ratings of
resistance, wattage or voltage that are designated in the parts list in this manual.
Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably
insulated from the supply circuit before returning the product to the customer.
SAFETY INTERLOCK
The Digital Compact Disc Player reads the disc signal by
detecting the taser beam. It must be avoided for the human body
to directly receive the beam. Especialy human eyes are badly
affected by the beam. Therefore, the unit is equipped with an
interlock to prevent the unnecessary laser outputs.
The laser outputs are controled by the injection or cutoff of the
constant voltage source to the laser diode with Pin 16 of IC 901
(«PD75206G). When Pin 16 is in “L” (Low) level, the laser emits
the beam. When Pin 16 is in “H” (High) level, the laser does not
emit the beam.
Pin 16 is set in “H” level when the unit is loaded with the disc
and it reads the index signals or when the unit is set in the play
mode after that. When the unit reads the index signals and the
following two conditions are met, the laser emits the beam.
1) When the Loading Limit Switch is set in “ON”. (The disc is
set to the turntable.)
2) The pickup is located at the area of the minimum internal
circumference.
After the above conditions are met and the index signals have
been read, the laser emits the beam when the following two
conditions are met.
1. When the PLAY button is pressed.
2. When the PLAY indicator is ON.
