Type PRX Pilot (Figure 23)
Key Description
1 Adjusting screw
2 Locknut
3 Cap
4* O-ring
5* O-ring
6 Spring carrier plate
7 Spring
8 Spring cover
9 Spring carrier plate
10 Screw
11 Washer
12 Filter
13 Diaphragm plate
14* Diaphragm
15 Diaphragm plate
16 Body
17* O-ring
18* O-ring
19 Orice
20 Nut
21 Lower cover
22 Diaphragm plate
23 Stem
24 Nameplate
25* O-ring
26 Nut
27 Damper adjusting screw
28* O-ring
29 Plate
30 Nut
31 Damper/Restrictor screw
32 Restrictor adjusting screw
33 Plug
34 Plug
35 Spring barrel extension for AP
Type SA/2 Pilot Supply Filter Regulator
(Figure 24)
Key Description
1 Spring
2 Bolts
3 Washer
4 Plate
5 Seat
6* O-ring
7 Body
8 Filter net
9 Washer
10 Nut
11 Filter cover
12* Filter
13* O-ring
14 Spring
15* Pad holder unit
16 Nameplate
17 Screw unit
18* Diaphragm
19 Regulator cover
20 Spring Washer
21 Nut

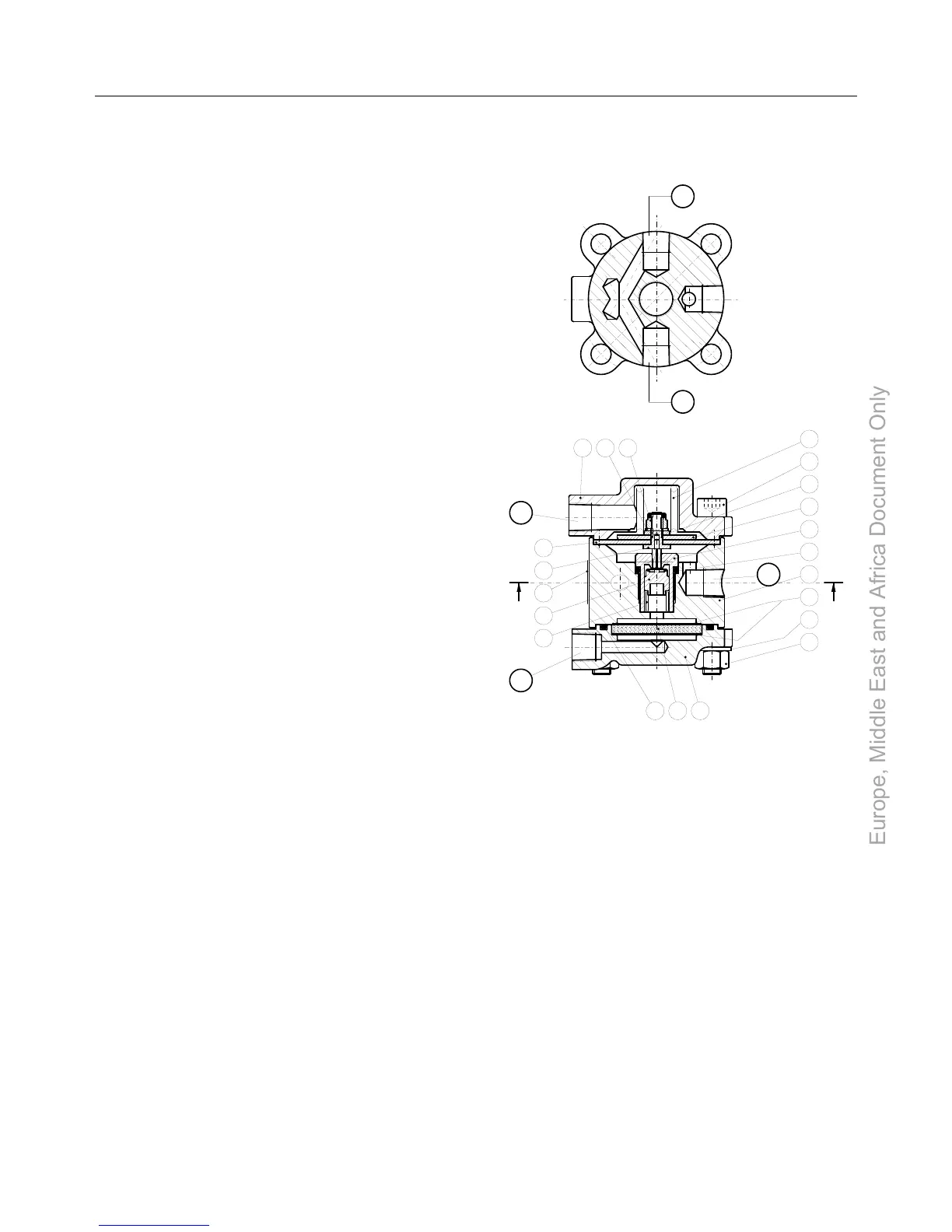

Figure 24. Type SA/2 Assembly
R110
R111
* Spare parts kit
