Fisher MC-620 - Page 6

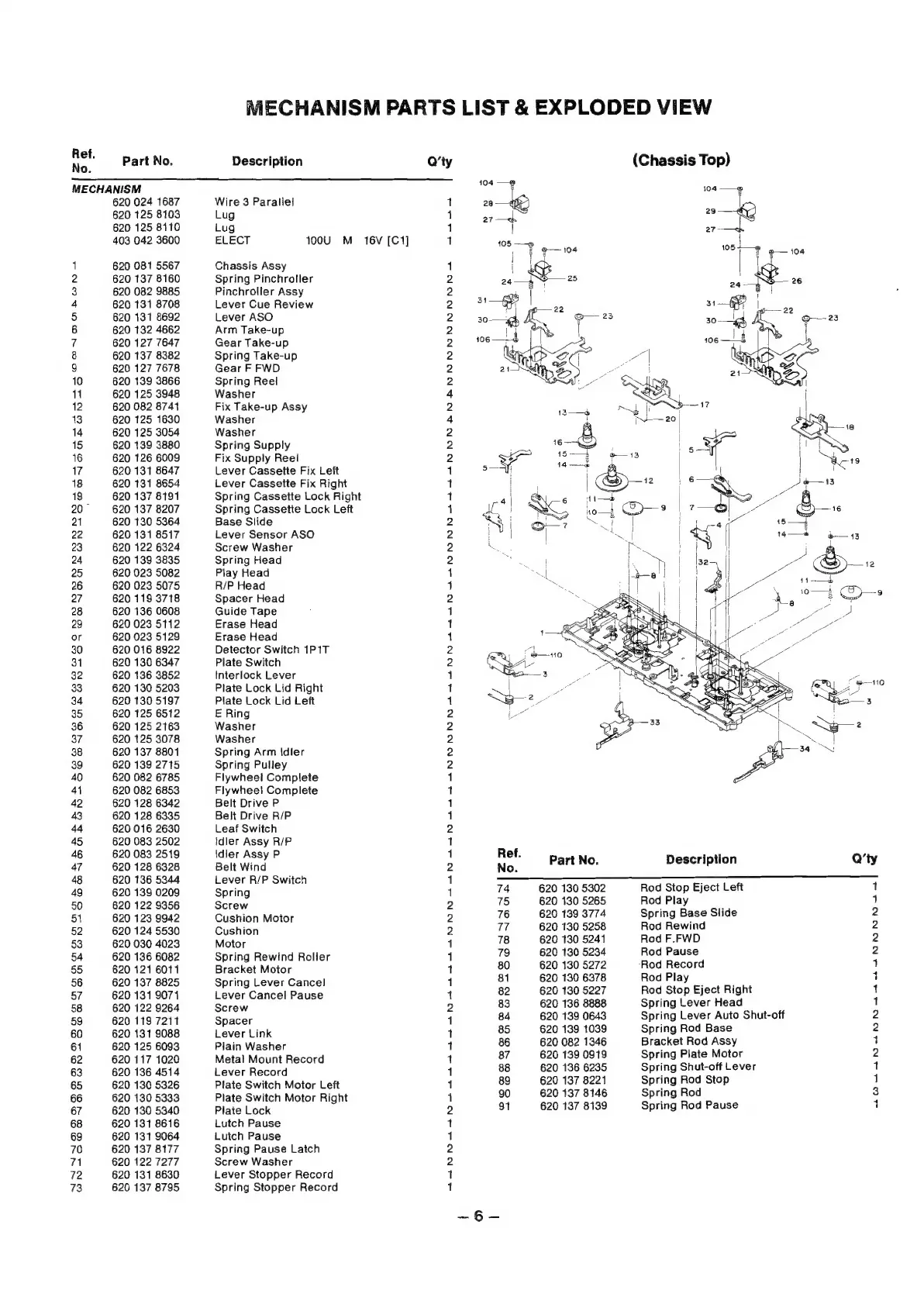

MECHANISM PARTS LIST & EXPLODED VIEW
fet. Part No. Description Q'ty (Chassis Top)
MECHANISM en ae 104 —e
620 024 1687 Wire 3 Parallel 1 28 — s
620 125 8103 Lug 1 a
620 125 8110 Lug La = oe
403 042 3600 ELECT 100U M~ 16V [C1] 1 |
1 620 081 5567 Chassis Assy 1
2 620 137 8160 Spring Pinchroller 2
3 620 082 9885 Pinchroller Assy 2
4 620 131 8708 Lever Cue Review 2
5 620 131 8692 Lever ASO 2
6 620 132 4662 Arm Take-up 2
7 620 127 7647 Gear Take-up 2
8 620 137 8382 Spring Take-up 2
9 620 127 7678 Gear F FWD 2
10 620 139 3866 Spring Reel 2
11 620 125 3948 Washer 4
12 620 082 8741 Fix Take-up Assy 2
13 620 125 1630 Washer 4
14 620 125 3054 Washer 2
15 620 139 3880 Spring Supply 2
16 620 126 6009 Fix Supply Reel 2
17 620 131 8647 Lever Cassette Fix Left 1
18 620 131 8654 Lever Cassette Fix Right 1
19 620 137 8191 Spring Cassette Lock Right 1
20° 620 137 8207 Spring Cassette Lock Left 1
21 620 130 5364 Base Slide 2
22 620 131 8517 Lever Sensor ASO 2
23 620 122 6324 Screw Washer 2
24 620 139 3835 Spring Head 2
25 620 023 5082 Play Head {
26 620 023 5075 R/P Head 1
27 620 119 3718 Spacer Head 2
28 620 136 0608 Guide Tape 1
29 620 023 5112 Erase Head 1
or 620 023 5129 Erase Head |
30 620 016 8922 Detector Switch 1P1T 2
31 620 130 6347 Plate Switch 2
32 620 136 3852 Interlock Lever 1
33 620 130 5203 Plate Lock Lid Right 1
34 620 130 5197 Plate Lock Lid Left 1
35 620 125 6512 E Ring 2
36 620 125 2163 Washer 2
37 620 125 3078 Washer 2
38 620 137 8801 Spring Arm Idler 2
39 620 139 2715 Spring Pulley 2
40 620 082 6785 Flywheel Complete 1
41 620 082 6853 Flywheel Complete Bi
42 620 128 6342 Belt Drive P 1
43 620 128 6335 Belt Drive R/P 1
44 620 016 2630 Leaf Switch 2
45 620 083 2502 idler Assy R/P 1
46 620 083 2519 \dier Assy P 1 Ref. ’
47 6201286328 + ——Belt Wind 2 No, Part No. Description Q'ty
48 620 136 5344 Lever R/P Switch 1 :
49
620
139
0209
Spring
1
74
620
130
5302
Rod
Stop
Eject
Left
1
50 620 122 9356 Screw 2 75 620 130 5265 Rod Play i
51
620
123
9942
Cushion
Motor
2
76
620
139
3774
Spring
Base
Slide
2
52
620
124
5530
Cushion
2
77
620
130
5258
Rod
Rewind
2
53
620
030
4023
Motor
1
78
620
130
5241
Rod
F.FWD
2
54 620 136 6082 Spring Rewind Roller 1 79 620 130 5234 Rod Pause 2
55 620 121 6011 Bracket Motor 1 80 620 130 5272 Rod Record i
56 620 137 8825 Spring Lever Cancel 1 81 620 130 6378 Rod Play ‘ 1
57 620 131 9071 Lever Cancel Pause 1 82 620 130 5227 Rod Stop Eject Right 1
58 620 122 9264 Screw 2 83 620 136 8888 Spring Lever Head 1
59
620
119
7211
Spacer
1
84
620
139
0643
Spring
Lever
Auto
Shut-off
2
60 620 131 9088 Lever Link 1 85 620 139 1039 Spring Rod Base 2
61
620
125
6093
Plain
Washer
1
86
620
082
1346
Bracket
Rod
Assy
1
62 620 117 1020 Metal Mount Record 1 87 620 139.0919 Spring Plate Motor 2
63
620
136
4514
Lever
Record
1
88
620
136
6235
Spring
Shut-off
Lever
1
65 620 130 5326 Plate Switch Motor Left 1 89 = 620 137 8221 Spring Rod Stop 1
66 620 130 5333 Plate Switch Motor Right 1 90 620 137 8146 Spring Rod .
67
620
130
5340
Plate
Lock
2
91
620
137
8139
Spring
Rod
Pause
1
68 620 131 8616 Lutch Pause 1
69 620 131 9064 Lutch Pause 1
70 620 137 8177 Spring Pause Latch 2
71 620 122 7277 Screw Washer 2
72 620 131 8630 Lever Stopper Record 1
73 620 137 8795 Spring Stopper Record 1
