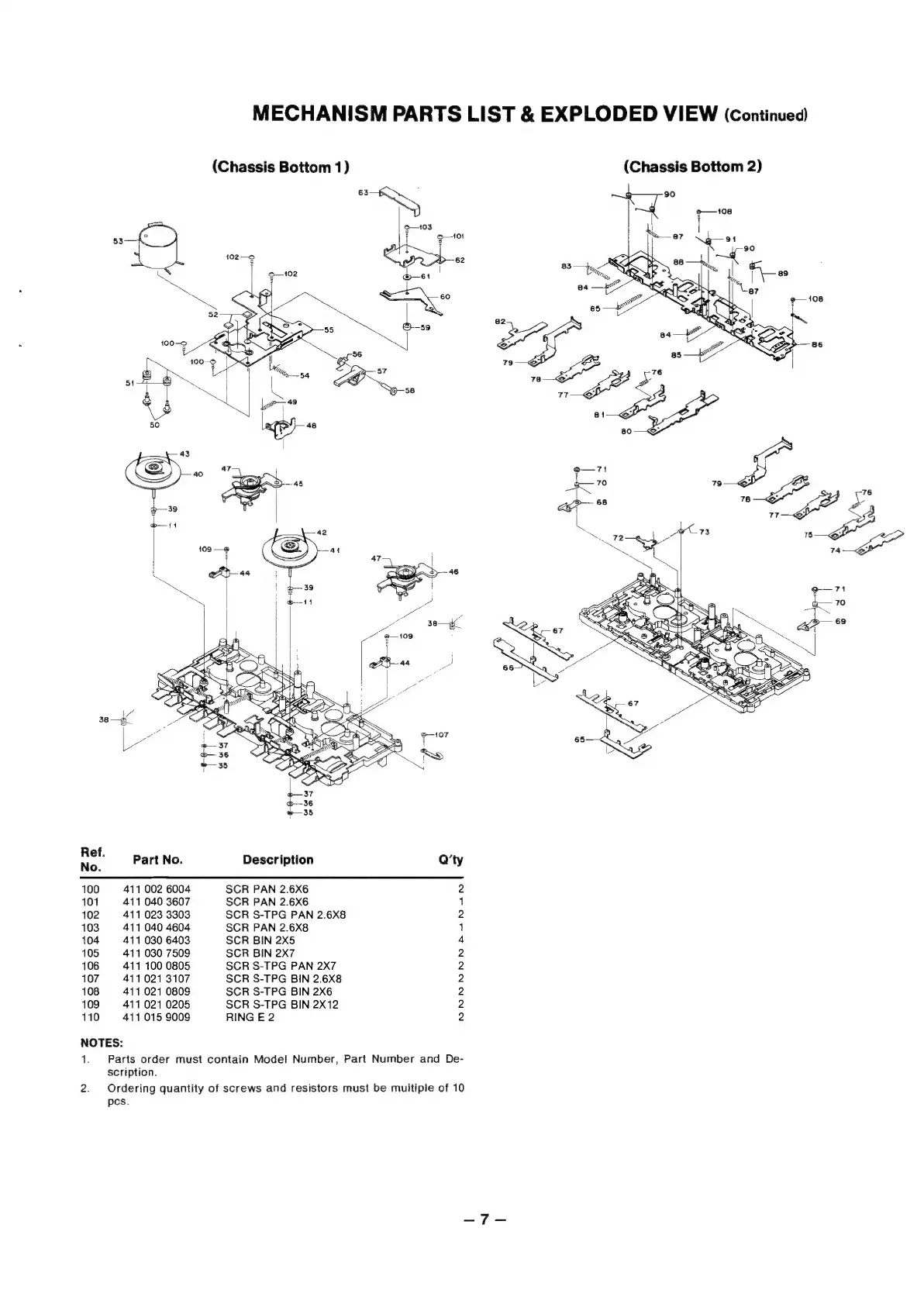

MECHANISM PARTS LIST & EXPLODED VIEW (continued)
(Chassis Bottom 1) (Chassis Bottom 2)
Ref.
No Part No. Description Q’ty
100 411 002 6004 SCR PAN 2.6X6 2
101 411 040 3607 SCR PAN 2.6X6 1
102 411 023 3303 SCR S-TPG PAN 2.6X8 2
103 411 040 4604 SCR PAN 2.6X8 1
104 411 030 6403 SCR BIN 2X5 4
105 411 030 7509 SCR BIN 2X7 2
106 411 100 0805 SCR S-TPG PAN 2X7 2
107 411021 3107 SCR S-TPG BIN 2.6X8 2
108 411 021 0809 SCR S-TPG BIN 2X6 2
109 411 021 0205 SCR S-TPG BIN 2X12 2
110 411 015 9009 RING E 2 2
NOTES:
1. Parts order must contain Model Number, Part Number and De-
scription.
2. Ordering quantity of screws and resistors must be multiple of 10
pcs.
