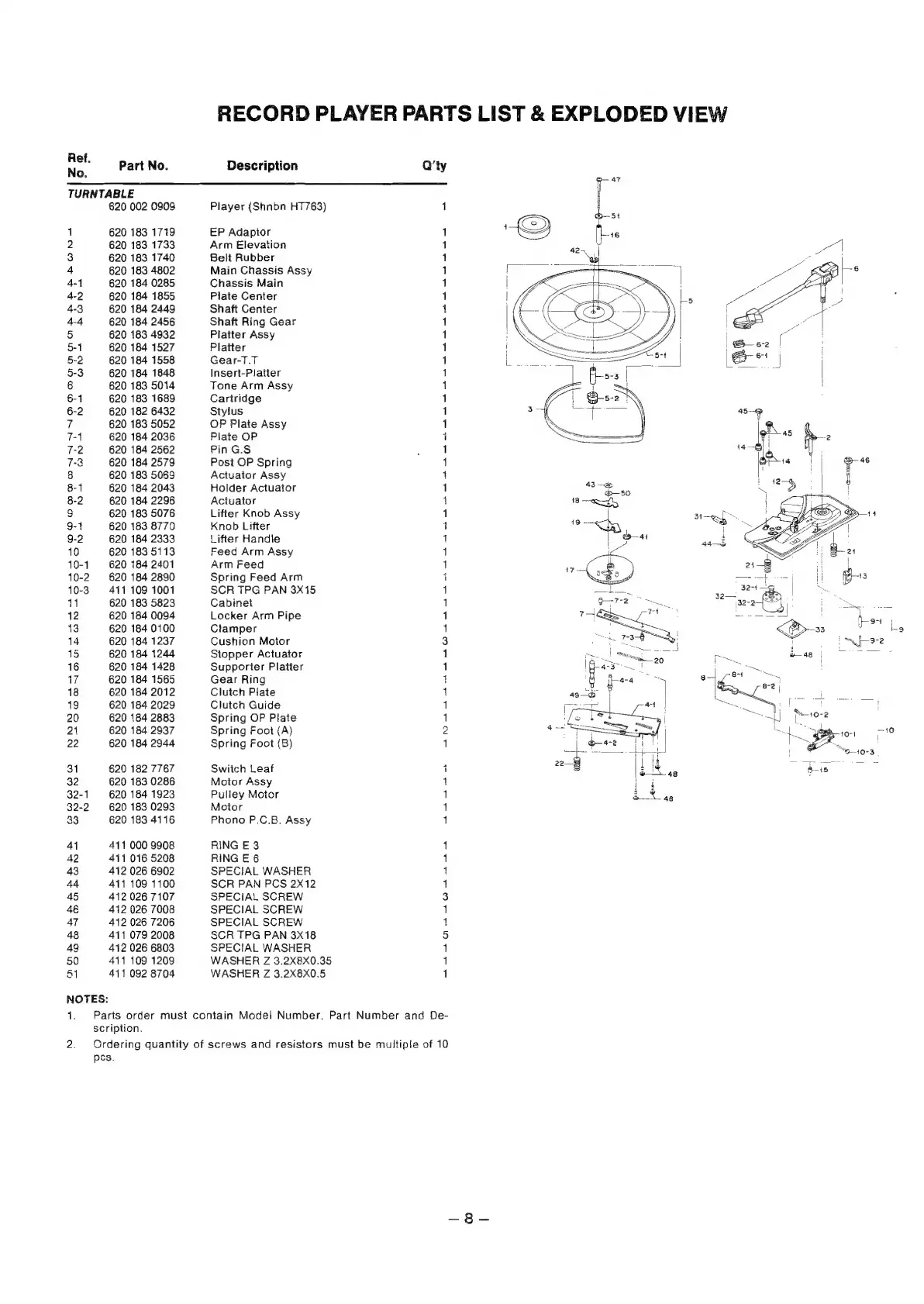

RECORD PLAYER PARTS LIST & EXPLODED VIEW
ts Part No. Description Q’ty
TURNTABLE
620 002 0909 Player (Shnbn HT763) 1
1 620 183 17179 EP Adaptor 1
2 620 183 1733 Arm Elevation 1
3 620 183 1740 Belt Rubber 1
4 620 183 4802 Main Chassis Assy 1
41 620 184 0285 Chassis Main 1
4-2 620 184 1855 Plate Center 1
4-3 620 184 2449 Shaft Center {
4-4 620 184 2456 Shaft Ring Gear 1
5 620 183 4932 Platter Assy 1
5-1 620 184 1527 Platter 1
5-2 620 184 1558 Gear-T.T 1
5-3 620 184 1848 Insert-Platter 1
6 620 183 5014 Tone Arm Assy 1
6-1 620 183 1689 Cartridge 1
6-2 620 182 6432 Stylus 1
7 620 183 5052 OP Plate Assy 1
7-1 620 184 2036 Plate OP 1
7-2 620 184 2562 Pin G.S 1
7-3 620 184 2579 Post OP Spring 1
8 620 183 5068 Actuator Assy 1
8-1 620 184 2043 Holder Actuator 1
8-2 620 184 2296 Actuator 1
| 620 183 5076 Lifter Knob Assy 1
9-1 620 183 8770 Knob Lifter 1
9-2 620 184 2333 Lifter Handle 1
10 620 183 5113 Feed Arm Assy 1
10-1 620 184 2401 Arm Feed 1
10-2 620 184 2890 Spring Feed Arm j
10-3. 411 109 1001 SCR TPG PAN 3X15 1
1 620 183 5823 Cabinet 1
12 620 184 0094 Locker Arm Pipe 1
13 620 184 0100 Clamper 1
14 620 184 1237 Cushion Motor 3
15 620 184 1244 Stopper Actuator 1
16 620 184 1428 Supporier Platter 1
17 620 184 1565 Gear Ring 1
18 620 184 2012 Clutch Plate |
19 620 184 2029 Clutch Guide 1
20 620 184 2883 Spring OP Plate 1
21 620 184 2937 Spring Foot (A) 2
22 620 184 2944 Spring Foot (B) 1
31 620 182 7767 Swiich Leaf 1
32 620 183 0286 Motor Assy 1
32-1 620 184 1923 Pulley Motor 1
32-2 620 183 0293 Motor 1
33 620 183 4116 Phono P.C.B. Assy 1
41 411 000 9908 RING E 3 1
42 411 016 5208 RING E 6 1
43 412 026 6902 SPECIAL WASHER 1
44 411 109 1100 SCR PAN PCS 2X12 1
45 412 026 7107 SPECIAL SCREW 3
46 412 026 7008 SPECIAL SCREW 1
47 412 026 7206 SPECIAL SCREW a
48 411 079 2008 SCR TPG PAN 3X18 5
4g 412 026 6803 SPECIAL WASHER 1
50 411 109 1209 WASHER Z 3.2X8X0.35 1
51 411 092 8704 WASHER Z 3.2X8X0.5 1
NOTES:
1. Parts order must contain Model Number, Part Number and De-
scription.
2. GOrdering quantity of screws and resistors must be multiple of 10
pes.
