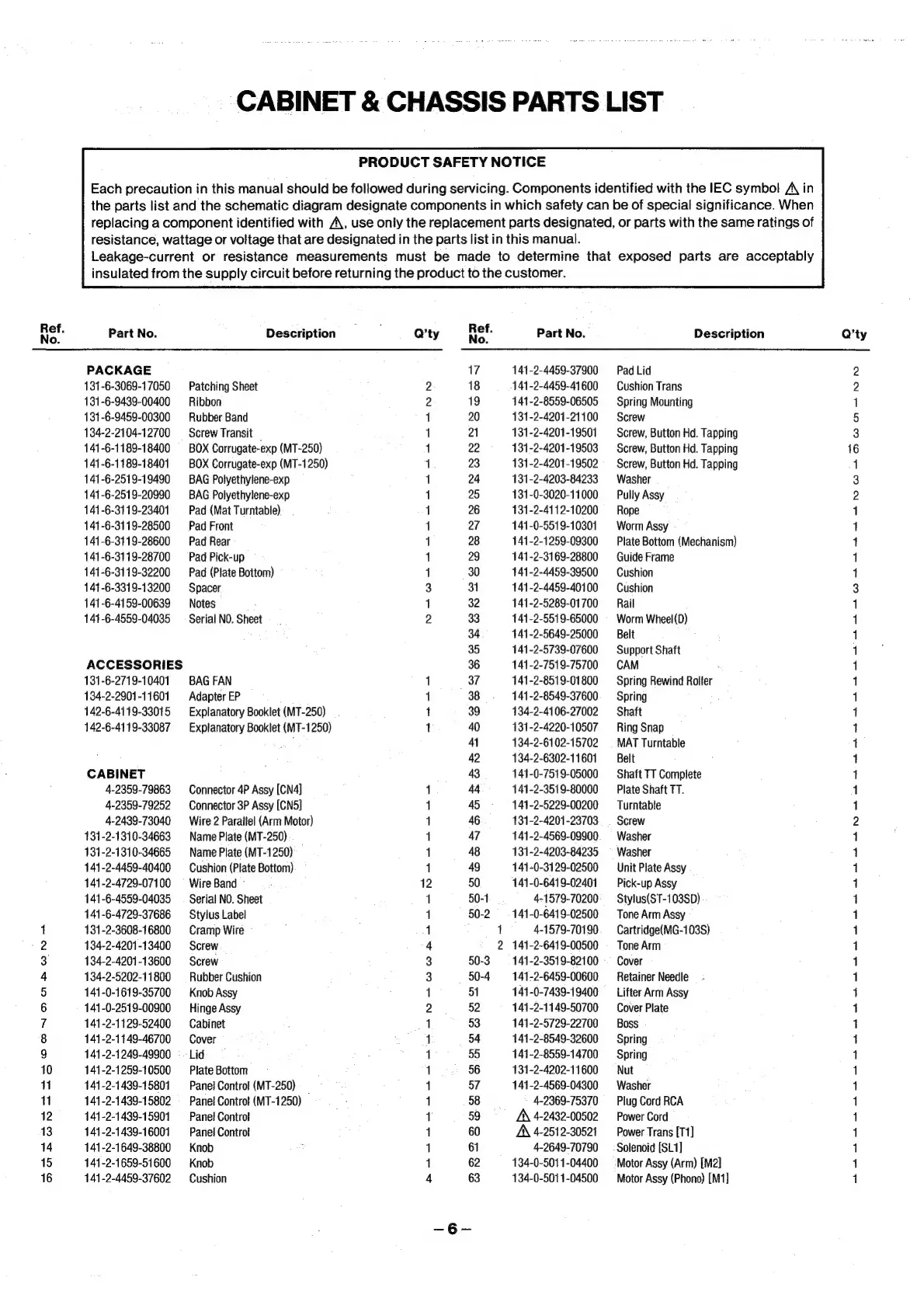

_ CABINET & CHASSIS PARTS LIST
PRODUCT SAFETY NOTICE
Each precaution in this manual should be followed during servicing. Components identified with the IEC symbol A\ in
the parts list and the schematic diagram designate components in which safety can be of special significance. When
replacing a component identified with A\, use only the replacement parts designated, or parts with the same ratings of
resistance, wattage or voltage that are designated in the parts list in this manual.
Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably
insulated from the supply circuit before returning the product to the customer.
Part No. Description Q’ty net Part No. Description
PACKAGE 17 141-2-4459-37900 Pad Lid
131-6-3069-17050 Patching Sheet 2 18 141-2-4459-41600 Cushion Trans
131-6-9439-00400 Ribbon 2 19 141-2-8559-06505 Spring Mounting
131-6-9459-00300 | Rubber Band 1 20 131-2-4201-21100 Screw
134-2-2104-12700 | Screw Transit © 1 21 131-2-4201-19501 Screw, Button Hd. Tapping
141-6-1189-18400 BOX Corrugate-exp (MT-250) 1 22 131-2-4201-19503 Screw, Button Hd. Tapping
141-6-1189-18401 BOX Corrugate-exp (MT-1250) 1 23 131-2-4201-19502 Screw, Button Hd. Tapping
141-6-2519-19490 BAG Polyethylene-exp 1 24 131 -2-4203-84233 Washer
141-6-2519-20990 BAG Polyethylene-exp 1 25 131-0-3020-11000 Pully Assy
141-6-3119-23401 Pad (Mat Turntable) 1 26 131-2-4112-10200 Rope
141-6-3119-28500 Pad Front 1 27 141-0-5519-10301 | Worm Assy
141-6-3119-28600 Pad Rear 1 28 141-2-1259-09300 Plate Bottom (Mechanism)
141-6-3119-28700 Pad Pick-up 1 29 141-2-3169-28800 Guide Frame
141-6-3119-32200 — Pad (Plate Bottom) 1 30 141-2-4459-39500 Cushion
141-6-3319-13200 Spacer 3 31 141-2-4459-40100 Cushion
141-6-4159-00639 Notes 1 32 141-2-5289-01700 Rail
141-6-4559-04035 — Serial NO. Sheet 2 33 141-2-5519-65000 | Worm Wheel(D)
34 141-2-5649-25000 Belt
35 141-2-5739-07600 Support Shaft
ACCESSORIES 36 141-2-7519-75700 CAM .
131-6-2719-10401 BAG FAN 1 37 141-2-8519-01800 Spring Rewind Roller
134-2-2901-11601 Adapter EP 1 38 141-2-8549-37600. Spring
142-6-4119-33015 | Explanatory Booklet (MT-250) 1 39 134-2-4106-27002 Shaft
142-6-4119-33087 Explanatory Booklet (MT-1250) 1 40 131 -2-4220-10507 Ring Snap
; 4 134-2-6102-15702 | MAT Turntable
‘ 42 134-2-6302-11601 Belt
CABINET 43 141-0-7519-05000 Shaft TT Complete
4-2359-79863 Connector 4P Assy [CN4] 1 44 141-2-3519-80000 Plate Shaft TT.
4-2359-79252 Connector 3P Assy [CN5] 1 45 141-2-5229-00200 Turntable
4-2439-73040 Wire 2 Parallel (Arm Motor) 1 46 131-2-4201-23703 . Screw
131-2-1310-34663 Name Plate (MT-250) 1 47 141-2-4569-09900. Washer
131-2-1310-34665 Name Plate (MT-1250) 1 48 131-2-4203-84235 ~ Washer
141-2-4459-40400 Cushion (Plate Bottom) 1 49 141-0-3129-02500 Unit Plate Assy
141-2-4729-07100 | Wire Band ~ 12 50 141-0-6419-02401 Pick-up Assy
141-6-4559-04035 — Serial NO. Sheet 1 50-1 4-1579-70200. Stylus(ST-103SD)
141-6-4729-37686 Stylus Label 1 50-2 — 141-0-6419-02500 Tone Arm Assy
131-2-3608-16800 Cramp Wire 1 4-1579-70190. Cartridge(MG-103S)
134-2-4201-13400 Screw 4 141-2-6419-00500 . Tone Arm
134-2-4201-13600 Screw 3 50-3. — 141-2-3519-82100 - Cover
134-2-5202-11800 | Rubber Cushion 3 50-4 141-2-6459-00600 Retainer Needle
141-0-1619-35700 Knob Assy 1 51 141-0-7439-19400 Lifter Arm Assy
141-0-2519-00800 Hinge Assy 2 52 141-2-1149-50700 Cover Plate
141-2-1129-52400 Cabinet 4 53 141-2-5729-22700 Boss
141-2-1149-46700 Cover 1 54 141-2-8549-32600 Spring
141-2-1249-49900 :. Lid 1 55 141-2-8559-14700 Spring
141-2-1259-10500 Plate Bottom 1 56 131-2-4202-11600 Nut
141-2-1439-15801 Panel Control (MT-250) 1 57 141-2-4569-04300 Washer
141-2-1439-15802 - Panel Controt (MT-1250) 1 58 4-2369-75370 Plug Cord RCA
141-2-1439-15901 Panel Control 1 59 A\ 4-2432-00502 Power Cord
141-2-1439-16001 Panel Control 1 60 A\ 4-2512-30521 Power Trans [T1]
141-2-1649-38800 Knob 1 61 4-2649-70790 —- Solenoid [SL1]
141-2-1659-51600 Knob 1 62 — 134-0-5011-04400 —_ Motor Assy (Arm) [M2]
141-2-4459-37602 Cushion 4 63 134-0-5011-04500 Motor Assy (Phono) [M1]
