Fishman AG-094 - Wiring and Connectivity; Switchjack Wiring Options

Wiring Options with the Fishman Switchjack

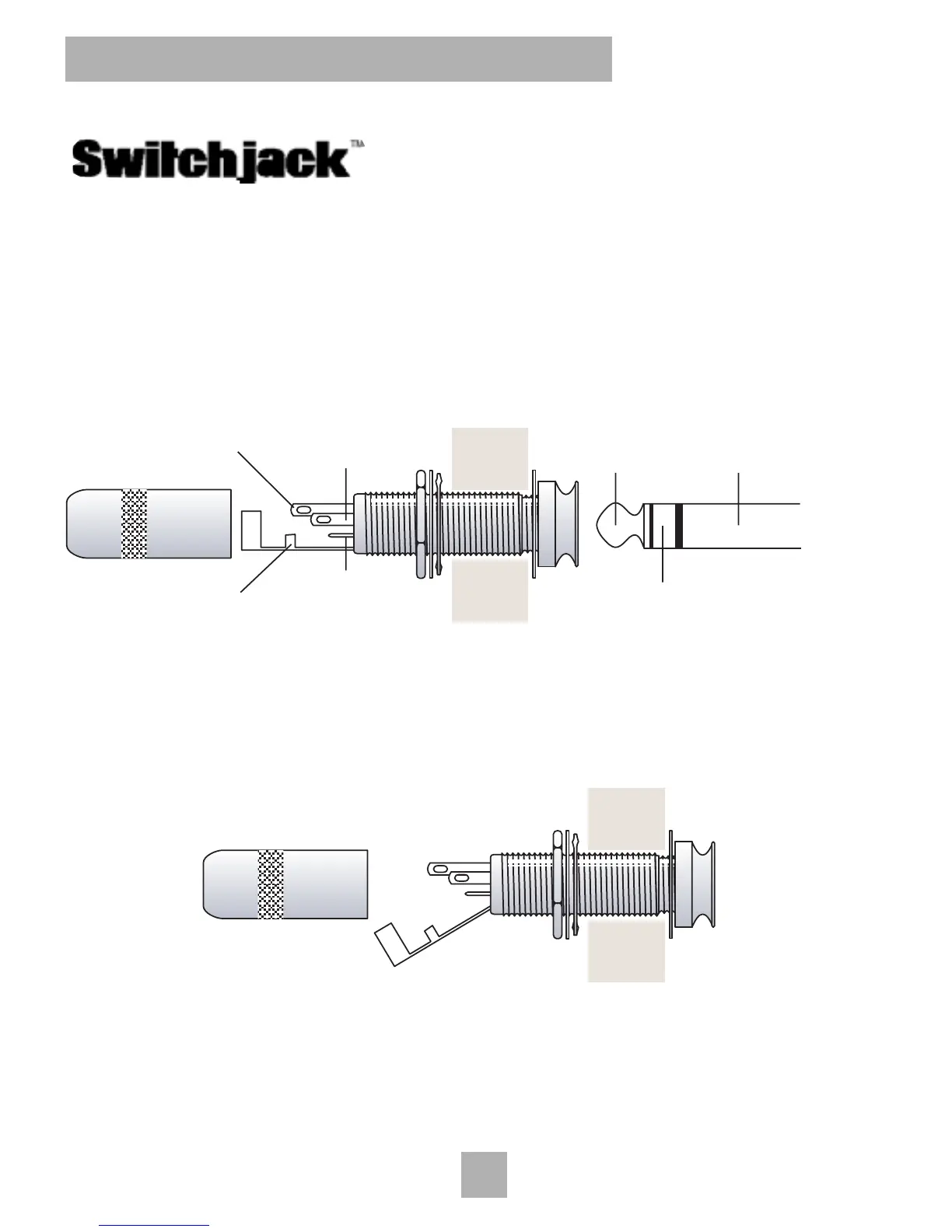

The Switchjack T-R-S-S (Tip/Ring/Sleeve/Switch) stereo switching endpin jack
allows simultaneous stereo operation and battery switching for active pickups. This
new configuration simplifies stereo wiring with many pickup combinations that were
once incompatible.
To gain better access to the Tip, Ring and Switch terminals, gently bend back the
Strain Relief/Sleeve tab, before you begin to solder.
Pages 9 & 10 illustrate the various wiring options made possible by the Switchjack.
8
8
AG Series -
AG Series -
Passive Guitar Pickup
Passive Guitar Pickup
Shield
Tip
(Short Terminal)
Ring
TipGuitar Sleeve
1/4" Stereo Plug
Switch
(Long Terminal)
Ring
(Medium Terminal)
