COIL TAPS
H
CT
+9-18V
GND
OUTPUT
CHBN
Rev 0.0
GND
HF Tilt
GND
Voice 2
Classic Neck
COIL TAPS
H
CT
+9-18V
GND
OUTPUT
CHBB
Rev 0.0
GND
HF Tilt
GND
Voice 2
Classic Bridge
25k
25k
25k
25k
.22uF
.22uF

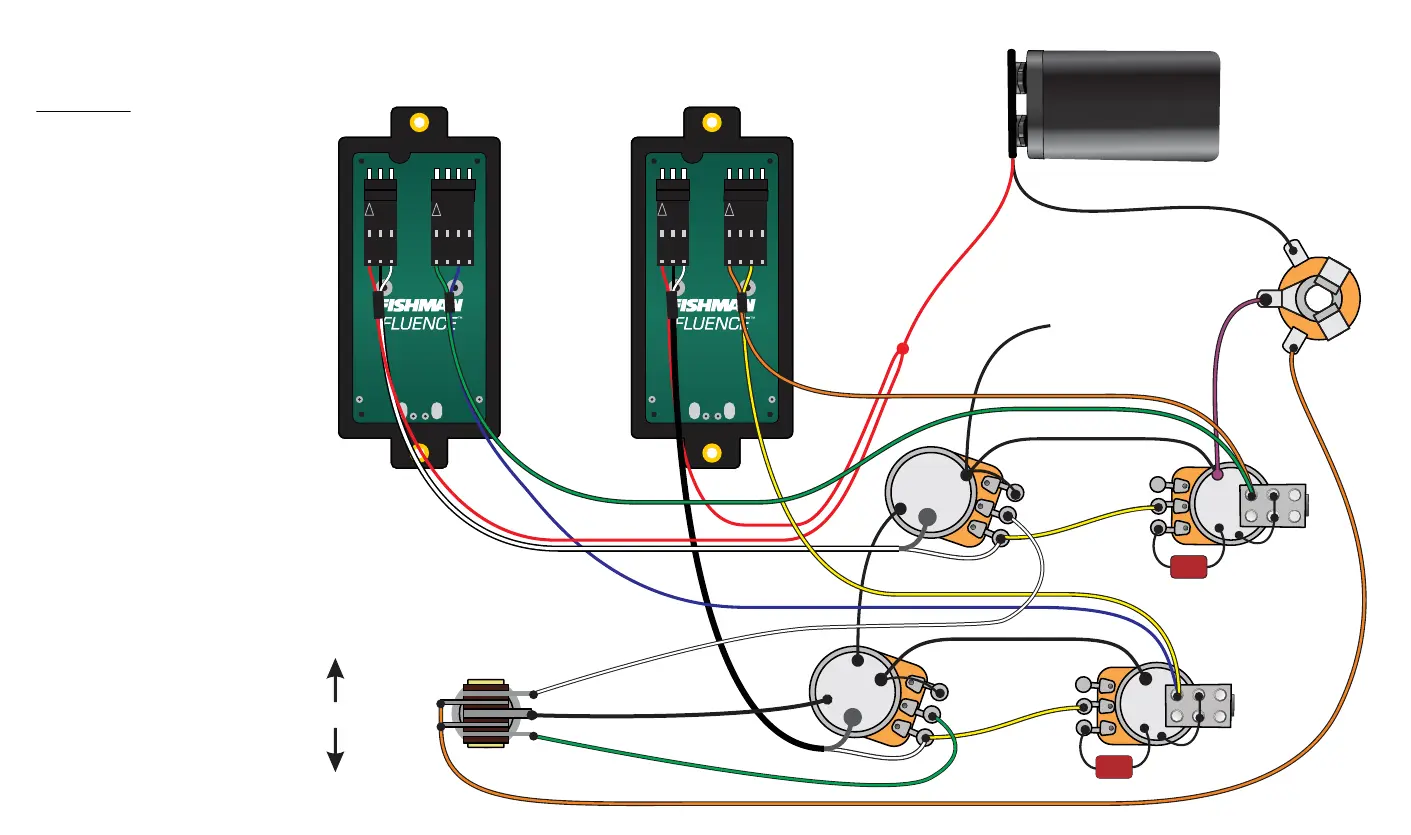

Classic Humbucker Set Wiring
Standard wiring with dual voice switching.
Pot Controls:
1. Neck Volume
2. Neck Tone (Pull for Voice 2
3. Bridge Volume
4. Bridge Tone (Pull for HF Tilt)
1
3
2
4
Gibson® is a registered trademark of Gibson Guitar Corp.
Classic Neck Pickup
Classic Bridge Pickup
Neck Pickup
Bridge Pickup
Both
Pickup Selector
3-way Switch
Gibson
®
style 3-way switch shown.
Check your switch for compatibility.
Out
Bridge
Neck
9V Battery
(–)
(+)
Output
Jack
Ring
Tip
Sleeve
Bridge
Ground
