Fishman FLUENCE Instruction Manual

(-)
Push
25k
Log
Push-Pull
Pot
Pickup
IN
Pickup
OUT
VT-IN
Pot
Function
Solder
Pads
VT-OUT
GND
GND+9V IN/OUT
Pull for
Phase
Invert
(+)
Phase Invert
Trim
-2dB to +3dB
.047uF
Phase Control - Functional Diagram and Connections
(Standard Capacitor Value
for Reactive Tone Control)
25k
Log
.047uF
VT-IN
VT-OUT
(Not Used)
Tone Wire
0.15uF Capacitor “154”
for 0.2uF Total
Pot Wired for Standard Tone Control
0.15uF
25k
Log
.047uF
VT-IN
VT-OUT
Tone IN
Tone OUT
Pot Wired for Reactive Tone Control
Tone
Reactor

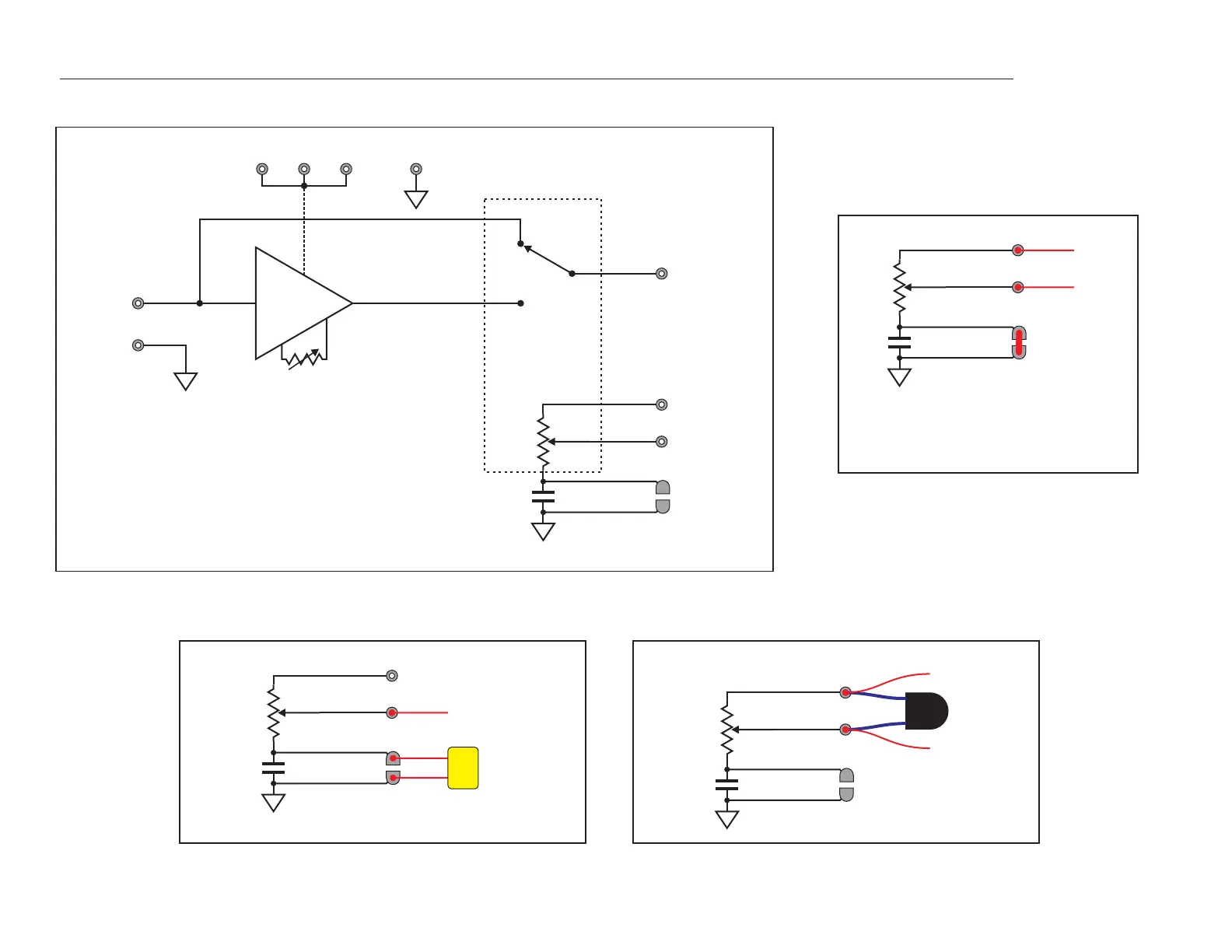

Fluence Phase Control with Push-Pull Potentiometer - Functional Schematic Diagrams
25k
Log
VT-IN
VT-OUT
IN
OUT
Bridge with Solder
for Volume function.
(Located next to
trim pot)
Pot Wired for Volume Control

Fishman FLUENCE Specifications

General

Active/Passive	Active
Power	9V battery
Output	High
Battery Life	200 hours
Noise Rejection	Excellent
Voicing	Multiple voicing options available
Compatibility	Compatible with most guitar models
