Remove the Top Section Frame to Complete the Standoff Installation: Once the bases
are partially screwed into the deck of the boat remove the Four (4) upper leg clamps and the
Canopy Frame as shown below. The reason for this is moving the clamps on the top section
frame during alignment will scratch the finish of the aluminum. This also allows the legs to be
more accurately aligned vertically.
Install Standoffs on Console: The next step is to install a standoff on either side of the

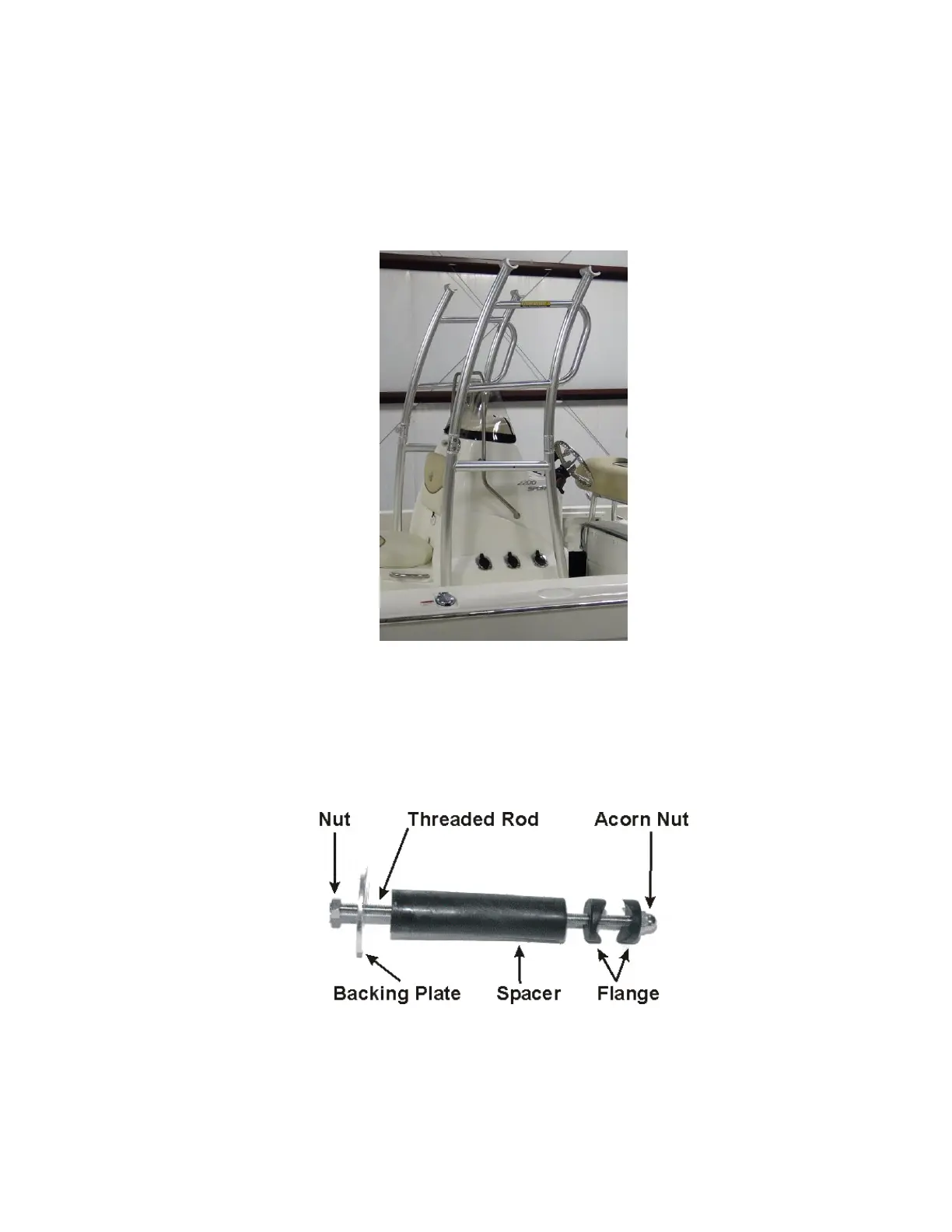

console. Note the parts of the standoff assembly in the photo below. Look under the console
to determine a location suitable for the backing plate shown below avoiding any wiring or
obstructions under the center console. It is acceptable to have the standoff come off the
cross bar, front leg or rear leg. Try and get the standoff as high as possible.
