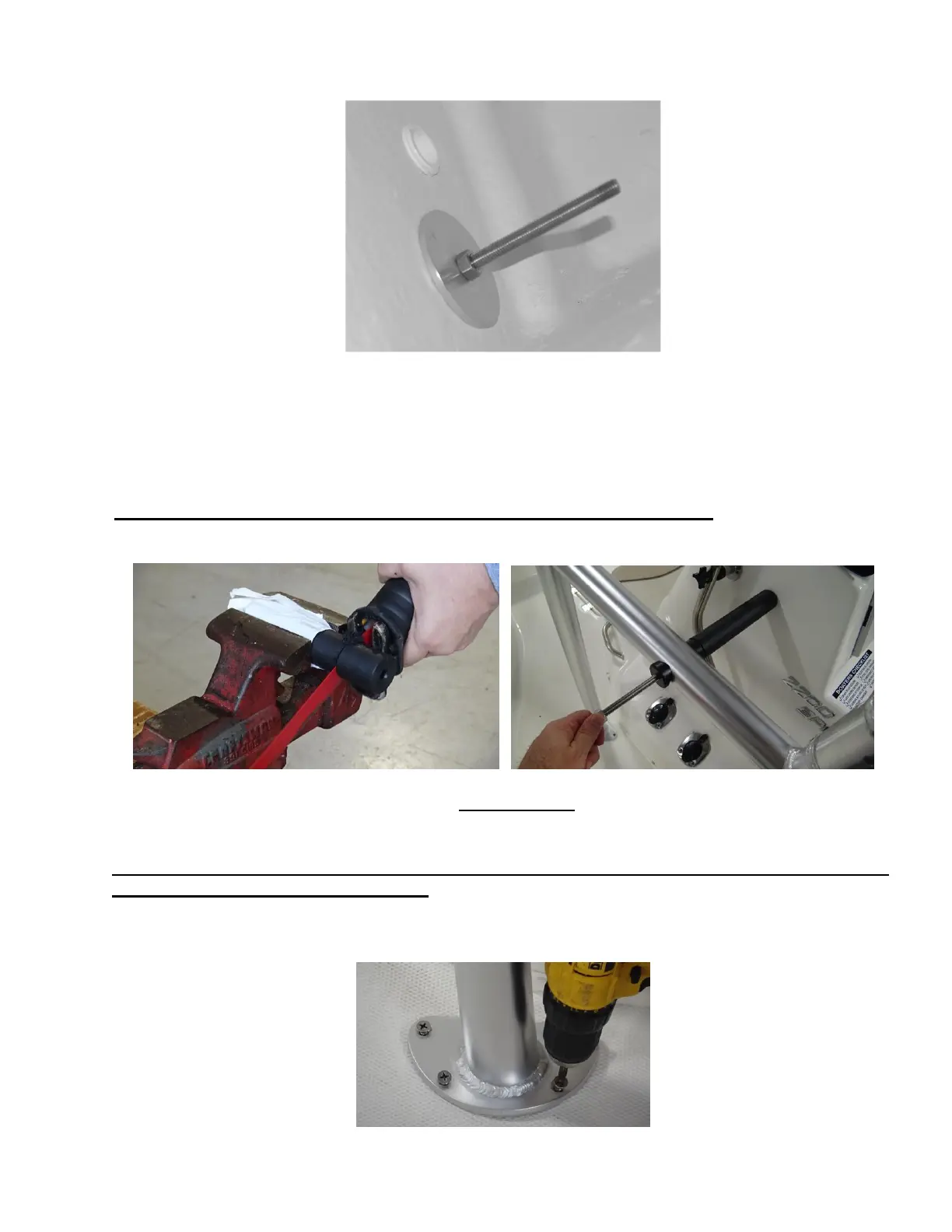

Make sure there are no obstructions where the backing plate will be located.
Use the 3/8” bit to drill through the T-Top leg and center console as shown. Use a
center punch to locate the hole on the tube and drill first with the 3/16” bit. If needed
you can drill the hole in the console from above and below the cross tube. If you do
this first drill from both directions with the 3/16” bit then both directions with the 3/8”
bit.
Measure for the spacer making sure the leg is vertical using a level. Cut the spacer to fit
and remember it’s easier to cut or sand a little more material off then to add a washer.
Complete the first standoff installation using Loctite tightening both the Acorn Nut and
Backing Plate Nut.
Follow the same directions to complete the standoff installation on the other side of the
console ensuring the leg is vertical.
Tighten all Base Screws: Tighten all sixteen (16) base screws. Do not over tighten and if
you hear noise stop.
