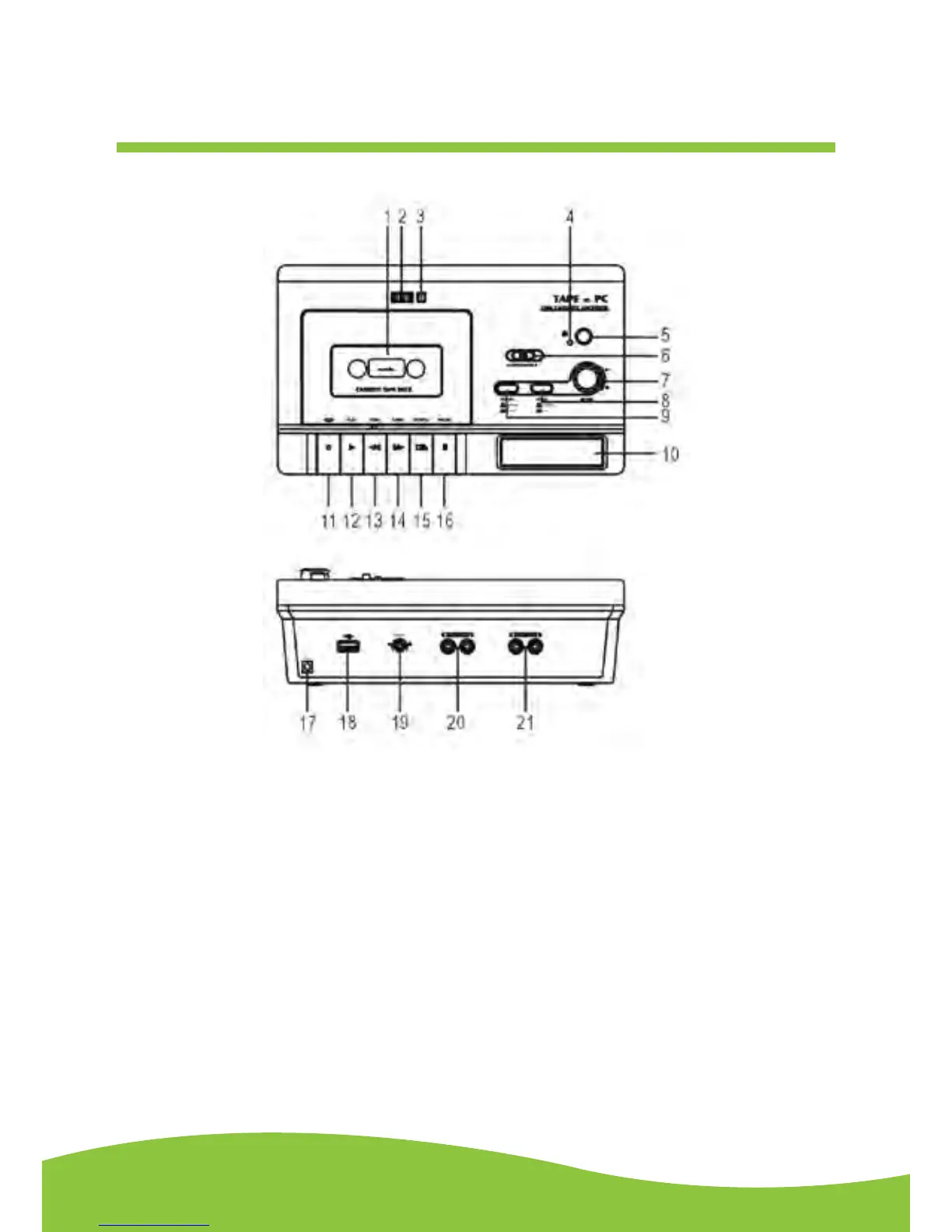

Unit diagram and component names / functions
1. Cassette Tape Door
2. Counter (Tape Revolution) Display
3. Counter Reset Button
4. Power LED Indicator
5. Power Button
6. Line In/Cassette Selection Switch
7. Recording [REC LEVEL] Level +/- Knob
8. Recording [REC] Cr02 Button
9. Play C-120 Button
10. Recording Level Indicator Display
11. Record [REC] Button
12. Play [PLAY] Button
13. Rewind [REW] Button
14. Fast Forward [F.FWD] Button
15. Stop & Eject [STOP/EJ] Button
16. Pause [PAUSE] Button
17. 9 Volt DC Power Adapter [DC IN =9V]
Connection
18. USB Connection
19. Speaker Monitor Volume +/- Knob
20. Record to [REC INPUT] Connection
21. Play to [PLAY OUTPUT] Connection
