Flagro FVO-400 - Nozzle Placement; Electrode Setting

- 15 -

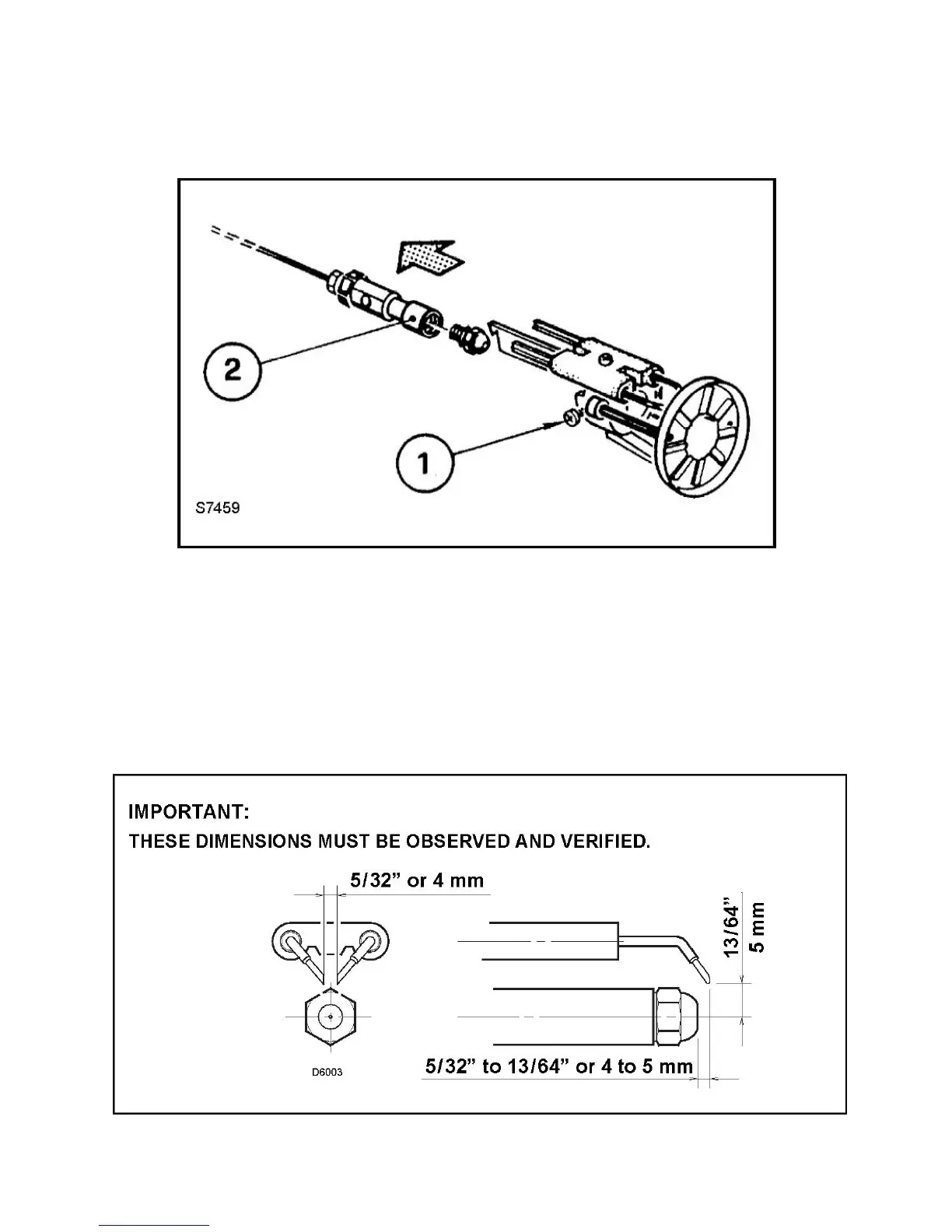

NOZZLE PLACEMENT
A) Remove the NOZZLE ADAPTER (2) from the DRAWER ASSEMBLY by
loosening the SCREW (1).
B) Insert the proper NOZZLE into the NOZZLE ADAPTER and tighten securely
(Do not over tighten).
C) Replace adapter, with nozzle installed, into drawer assembly and secure with
screw (1).
ELECTRODE SETTING
