TopMaster Air Handling unit CONTROL AND REGULATION EQUIPMENT
Sensors and accessories
Sensors and accessories
All sensors and accessories are connected to TopMaster
via connections in the electrical cabinet. Cables to exter-
nal components are secured in the electrical cabinet using
the tie-rail with a cable tie, for example.. The cable is then
placed against the cellular plastic strip on the unit (see
gure1).
When all cables are connected to terminals and the
cables are secured on the tie rail, the cover is positioned
on the electrical cabinet and secured using the appro-
priatescrews(seegure2).Thecellularplastic,whichis
semi-elastic, will slowly adapt to the shape of the cables
andindoingsothelead-throughwillseal(seegure3).
Informationabouthowthedierentsensorsand
accessoriesshouldbettedandconnectedisprovidedin
the following section.

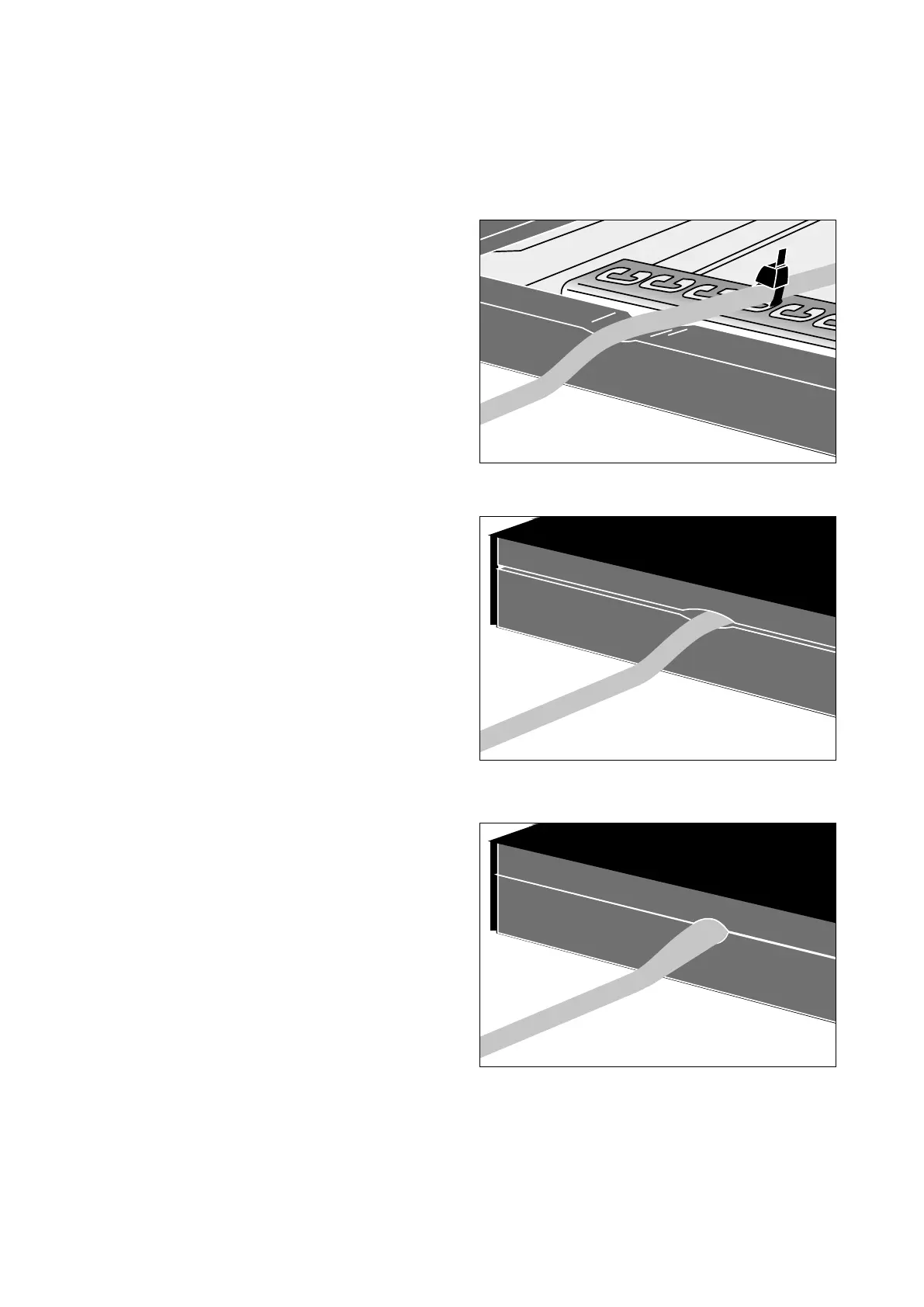

Figure 1. The cables are secured on the tie rail using a cable tie and
placed against the cellular plastic strip on the unit.
Figure 2. When the cables are connected to the terminals and then
secured to the tie rail, the cover is fitted on the electrical
cabinet.
Figure 3. The semi-elastic cellular plastic slowly adapts itself to the
shape of the cables and the lead-through seals.
