FlaktWoods STOF - Insulated Vertical Discharge Components; Uninsulated Horizontal Discharge Components

Roof Fan STOF Installation and Maintenance
4
Fläkt Woods 9734 GB 2015.06.30 Specifications are subject to alteration without notice

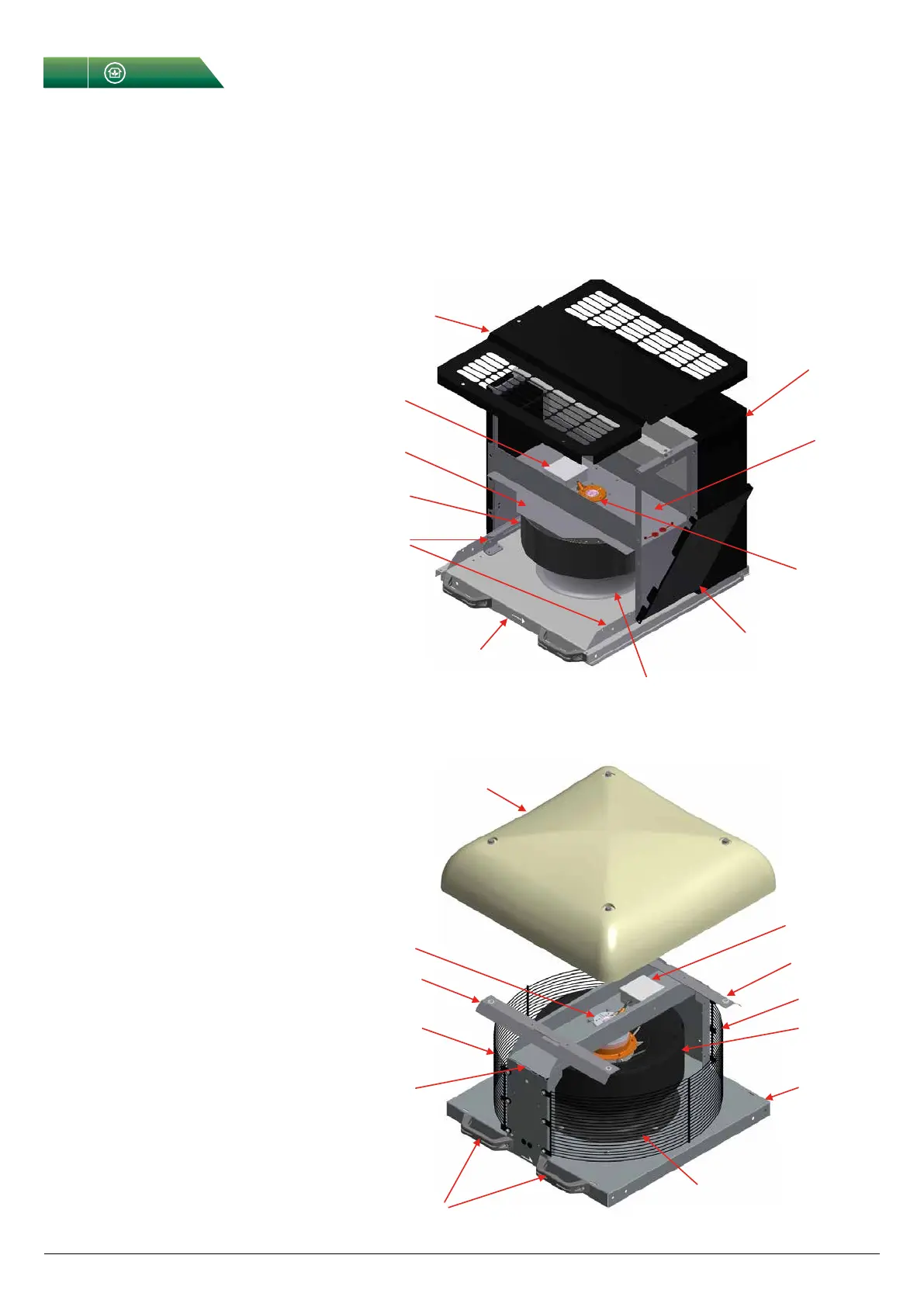

3.1.2. INSULATED VERTICAL DISCHARGE
1. Casing
2. Roof panel
3. Hatch (2 pcs)
4. Junction box
5. Bottom plate
6. Inlet cone
7. Impeller
8. Rain cover
9. Motor bracket
10. Support (1/2 pcs)
11. Motor
2
4
8
7
10
5
6
3
11
9
1
Figure 2.
Figure 3.
1
6
8
9
5
10
3
2
4
9
8
7
3. TECHNICAL SPECIFICATION, CONT.
3.1.3 UNINSULATED HORIZONTAL DISCHARGE
1. Weather cowl
2. Bottom plate
3. Inlet cone
4. Impeller
5. Motor bracket
6. Motor
7. Junction box
8. Roof beams
9. Guard
10. Handles (sizes 400…630)
