1. Short description

2. Hardware / Connections

The C3 module is a three-channel module for recording and playing back movements of con-

trollers. Those can be recorded with each channel´s individual knob. The movements will be out-

put as control voltages. The record time amounts to one minute maximal.

The track can be played once only (one shot) or in loop. The speed of the play back or the out-

put offset is controllable with the pot. Track one has an additional CV input for CV recordings.

All three tracks have a common reset input.

The track data remains permanently stored when a 3V battery is used to buffer the RAM. When

the module is switched on, the recorded data is available again.

The module can be operated unipolar or bipolar.

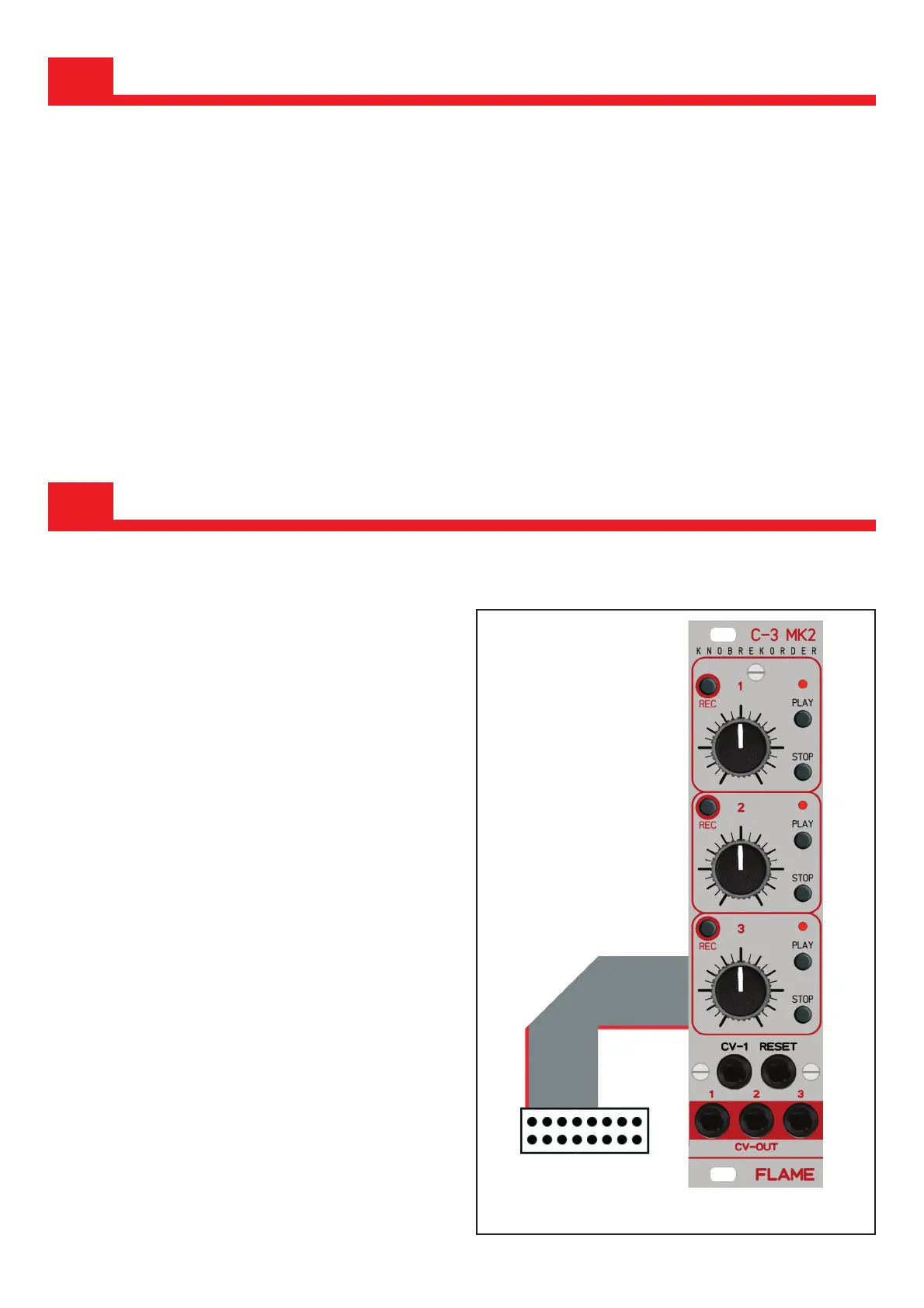

2.1 Connection to the modular system (Doepfer bus)

The module is delivered with a connected

ribbon cable for the Doepfer bus. The red

lead marks -12 volt. Connecting the module

please note the right polarity!

If the module is poled accidentally wrong

safety diodes avoid the immediate destruc-

tion of the module but further damages can-

not be excepted.

So please pay attention: Check the connec-

tion various times before switching on!

-12V

Ground

+12V
