LINE MARKING WITH YOUR KOMBI CLASSIC LINE MARKER
Marking a line
1. Ensure there is correctly mixed product in the paint tank.
2. Ensure the battery is fully charged
3. Paint/water valve is in the ‘paint’ position (lever pointing forward)
4. Ensure the flow return tap is in the OFF position (tap lever at 90 de-
grees to the hose)
5. Switch the pump ON and immediately start walking at a steady
speed along the guide line. The guide line could be a previously
marked line, string or chalk line.
6. At the end of the line switch the pump OFF and stop walking.
7. Lift the line forming discs from the surface and position the machine
at the start of the next line.
8. If there is to be a break in marking always flush the nozzle with water
using the Paint/water change over tap. Briefly flush the nozzle into a
container or on waste ground away from the pitch area. Refer to
page 12.
Marking Circles

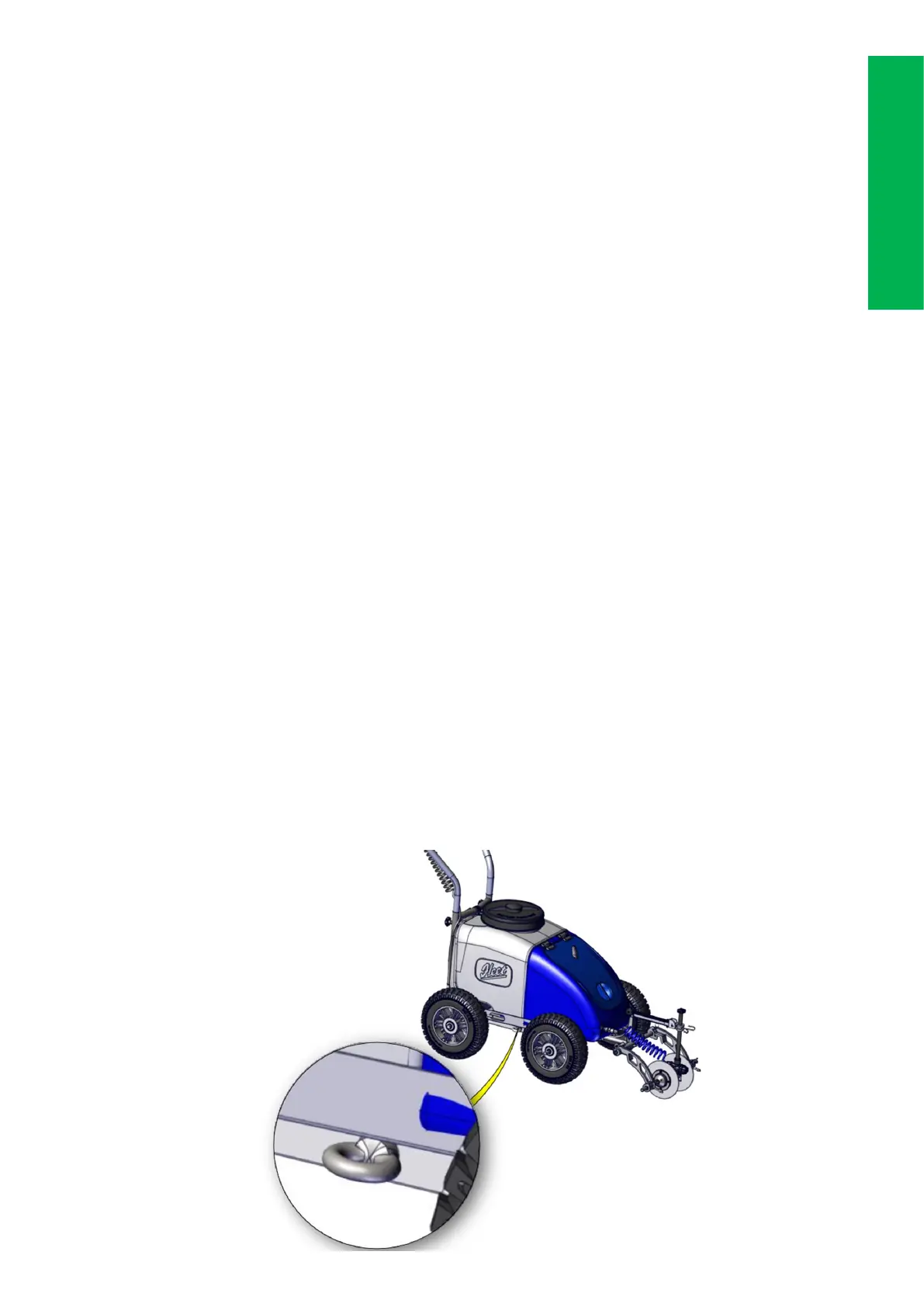

An eyelet is located on the chassis (left hand side) to aid marking circles.
This can be used with a string or chain line located off a central point al-
lowing the machine to maneuver in a uniform circle (Fig 16).
