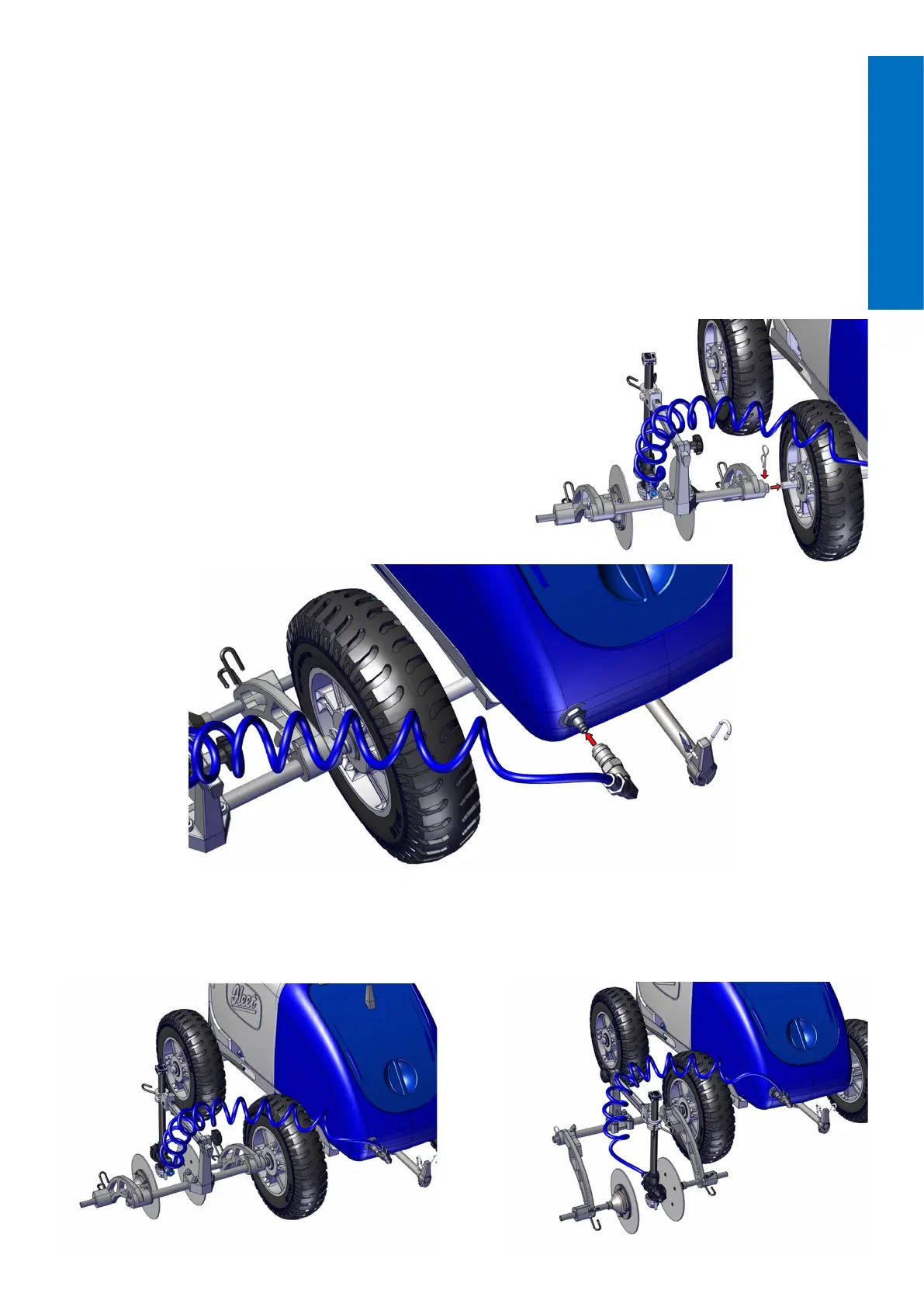

Side Mounting your Knib
1. Remove the R clip from the required side of the knib. (Fig 5)
2. Fit the pivot bar of the knib over the axle and align the holes. Refit
the R clup to secure the knib to the axle.
3. Hinge the nozzle post to the vertical position and ensure that the
nozzle is centered between the line forming discs . Adjust if
necessary.
Note: Further adjustment of the nozzle
position can be achieved by adjusting
the U bolts.
4. Arrange the blue coiled hose away
from the wheel and connect to the
bulkhead fitting (Fig 6)
Note: Knib can be fitted in either trailing (Fig 7) or forward facing
position. (Fig 8)
(Fig 5)
(Fig 6)
(Fig 7)
(Fig 8)
Assembly
5
