The knib and nozzle assembly can be fitted to the central post at the
front of the machine or to either side of the front axle.
Front mounted knib and nozzle assembly
1. Fit the knib and nozzle assembly onto the tapered stem at the front
of the machine.
2. Compress knib retainer clip and position the arm on the flat of the
support pillar.
3. Hinge the nozzle assembly to the vertical position.
4. Ensure that the nozzle is centered between the line forming disks,
adjust if necessary using the thumb screw.
5. Connect blue coiled hose to the front bulkhead connector.

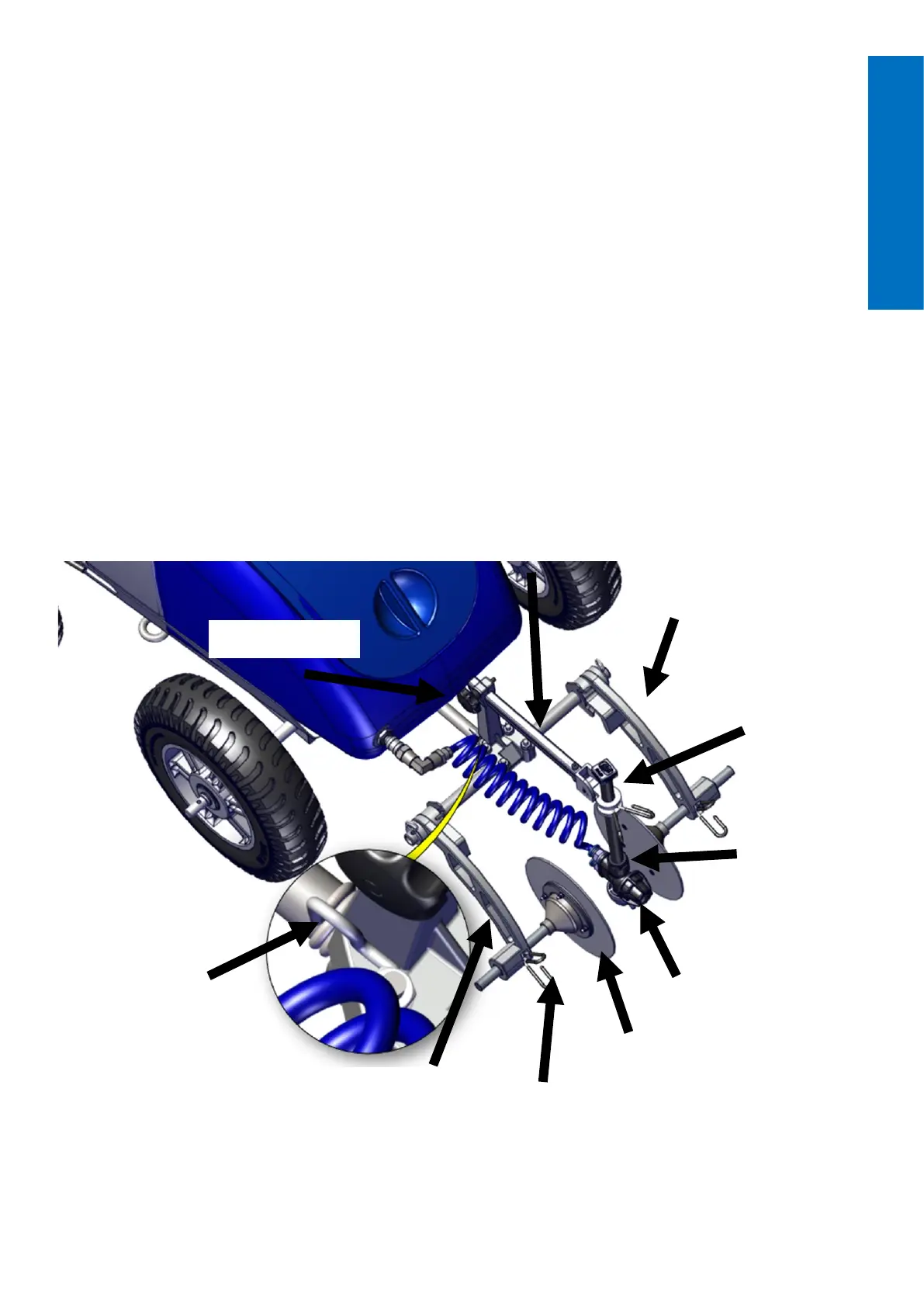

(Fig 4) Knib and nozzle assembly mounted on the front of the machine.
Thumb Screw
Nozzle Support As-
sembly
Wheeled Knib
Nozzle Height Adjustment
Spring Collar
Nozzle Assembly
Tip Assembly
Line Forming Disc
Spring Collar
Guide Arm
Knib Retainer
Assembly
4
