KNIB AND NOZZLE ASSEMBLY
The Knib and nozzle assembly is located inside the paint tank of the ma-
chine and requires some assembly before use.

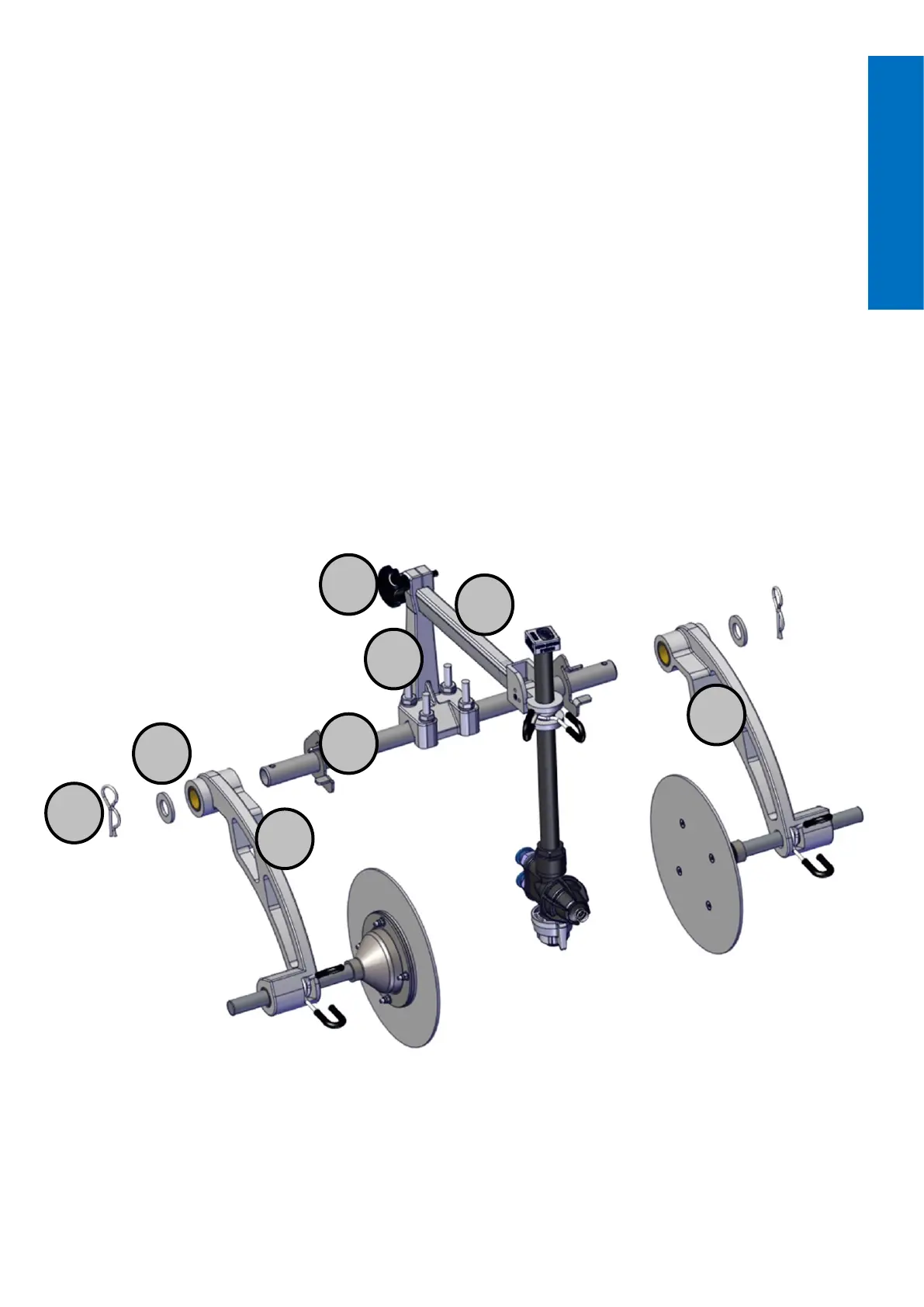

Refer to the diagram below and follow these steps.
1. Remove packaging from tank.
2. Place arms (A) & (B) over the pivot bar (C)
3. Fit a washer (D) on each end of the pivot bar shaft, secure using R
Clip (E)
4. Insert nozzle support arm (F) into the support pillar (G) and secure
with thumb screw (H).
H
G
F
B
C
D
E
A
Assembly
3
