DYNAVERT L COMMISSIONING
7 Version: 11.10.02 4Bs0503en/002

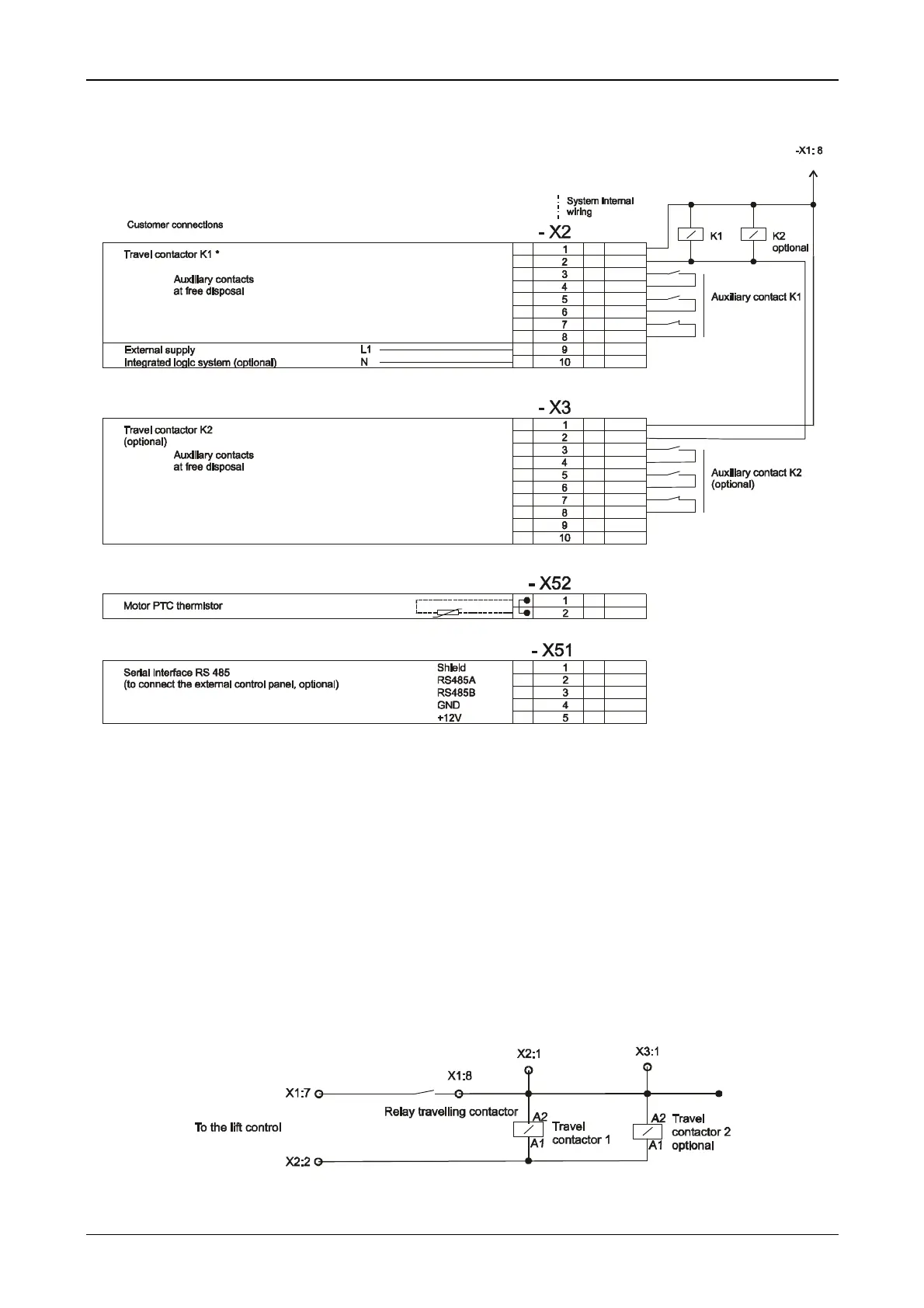

Figure 1: Connection diagram customer connections
1) connection values acc. to technical data
2) optionally operation without tacho possible. Track A in case of clockwise rotating field of the motor run 90°
before track B
3) factory setting: operation only with input "AB" X1:37
4) factory setting: parameterized to digital load measuring
The travel contactor has to be integrated into the emergency circuit of the lift system.
*Figure 2: Travel contactors
