CS 62 18.0-EC
20

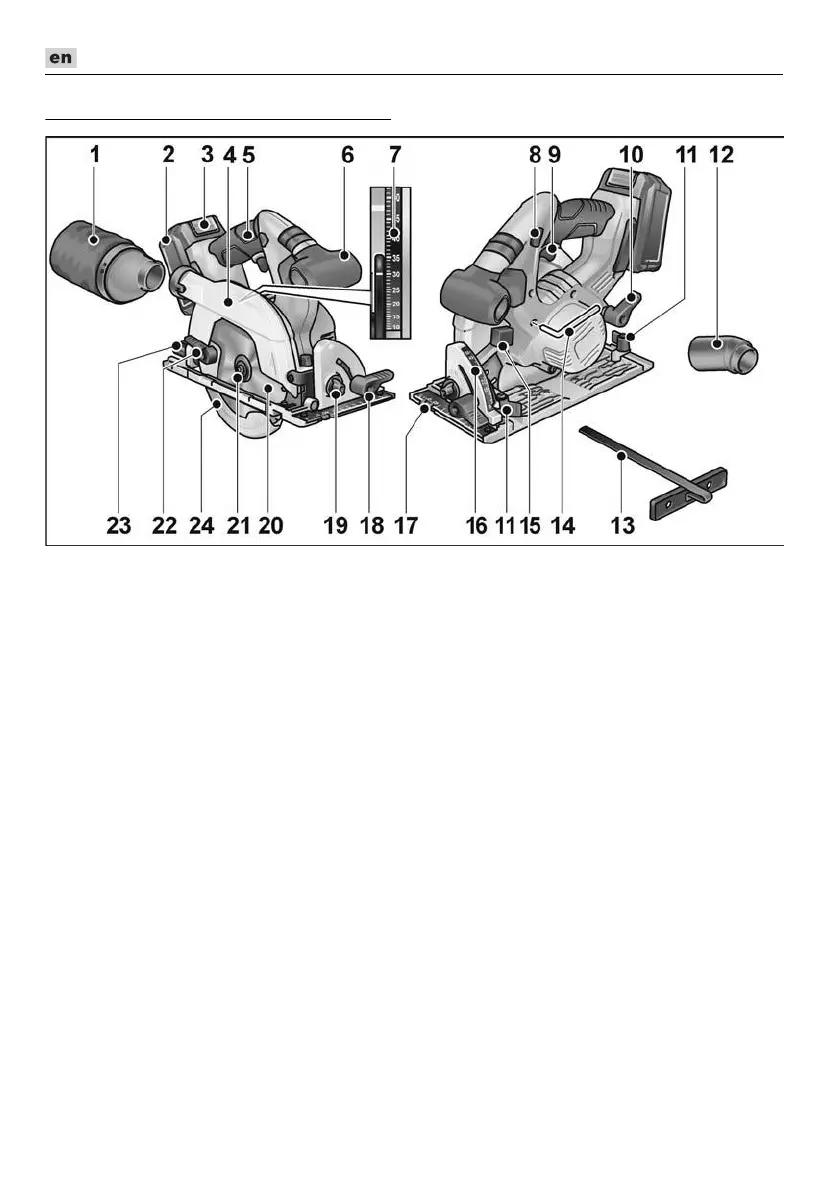

Overview
1 Filter
2Battery
3 Rechargeable battery release
4 Guard hood
5 Handle
6 Auxiliary handle
7 Cutting depth scale
8 Activation lock for ON/OFF switch
9 ON/OFF switch
10 Clamping lever for cutting depth
preselection
11 Clamping bolt for parallel stop
12 Connection
13 Parallel stop
14 Hexagon-socket key
15 Spindle locking button
16 Mitre angle scale
17 Base plate
18 Clamping lever for mitre angle
19 Angle preselection
20 Circular saw blade
21 Clamping bolt with clamping flange
22 Pull back lever for swing guard
23 Clamping bolt for mitre angle
preselection
24 Swing guard (lower guard)
