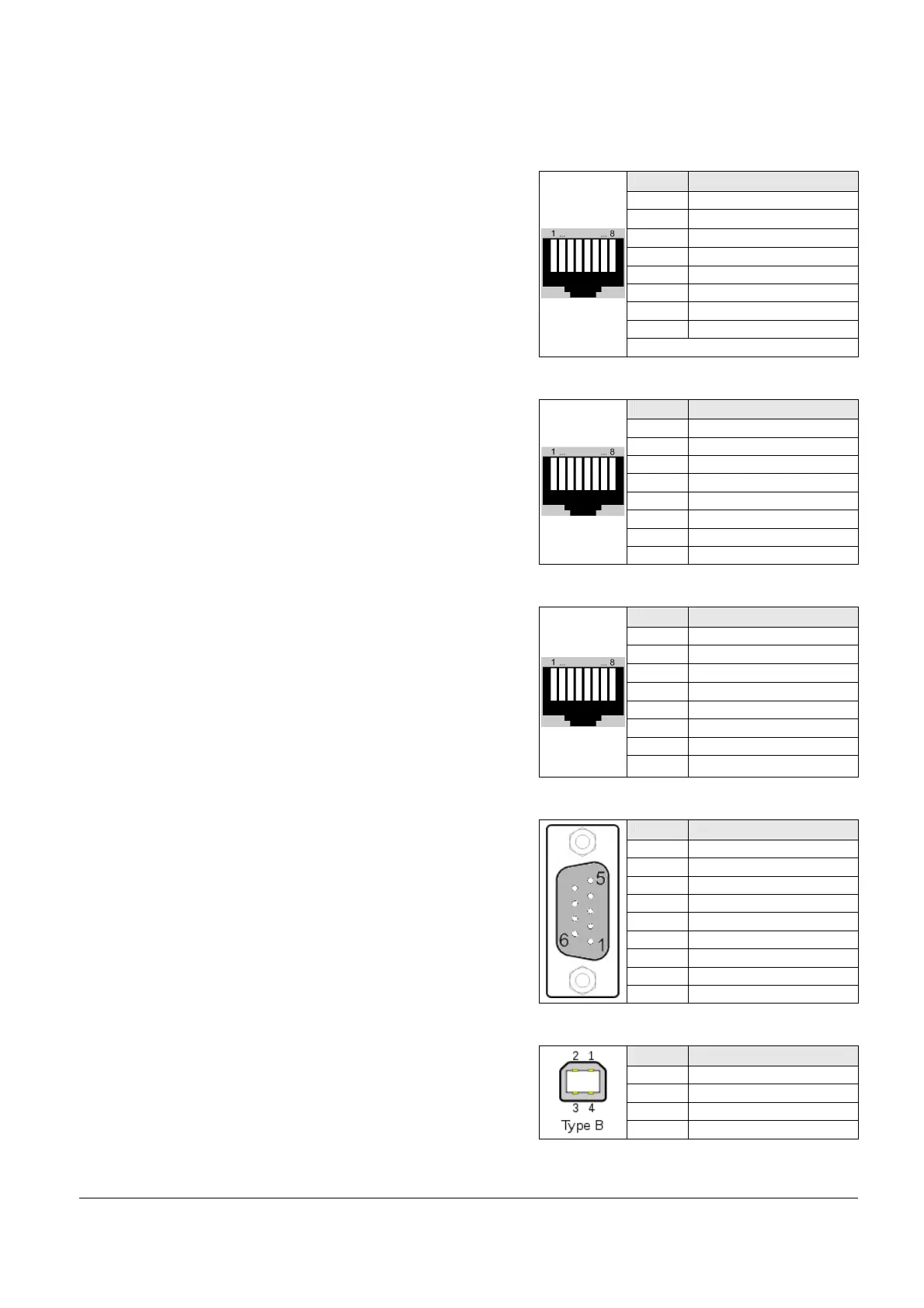

Connector Description
SHDSL Technical Specification
SHDSL Connector Specification
Specification ITU-T G.991.2 G.shdsl and G.shdsl.bis
Pin No Description
Line Code TC-PAM16/32, Extended: TC-PAM4/8/64/128 1 NC (not used)
Impedance
135Ω
2
NC (not used)
Transmit Power
13.5 (Annex A) or 14.5 (Annex B) dBm @ 135Ω
3
SHDSL interface B *
Number of Pairs 2 or 4 4 SHDSL interface A
Bit Rate 192 to 5704kbit/s, Extended: 128 to 15232kbit/s 5 SHDSL interface A
Overvoltage Protection ITU-T Rec. K.20/K.21 6 SHDSL interface B *
Connector Type RJ-45 Female, 8 pin 7 NC (not used)
8 NC (not used)
* only used in V54
Ethernet Technical Specification
Ethernet Connector Specification
Standard: IEEE-802.3, VLAN/QoS IEEE-802.1q/p
Pin No Description
Number of Interfaces 1 1 Tx+ (transmit data)
Data Rate 10/100BaseT, Full/Half Duplex 2 Tx- (transmit data)
Protocols Data, Telnet, SNMP, WEB 3 Rx+ (receive data)
Signal Level Ethernet 4 NC (not used)
MDI/MDI-X auto crossover Supported 5 NC (not used)
Auto Negotiation Supported 6 Rx- (receive data)
Connector Type RJ45 Female, 8 pin 7 NC (not used)
8 NC (not used)
E1 (G.703) Technical Specification
E1 (G.703) Connector Specification
Specification ETS 300 166, ITU-T Rec. G.703, G.704
Pin No Description
Number of Interfaces 2 1 E1 Input → CH1/2 Wire A
Line Code HDB3 2 E1 Input → CH1/2 Wire B
Impedance
either 120Ω or 75Ω
3
NC (not used)
Jitter ITU-T Rec. G.823, ETSI TS 101 135 4 E1 Output → CH1/2 Wire A
Bit Rate 2048kbit/s ± 50 ppm 5 E1 Output → CH1/2 Wire B
ESD Protection 8kV (Air discharge) 6 NC (not used)
Connector Type RJ45 Female, 8 pin 7 NC (not used)
8
NC (not used)
Monitor/Local Craft Terminal Technical Specification
Monitor/LCT Connector Specification
Specification EIA-232 / V.28
Pin No Description
Data Rate 9600 baud, asynchronous 1 Urgent Alarm Output
Protocol 8 bit, no parity, 1 stop bit , no flowcontrol 2 TXD (Transmit Data)
no linefeed with carriage return 3 RXD (Receive Data)
Signal Level V.28 4 NC (not used)
Alarm Output Spec Load Driver 5 SGND (Ground)
Max. Switching Voltage 60VDC 6 NC (not used)
Max. Switching Current 150mA 7 NC (not used)
Connector Type DB9 Female 8 NC (not used)
9 Not Urgent Alarm Output
Monitor/Local Craft Terminal Technical Specification
Monitor/LCT Connector Specification
Specification USB V2.0 full and low speed
Pin No Description
Data Rate 12Mbit/s 1 +5V
Protocol Master/Slave, Uses the USB communication 2 Data +
device class (CDC) drivers to take advantage of 3 Data -
the installed PC RS-232 software to talk over the 4 SGND
USB
Connector Type USB Type B female connector
