Power Supply Technical Specification
Power Supply Connector Specification
Specification ETSI ETS 300 132-2
Pin No Description
Voltage 38-72VDC local power 1 Negative power terminal 1
Voltage (-24V models) 18-36VDC local power 2 Protection ground
Connector Type Molex Mini-Fit 39-01-2040 3 Negative power terminal 2
Power Consumption Typically 4/6 Watts if 2/4 DSL pairs 4 Positive power terminal
Connector Type Molex Mini-Fit 39-01-2040

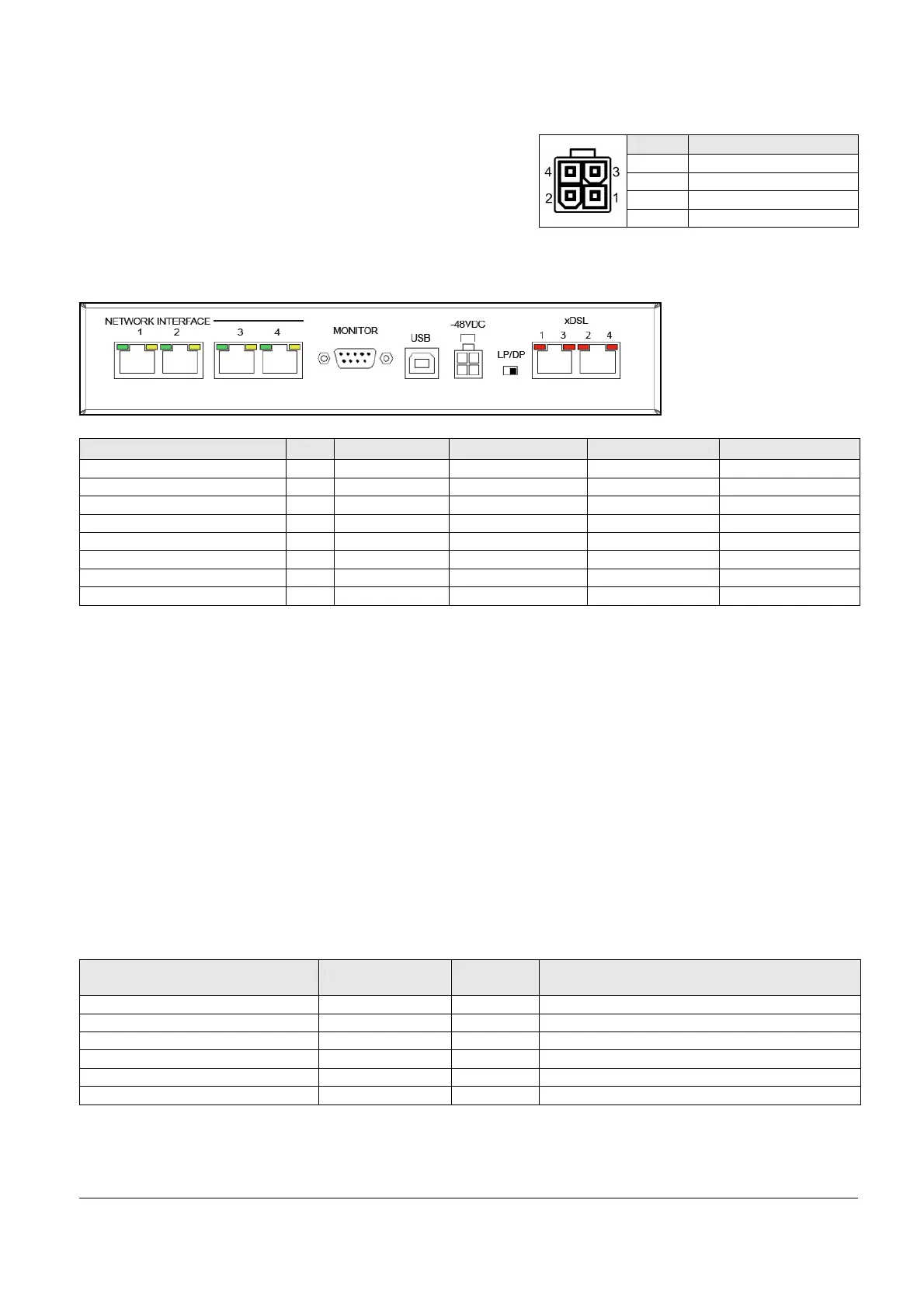

Panel Description
Connector LED RED GREEN AMBER OFF
xDSL 1 (DSL No 1) Left DSL not working DSL normal operation
xDSL 1 (DSL No 3, only V84) Right DSL not working DSL normal operation
xDSL 2 (DSL No 2) Left DSL not working DSL normal operation
xDSL 2 (DSL No 4, only V84) Right DSL not working DSL normal operation
G.703 1 or G.703 2 (NI 3 V81) Left E1 normal operation Failure / no E1 Signal
G.703 1 or G.703 2 (NI 3 V81) Right E1 Alarm E1 normal operation
Ethernet (NI 1/2 V83, 1..4 on V84) Left Blinking = Data Connection not active
Ethernet (NI 1/2 V83, 1..4 on V84) Right 100 Mbit/s data rate 10 Mbit/s data rate
* NI means NETWORK INTERFACE
Environment , EMC and Safety
Storage: ETS 300 019-1-1 Class 1.2
(-25°C … +55°C)
Transportation: ETS 300 019-1-2 Class 2.3
(-40°C … +70°C)
Operation: ETS 300 019-1-3 Class 3.2
(-5°C … +45°C)
Higher Operation Temperature range available on request (-20°C … +80°C)
Dimensionl: 216(W)x165(D)x43(H) mm
Weight < 1.0kg in Metal DIN-Rail Enclosure
Standards: EN 300386 V1.4.1:2008 EN 61000-4-2/A2:2001
EN 50121-4:2006 EN 61000-4-3:2006
EN 60950-1:2006 EN 61000-4-4:2004
EN 55022:2006, Class B EN 61000-4-5:2006
EN 55024/A2:2003 EN 61000-4-6:2007
EN 61000-4-6/A1:2001
Available Models
Ordering Code Interfaces
Power
Supply
Attention!
FG-PAM-RAIL2N-2E1B/2Eth, V81 2xDSL 2xE1 2xETH 38-72VDC
FG-PAM-RAIL2N-2E1B/2Eth-24V, V81 2xDSL 2xE1 2xETH 18-36VDC
FG-PAM-RAIL2N-2Eth, V83 2xDSL 2xETH 38-72VDC G.703 connector has no function (NI 3/4)
FG-PAM-RAIL2N-2Eth-24V, V83 2xDSL 2xETH 18-36VDC G.703 connector has no function (NI 3/4)
FG-PAM-RAIL4N-4Eth, V84 4xDSL 4xETH 38-72VDC xDSL connector has 2 DSL interfaces
FG-PAM-RAIL4N-4Eth-24V, V84 4xDSL 4xETH 18-36VDC xDSL connector has 2 DSL interfaces
* Units with Nx64 and RS-232 are coming soon, please ask the manufacturer
