FLEXSTEEL Sectional - Page 4

STEP 6
STEP 7
STEP 8

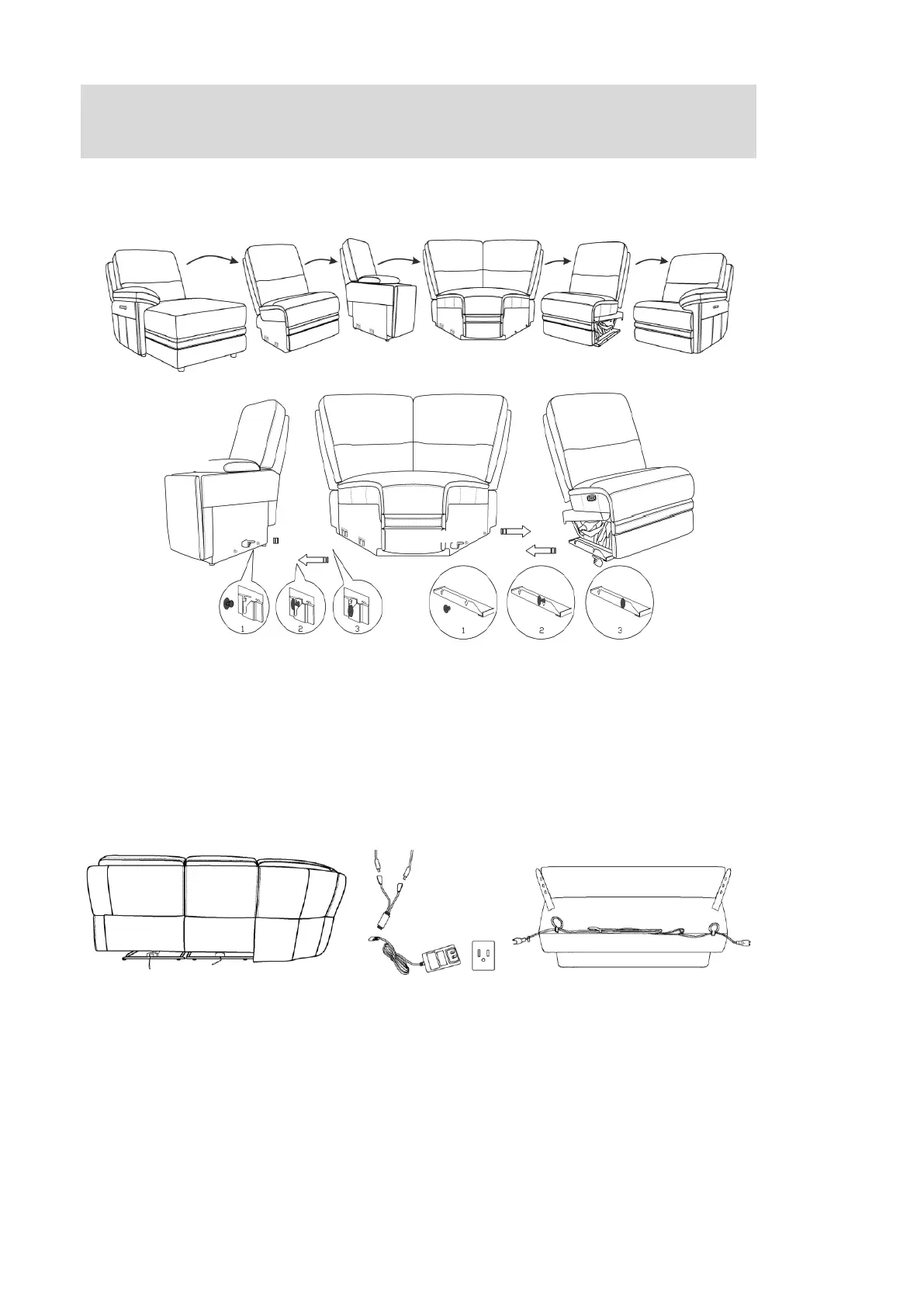

Connect both the cables coming out of the bottom back of the piece (Chaise Right / Left Arm or Power Recliner
Right / Left Arm + Armless Recliner) each to the two end of Y-Splitter (F) then to the transformer (C) directly.
(See Figure 7)
If the extension cable (E) is needed: disattach the back flaps to the bottom of the Armless Chair then remove
the extension cable (E) from the bottom. Connect the two end of the extension cable (E) each to the one cable
coming out of the bottom back of the piece and one end of Y-Splitter (F). (See Figure 8)
Plug the transformers (C) into nearby outlets, still making sure they are clear of the metal base. (See Figure 7)
Figure 7
Figure 8
Connect each individual pieces together. Raise up the item with the bolt (male connector) and connect to the
item with the female connector or the item with mechanism connecting point. (See Figure 6)
Figure 6
Assembly Instructions 4/5
