Document Title Document No. Revision
Date Section
Supplement S3 to the AMM CTLS-LSA –
CTLS-LSA with ROTAX 912iS
AF 0480 0011 00 05-Aug-12 71-00-3
Approval Ref.: Approved on the Basis of Manufacturer Self Declaration
71-00.3.1.1 Type of Maintenance
Line
71-00.3.1.2 Minimum Level of Certification
Pilot/Owner
71-00.3.1.3 Procedure
A. Recommended Special Tools and Parts
Item Quantity Unit
None

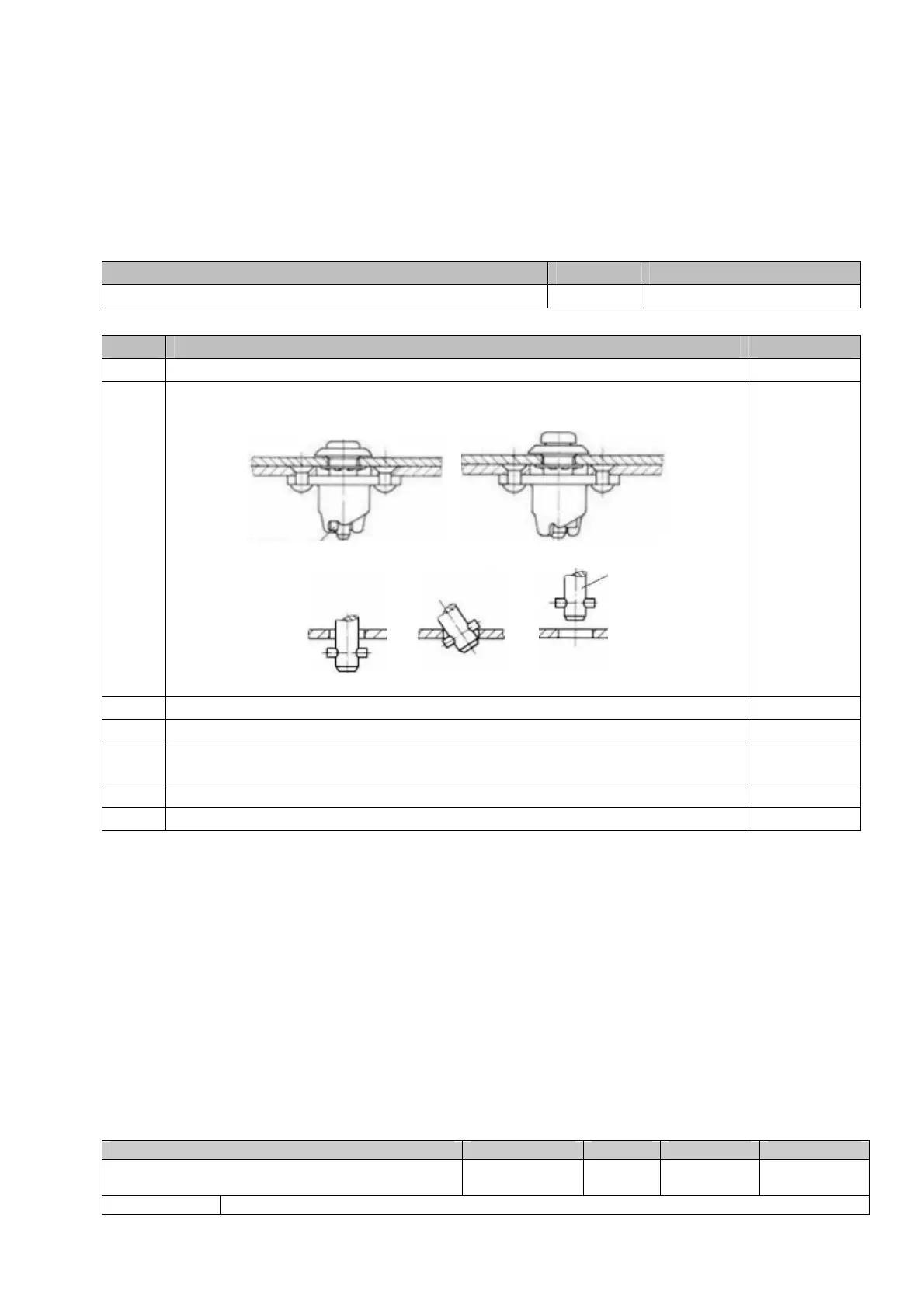

B. Engine Cowlings Removal
Step Action Reference
1 Place chocks on the wheels and confirm that the ignition switch is OFF 71.2.1
2
Unscrew 13 Camlock Studs 7 of upper cowling:
Press and turn with the screwdriver to quarter-turn;
Remove Camlock Studs.
Remove Upper Cowling 1.
3 Loosen clamp on the hose routed to the airbox. 71-00.3.3.3
4 Unscrew 6 Camlock Studs 7 of lower cowling. Remove Lower Cowling 2.
5
Inspect the Cowlings and Camlock Studs for damage. Replace Camlock Studs if
required
6 Clean cowlings
7 Install Cowlings in reversed direction order
