Supplement S3 to the AMM CTLS-LSA –
CTLS-LSA with ROTAX 912iS
AF 0480 0011 00 05-Aug-12 76-00-4
Approval Ref.: Approved on the Basis of Manufacturer Self Declaration
76-00.3 Maintenance Practices
76-00.3.1 Throttle Box Inspection
76-00.3.1.1 Type of Maintenance
Line
76-00.3.1.2 Minimum Level of Certification
Repairman, Light Sport Aircraft-Maintenance (RLSA-M) or higher
76-00.3.1.3 Procedure
A. Recommended Special Tools and Parts
Item Quantity Unit
None

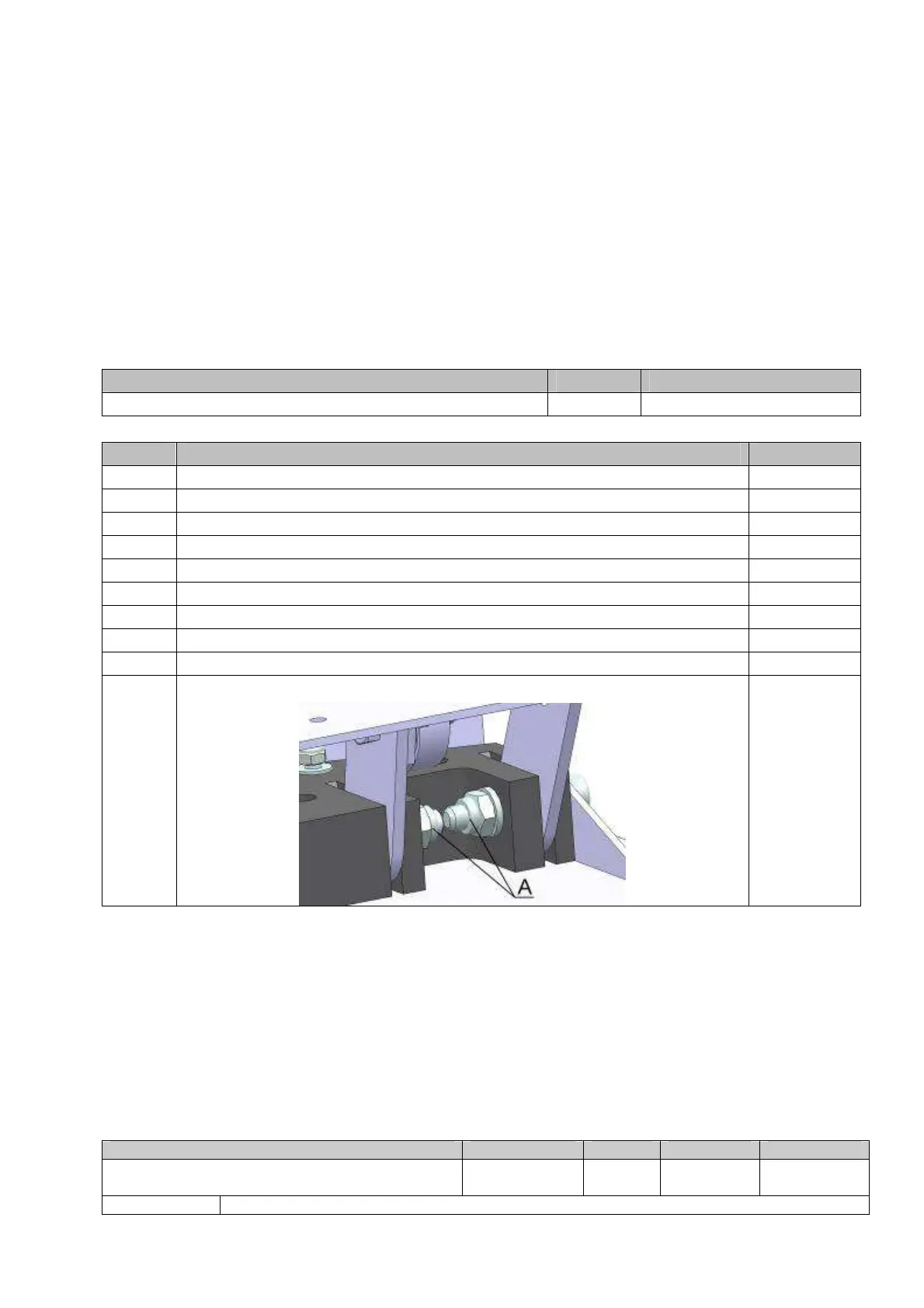

B. Throttle Box Inspection (Fig. 76-00-2).
Step Action Reference
1 Unscrew 4 bolts that fix the covering plate (2).
2 Unscrew bolt M6 (5) that holds the grips (3, 4) of the throttle lever (21).
3 Remove the grips (3, 4).
4 Unscrew bolt M6 (8) that holds the grips (6, 7) of the brake lever (25).
5 Remove the grips (6, 7).
6 Remove the covering plate (2).
7 Inspect the throttle cables/ropes for integrity.
8 Inspect the control levers support (10) for signs of wear.
9 Check control levers for smooth operation without play or undue friction.
10
When necessary adjust the friction in levers support by nuts (A)
