FLIGHT DESIGN CT - Chapter 78 - Exhaust; 78-00.1 General; 78-00.2 Description

Document Title Document No. Revision Date Section
Supplement S3 to the AMM CTLS-LSA –
CTLS-LSA with ROTAX 912iS
AF 0480 0011 00 05-Aug-12 78-00-1
Approval Ref.: Approved on the Basis of Manufacturer Self Declaration
CHAPTER 78 – EXHAUST
Contents
78-00.1 General
78-00.2 Description
78-00.3 Maintenance Practices
78-00.3.1 Exhaust Muffler and Pipes Removal
78-00.3.2 Exhaust Muffler and Pipes Inspection
78-00.1 General
This chapter provides description and information concerning maintenance of engine
exhaust.
78-00.2 Description
The powerplant exhaust system consists of the muffler and exhaust pipes. The exhaust
gases from the cylinders go to the muffler via the exhaust elbows. The muffler has an
exhaust pipe which directs the exhaust gases outside the engine compartment. The
exhaust elbows are bolted directly to the cylinders with lock nuts. The muffler and exhaust
elbow connections use ball joints and springs.

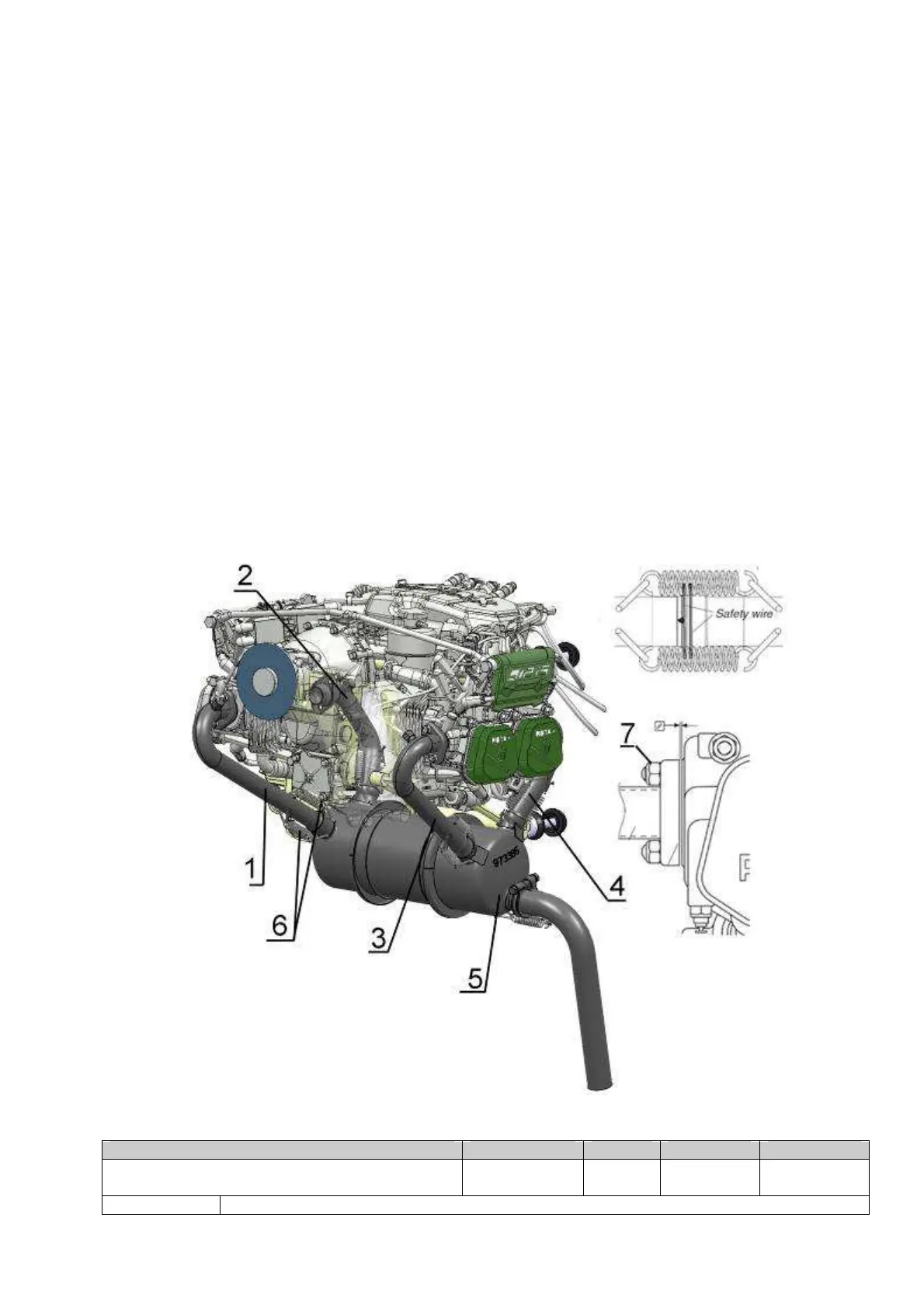

Fig. 78-00-1. Exhaust System
