Supplement S3 to the AMM CTLS-LSA –
CTLS-LSA with ROTAX 912iS
AF 0480 0011 00 05-Aug-12 79-00-1
Approval Ref.: Approved on the Basis of Manufacturer Self Declaration
CHAPTER 79 – OIL SYSTEM
Contents
79-00.1 General
79-00.2 Description
79-00.3 Maintenance Practices
79-00.3.1 Oil System Inspection
79-00.3.2 Oil Hoses and Lines Replacement
79-00.1 General
This chapter provides description and information concerning maintenance of engine oil
system.
79-00.2 Description
The oil system is available in two variants:
− with oil thermostat;
− without oil thermostat.
Configuration of oil system with oil thermostat installed is shown in Fig. 79-00-1.
Configuration of oil system without oil thermostat is shown in Fig. 79-00-2.
Both oil system configurations make use of the following components:

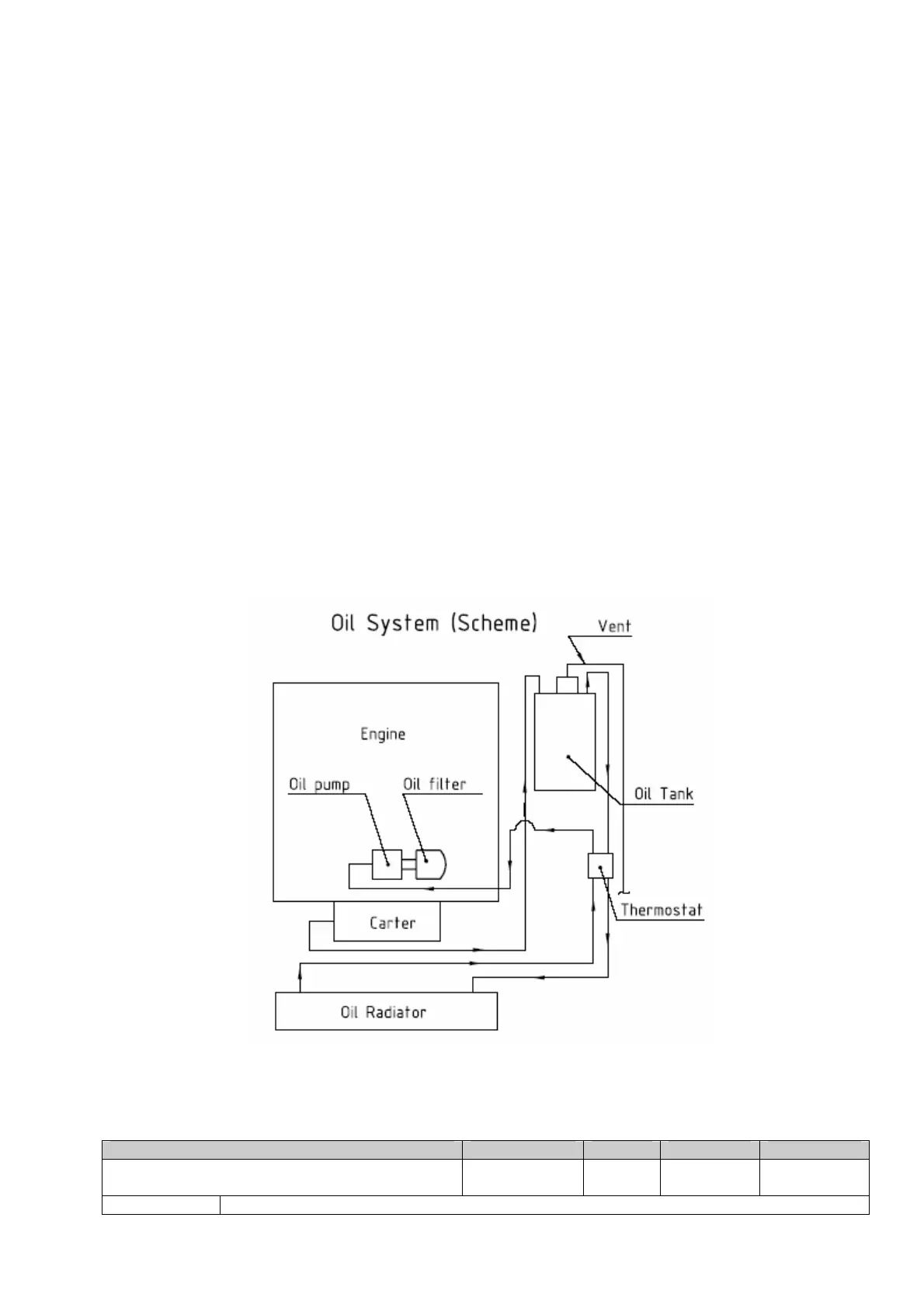

Fig. 79-00-1. Oil System diagram (with thermostat)
