Installation
Sl
o
t
Cover
C
Step4
Step 5

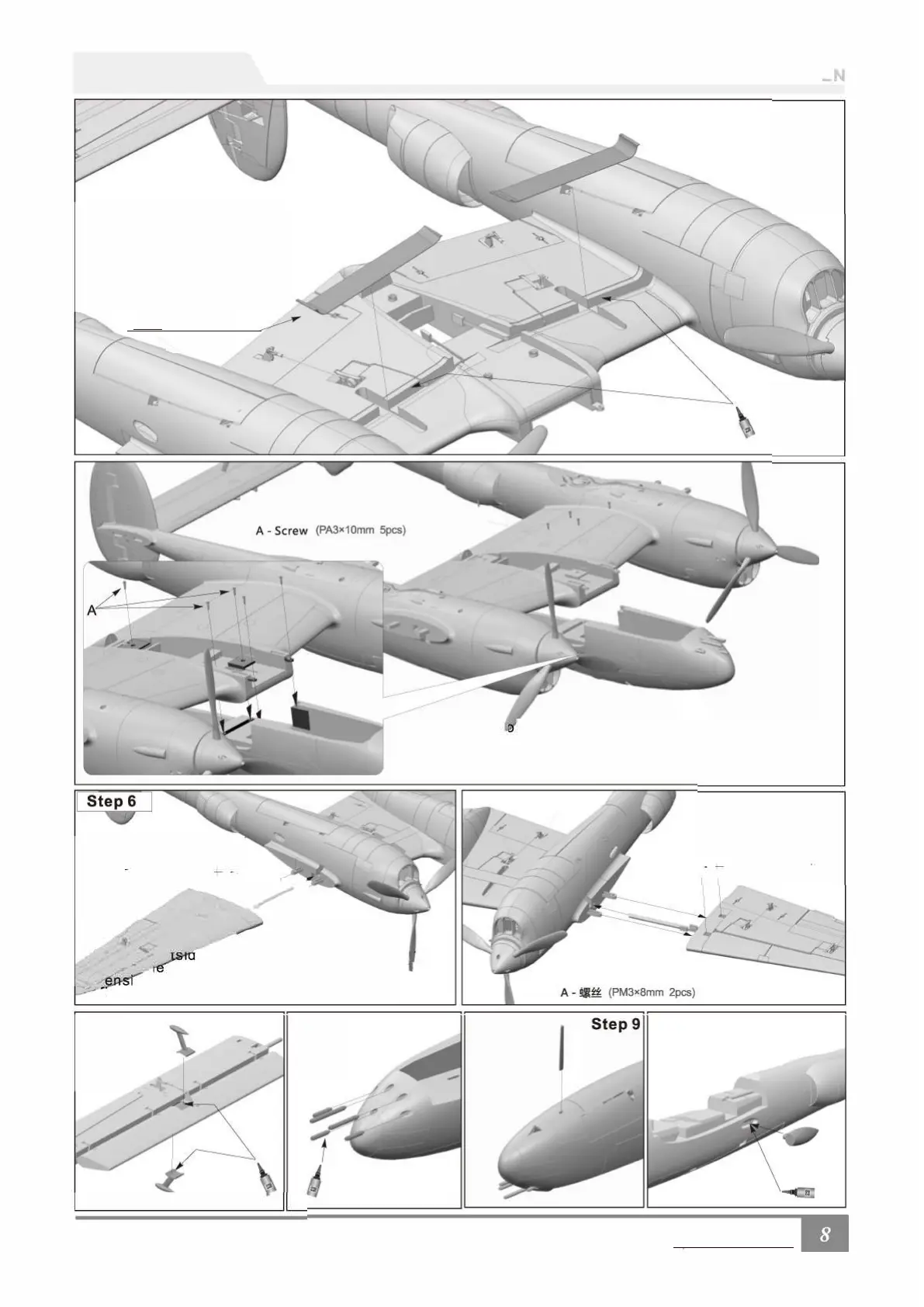

Use the 5 screws to secure the gondola to the under surface of main
wing center section. Run all extension wires, through main wing slot and
feed into the tail of the gondola. Finally, plug the extension wires into the
integrated circuit module and ensure that they are plugged into the
correct inputs, refer to the mapping on the circuit module.
A !
(PM3x8mm 2pcs) _ i
Step 7 Step 8
P-38L LIGHTNING
lt•m Na.: FLW3D1
Step 7
Pliqh
Insert the outer main wings to the support rods from
the booms and connect the servo and LED wires to
the extension wires from the booms, then, using 2
(PM3x8mm) screws, attach the outer wings to the
booms.
to
To Next Page
