Programming Menu
6

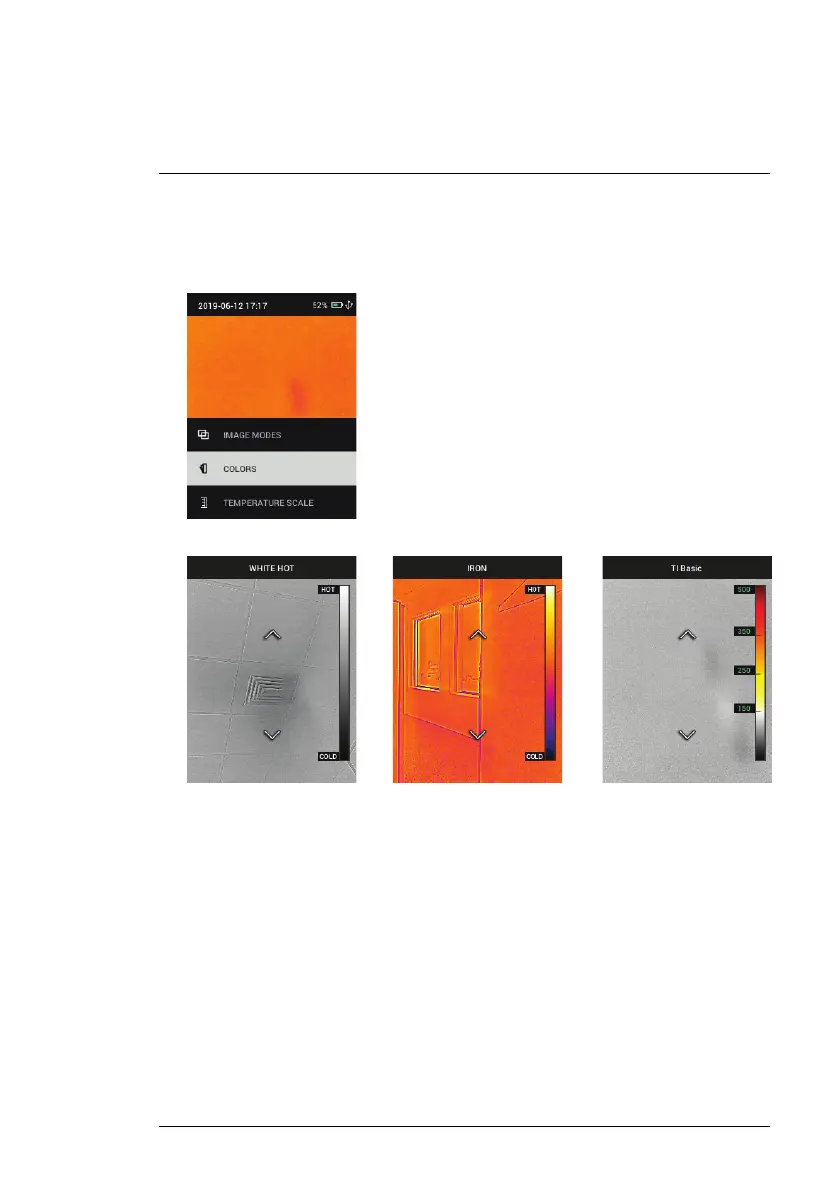

3. Colors: Press MENU at the Colors menu and use the arrow buttons to se-
lect a color palette: Iron, White hot, and T1 Basic (default). Note the differ-
ences in the bar graph scale for each display type. Press MENU to
confirm selection.
4. Temperature Scale: Set the sensitivity (gain) to LOW, HIGH, or AUTO.
With the sensitivity set to LOW, the temperature range is 14 ~ 752℉ (–10
~ 400℃) and the low sensitivity range indicator appears (upper left of dis-
play), see Figure 4.2, Display Description. With the sensitivity set to HIGH
the temperature range is 14 ~ 284℉ (–10 ~ 140℃) and the low sensitivity
range indicator switches OFF. Set to AUTO to have the camera decide
which range is most suitable for any given image.
#NAS100007; r. AA/59809/59809; en-US
