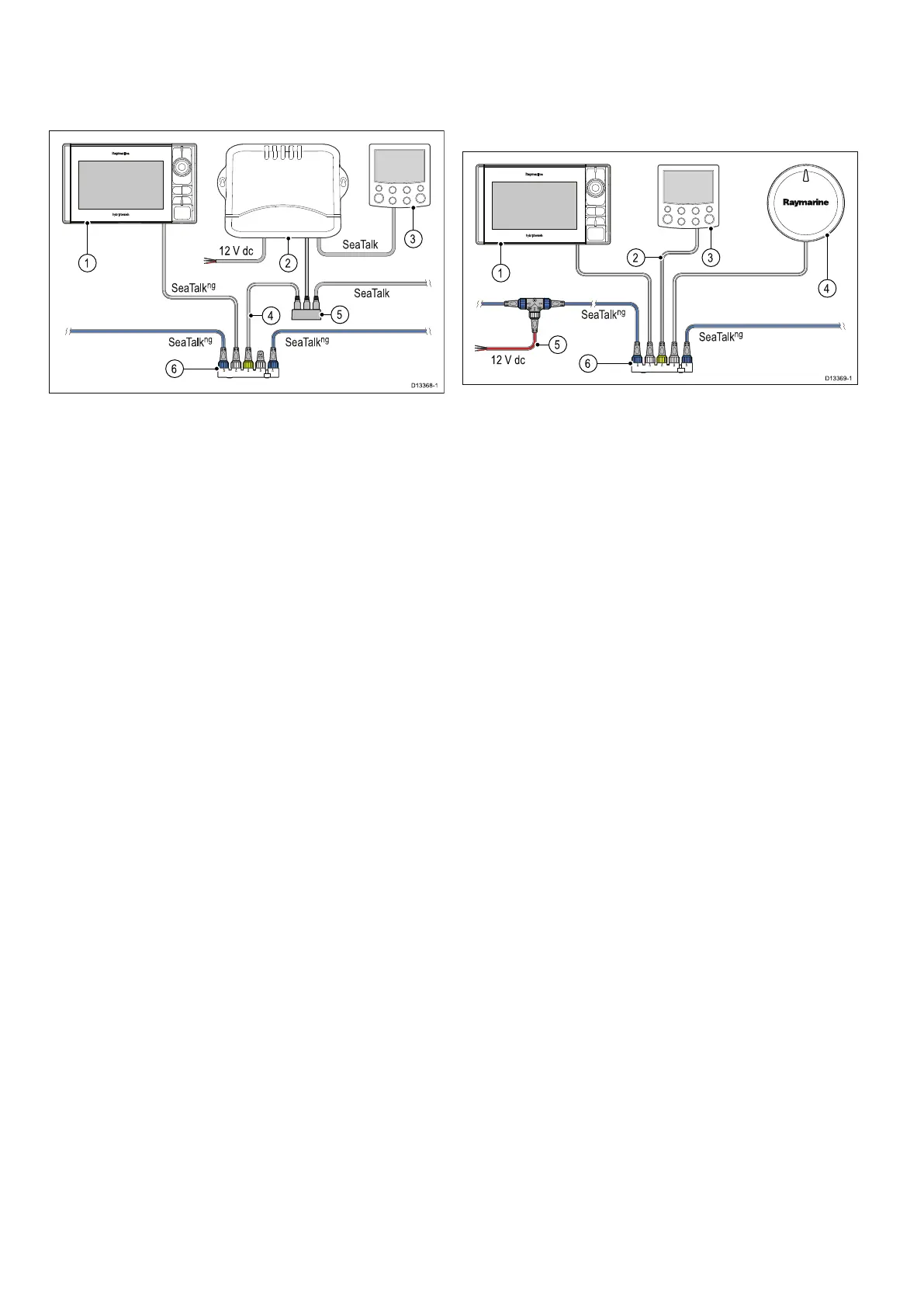

4.4SeaTalkautopilotconnection
TheSeaTalk-SeaTalk
ng
convertercanbeusedto
connectlegacySeaTalkautopilotsystemstoa
SeaTalk
ng
bus.
D13368-1
1 2
3
6
12 V dc
5
SeaTalk
SeaTalk
SeaTalk
ng
SeaTalk
ng
SeaTalk
ng
4
1.SeaTalk
ng
MFD(MFDsrequireaseparate
powersupply.)
2.SeaTalkautopilot(powereddirectly)
3.SeaTalkpilotcontroller(poweredfromthe
SeaTalkautopilot.)
4.SeaTalk-SeaTalk
ng
adaptorcable(A22164)
(connectiontoseparatedSeaTalkspur.)
5.SeaTalk3–wayblock
6.SeaTalk-SeaTalk
ng
converter(poweredfromthe
SeaTalkautopilot.)
4.5SeaTalkpilotcontrollerconnection
TheSeaTalk-SeaTalk
ng
convertercanbeusedto
enablecontrolofSeaTalk
ng
autopilotsusinglegacy
SeaTalkpilotcontrollers.OtherSeaTalkdevicescan
beconnectedtotheSeaTalk
ng
businthesameway.
00
SeaTalk
ng
5
12 V dc
SeaTalk
ng
D13369-1
1
3
4
6
2
1.SeaTalk
ng
MFD(MFDsrequireaseparate
powersupply.)
2.SeaTalk-SeaTalk
ng
adaptorcable(A22164)
3.SeaTalkpilotcontroller(poweredfromthe
SeaTalk
ng
bus.)
4.SeaTalk
ng
autopilot
5.SeaTalk
ng
12Vdcpowersupplyconnection
6.SeaTalk-SeaTalk
ng
converter
22
SeaTalk–SeaT alkngconverter
