FLIR T Series Quick Start

QuickStart: Flir T/B Series T/B200-400
© 2011 The Snell Group / 322 N. Main St. / Suite 8 / Barre, VT / 05641 / 800.636.9820 / www.thesnellgroup.com
Flir T/B-Series Page 2

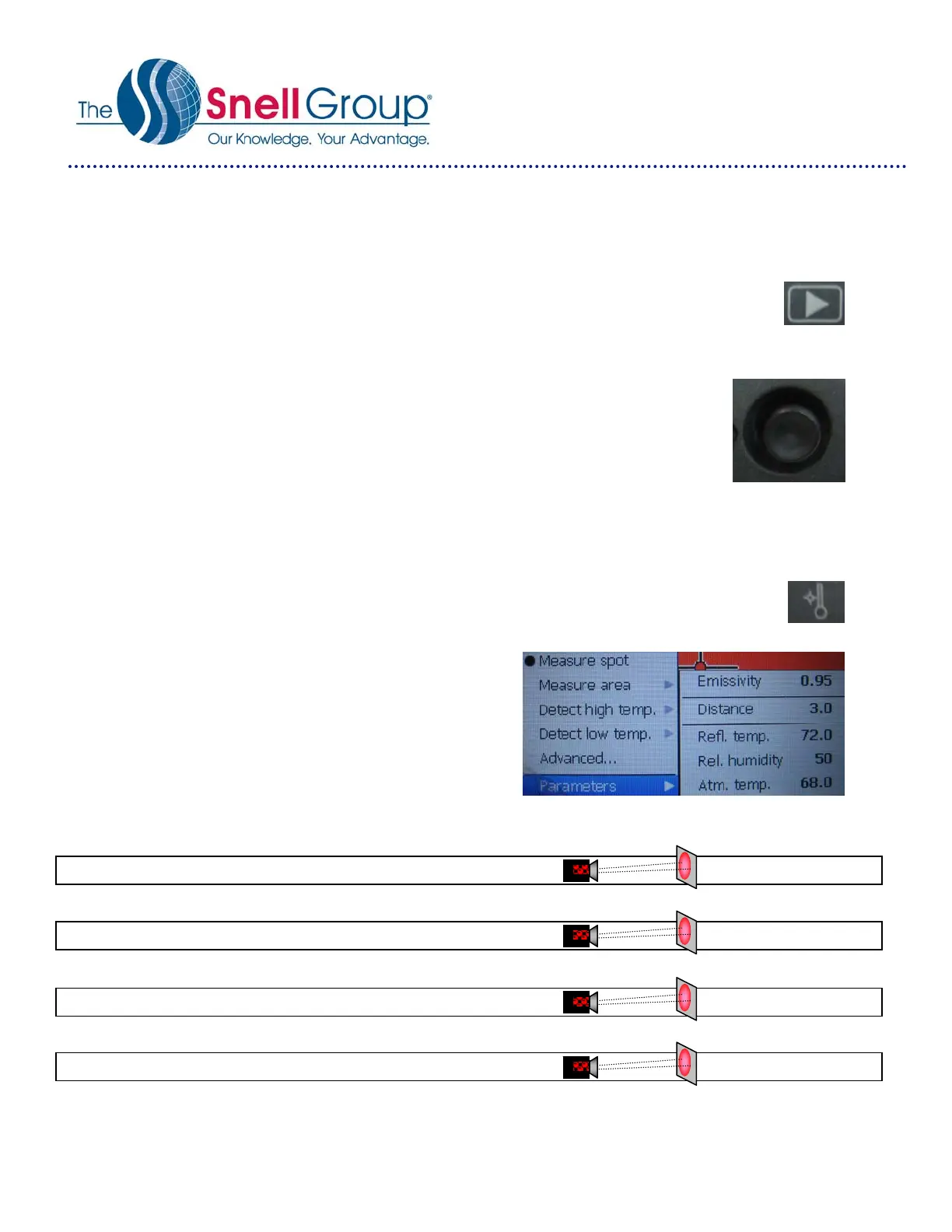

7. SAVE/ IMAGE:
 Push the save button briefly to save an image.
8. PREVIEW IMAGE:
 Push and hold the save button for more than one second to preview an image.
9. RECALL IMAGE:
 Press the Recall button (Fig.1)
 Move the Joystick left or right to view individual images.
 Move the Joystick up to view thumbnails.
 Use the Joystick to highlight and press in to select images to view.
10. PALETTE:
 Push the Setup button.
 Using the Joystick scroll down to highlight Palette then press in to select.
 Now move the Joystick up or down to highlight the desired palette, press in to select.
11. RANGE:
 Push the Setup button.
 Using the Joystick scroll down to highlight Range then press in to select.
 Now move the Joystick up or down to highlight the desired range, press in to select.
12. EMISSIVITY and REFLECTIVE TEMP.
 Push the Measure button (Fig.3).
 Move the joystick down to scroll down to highlight
Parameters, then press in to select (Fig.4).
 Use the joystick to highlight, select and change
either emissivity or reflection (thermal reflection)
T-360/T-400
T-200/T-250
B-360/B-400
B-200/B250
IFOV =1.4 mRad (Theoretical with 320x240 Detector and standard 25˚ lens) Detect 1in. target @ 60ft.
IFOV =2.8 mRad (Theoretical with 200x150 Detector and standard 25˚ lens) Detect 1in. target @ 30ft.
IFOV =2.1 mRad (Theoretical with 200x150 Detector and standard 25˚ lens) Detect 1in. target @ 40ft.
IFOV =1.36 mRad (Theoretical with 320x240 Detector and standard 25˚ lens) Detect 1in. target @ 61ft.
Fig. 1
Fig. 3
Fig. 4
Fig. 2
Up-Down
Left-Right and In
