FLIR T420 Quick Start

QuickStart: Flir T420, 430, 440, 450, 460
(Including bx & cs models)
© 2015 The Snell Group / 322 N. Main St./ Barre, VT 05641 / 800.636.9820 / www.thesnellgroup.com
Flir T420,430, 440, 450, 460 (including bx & cs models) Page 2
7. PREVIEW and SAVE/ IMAGE:
 To preview the image push the Auto Focus/Save button all the way down, this will freeze or preview the
image.
 At this time the image can be manually adjusted (as above) if needed.
 If this is not an image you wish to save press the Back button to exit without saving.
 To save the image press the Auto-Focus/Save button all the way down again.
8. RECALL IMAGE:
 Press the Recall button
 Move the Joystick left, right, up or down to select the image you wish to view.
 Press the Joystick to display the image.
9. PALETTE:
 Push the Joystick to Display the
Main Menu [FIG 1.].
 Use the Joystick to highlight
the Color Icon.
 Press the Joystick to display
the submenu.
 Highlight the desired palette,
press in on the Joystick to
select.
10. RANGE:
 Push the Joystick to Display the
Main Menu [FIG 1.].
 Use the Joystick to highlight
the Settings Icon.
 Press the Joystick to display
the submenu.
 Select Device Settings and
push Joystick.
 Select Set up Camera and
push Joystick.
 Select Camera Temperature Range and push Joystick.
 Select the desired range and push Joystick.
11. EMISSIVITY and REFLECTIVE TEMP:
 Push the Joystick to Display the Main Menu [FIG 1.].
 Use the Joystick to highlight the Parameters Icon.
 Press the Joystick to display the submenu.
 Select Emissivity or Reflective Temperature then press the Joystick to display a dialog box.
 Use the Joystick to change the selected parameter then press the Joystick to select and close.
T420, T430, T440, T450, T460, including bx and sc models

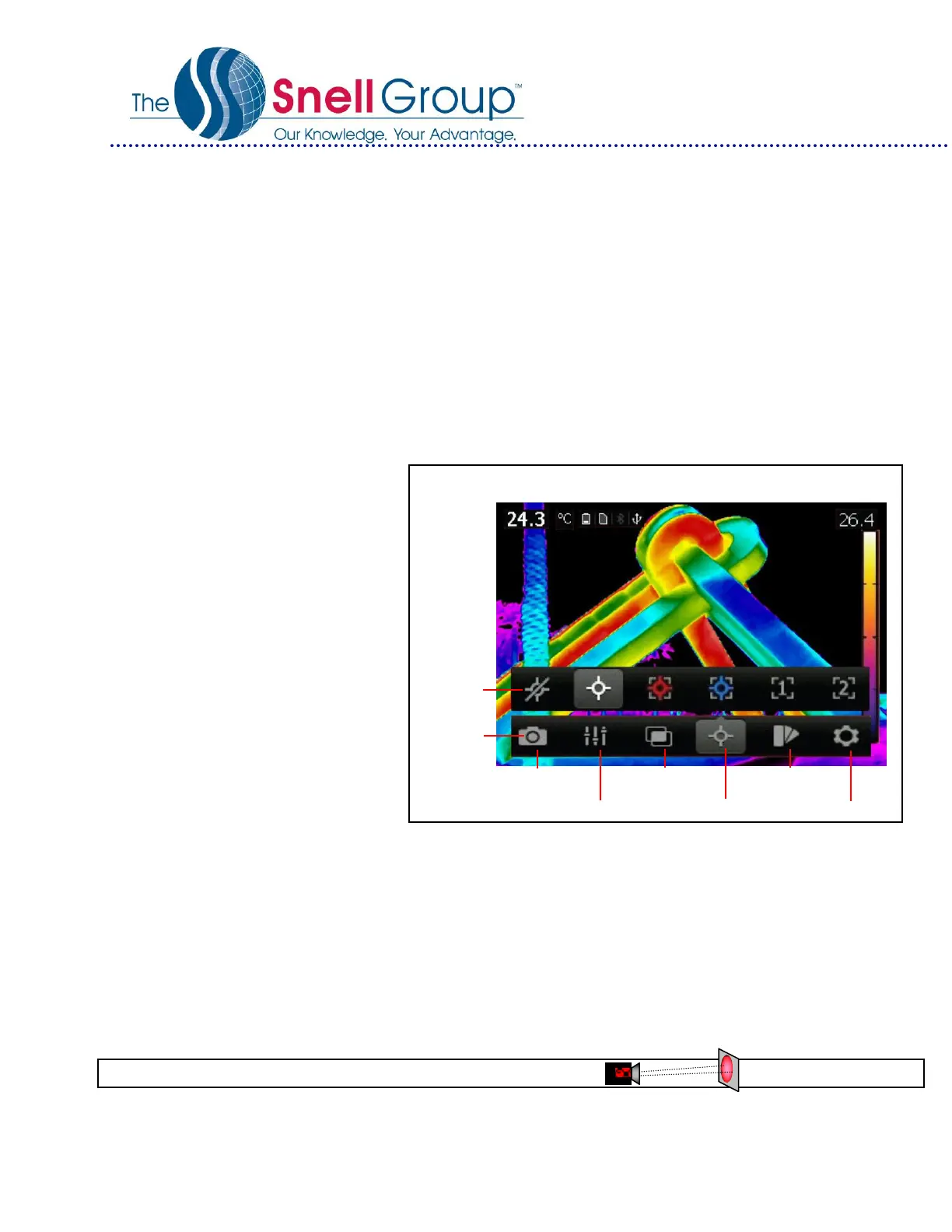

FIG 1. Push the Joystick or Touch the LCD Screen
to Display the Main Menu
Submenu
Main Menu
Recording
Mode
Parameters
Mode
Measurement
Color
Toolbar
Settings
IFOV =1.4 mRad (Theoretical with 320x240 Detector and standard 25˚ lens) Detect 1in. target @ 60ft.

FLIR T420 Specifications

General

Resolution	320 x 240 pixels
Field of View	25° x 19°
Spatial Resolution (IFOV)	1.36 mrad
Image Frequency	60 Hz
Laser Pointer	Yes
Operating Temperature Range	-15°C to +50°C
Storage Temperature Range	-40°C to +70°C
Image Storage	SD Card
Temperature Range	-20°C to +650°C
Focus	Manual
Display	3.5 in. LCD
Battery Life	Approx. 4 hours
Accuracy	±2°C or ±2%
Digital Camera	3.1 MP
Video Recording	Yes
File Format	JPEG
Spectral Range	7.5 - 13 µm
Minimum Focus Distance	0.4 m
Weight	0.88 kg
Interface	USB, Wi-Fi
Image Modes	Thermal, MSX
Thermal Sensitivity	< 0.045°C @ +30°C (+86°F) / 45 mK
